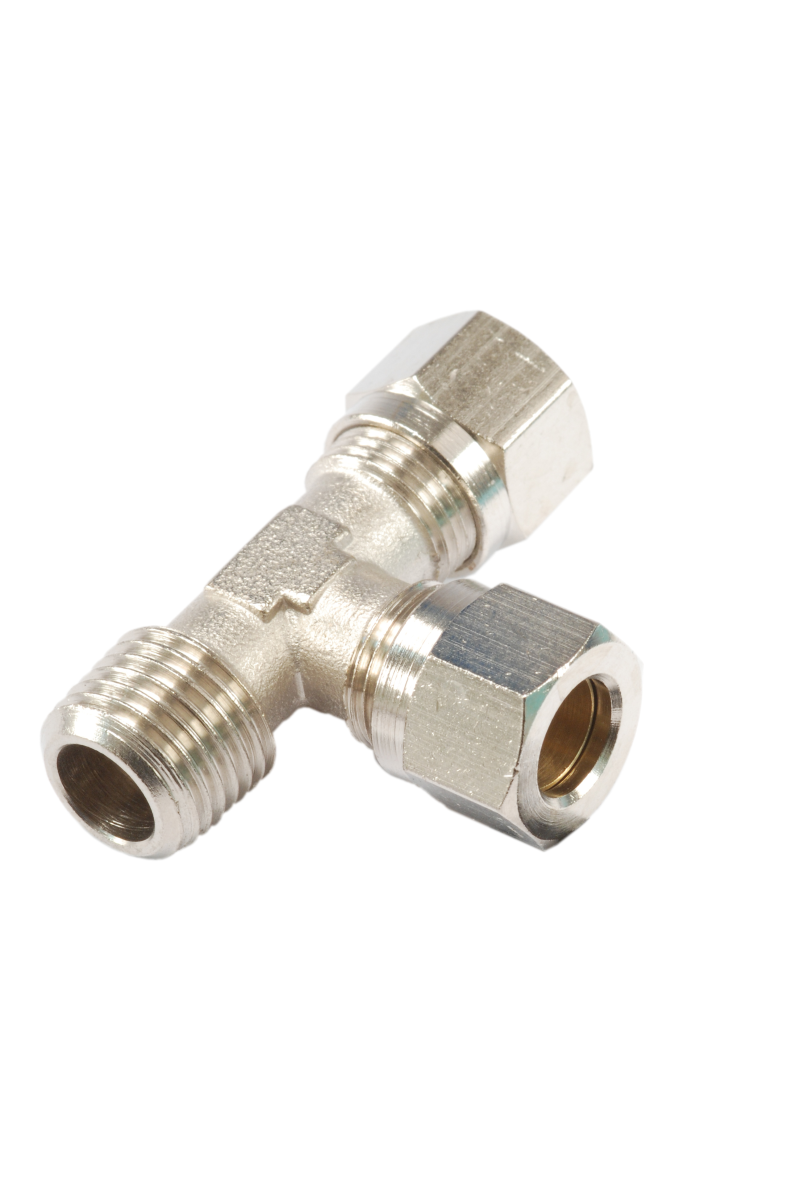

LATERAL MALE TEE
Cod: 2660

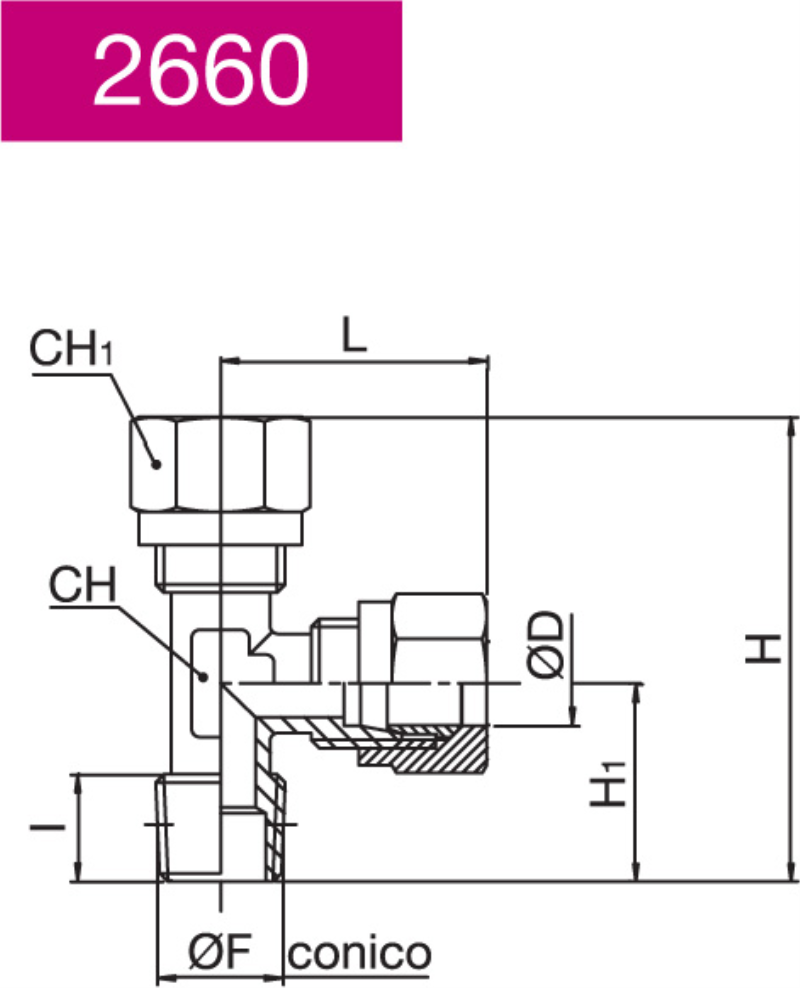

| Article | D | F | I | H | H1 | L | CH | CH1 |
|---|---|---|---|---|---|---|---|---|
| 26601090 | 4 | 1/8 | 8 | 37 | 16 | 21 | 9 | 10 |
| 26601220 | 6 | 1/8 | 8 | 39 | 16 | 23 | 9 | 10 |
| 26601230 | 6 | 1/4 | 11 | 44.5 | 20 | 24.5 | 11 | 12 |
| 26601280 | 8 | 1/8 | 8 | 41 | 17 | 24 | 11 | 14 |
| 26601290 | 8 | 1/4 | 11 | 44 | 20 | 24 | 11 | 14 |
| 26601300 | 8 | 3/8 | 11.5 | 51 | 24 | 27 | 13 | 14 |
| 26601350 | 10 | 1/4 | 11 | 55.5 | 23.5 | 32 | 13 | 19 |
| 26601360 | 10 | 3/8 | 11.5 | 56 | 24 | 32 | 13 | 19 |
| 26601400 | 12 | 3/8 | 11.5 | 60 | 25.5 | 34.5 | 15 | 22 |
| 26601410 | 12 | 1/2 | 14 | 63 | 28.5 | 34.5 | 15 | 22 |
| 26601420 | 14 | 1/2 | 14 | 68 | 30 | 38 | 17 | 27 |
| 26601430 | 15 | 1/2 | 14 | 68 | 30 | 38 | 17 | 27 |
| 26601450 | 16 | 1/2 | 14 | 71 | 31.5 | 39.5 | 19 | 30 |
| 26601470 | 18 | 1/2 | 14 | 78 | 34 | 44 | 22 | 32 |
