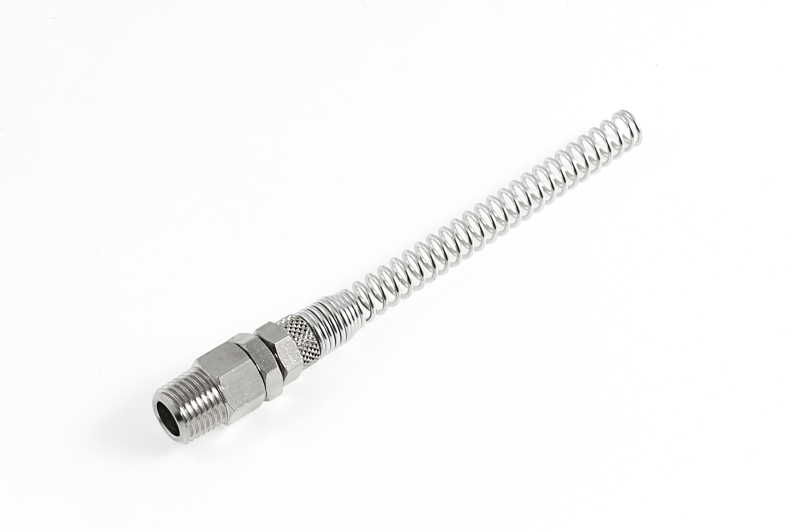

SWIVEL STRAIGHT MALE CONICAL WITH SPRING
Cod: 2950

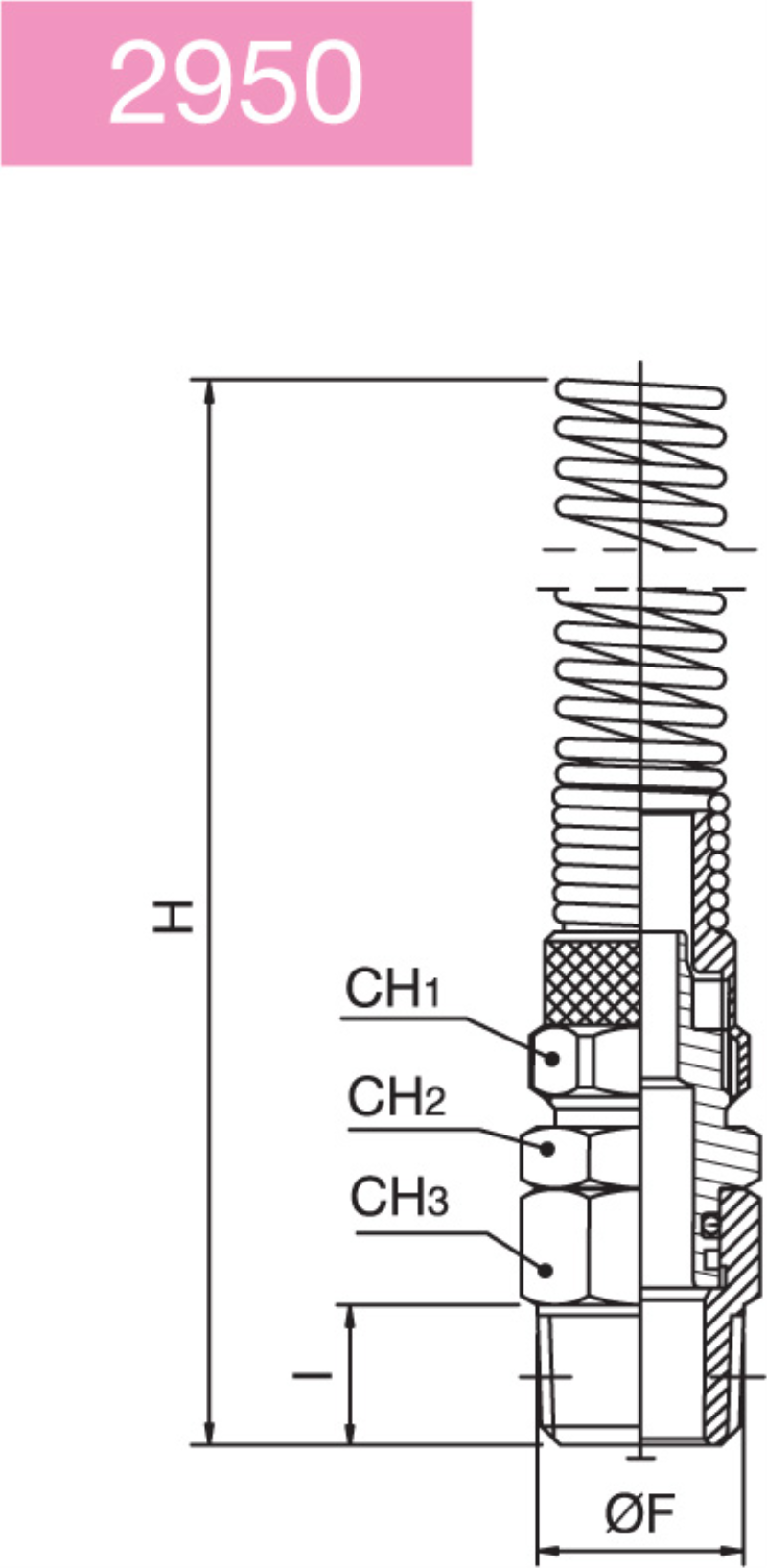

| Article | TUBE | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 29501220 | 6/4 | 1/8 | 8 | 110 | 12 | 12 | 12 |
| 29501230 | 6/4 | 1/4 | 11 | 113 | 12 | 14 | 14 |
| 29505600 | 8/5 | 1/8 | 8 | 110 | 14 | 12 | 12 |
| 29505610 | 8/5 | 1/4 | 11 | 113 | 14 | 14 | 14 |
| 29501280 | 8/6 | 1/8 | 8 | 110 | 14 | 12 | 12 |
| 29501290 | 8/6 | 1/4 | 11 | 113 | 14 | 14 | 14 |
| 29505800 | 10/6.5 | 1/4 | 11 | 117 | 16 | 14 | 14 |
| 29501350 | 10/8 | 1/4 | 11 | 117 | 16 | 14 | 14 |
| 29505900 | 12/8 | 3/8 | 11.5 | 126 | 18 | 17 | 17 |
| 29501400 | 12/10 | 3/8 | 11.5 | 126 | 18 | 17 | 17 |
| Temperature min./max. | -20°C | +100°C |
