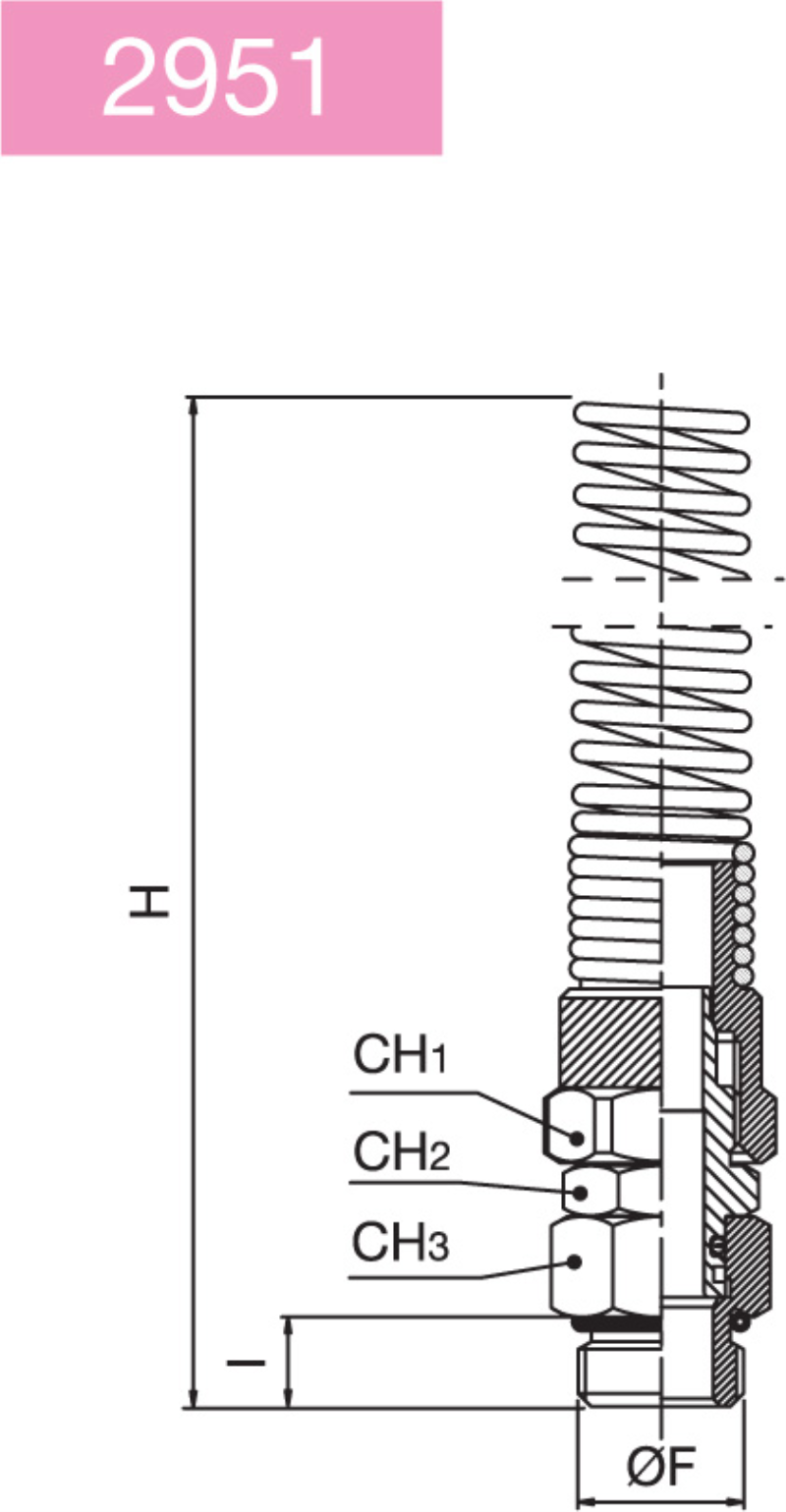

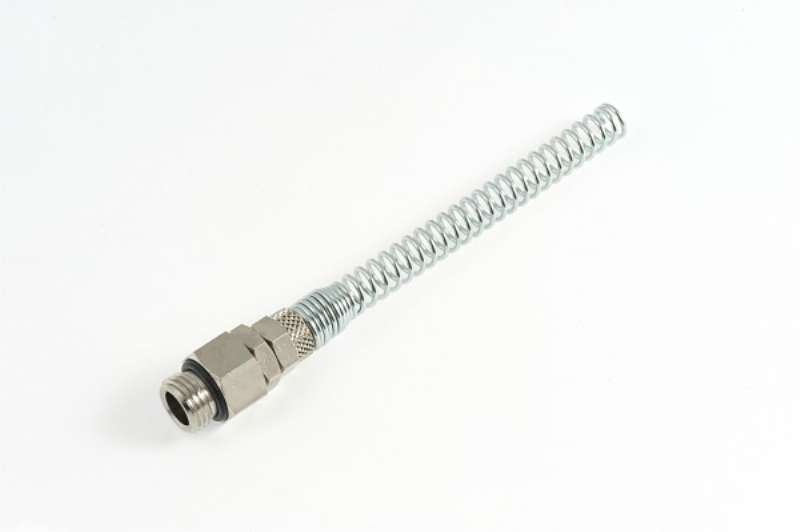

SWIVEL STRAIGHT MALE CYLINDRICAL WITH O-RING AND SPRING
Cod: 2951
| Article | TUBE | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 29511220 | 6/4 | 1/8 | 6,5 | 106 | 12 | 12 | 13 |
| 29511230 | 6/4 | 1/4 | 8 | 108 | 12 | 14 | 16 |
| 29515600 | 8/5 | 1/8 | 6,5 | 106 | 14 | 12 | 13 |
| 29515610 | 8/5 | 1/4 | 8 | 108 | 14 | 14 | 16 |
| 29511280 | 8/6 | 1/8 | 6,5 | 106 | 14 | 12 | 13 |
| 29511290 | 8/6 | 1/4 | 8 | 108 | 14 | 14 | 16 |
| 29515800 | 10/6.5 | 1/4 | 8 | 112 | 16 | 14 | 16 |
| 29511350 | 10/8 | 1/4 | 8 | 112 | 16 | 14 | 16 |
| 29515900 | 12/8 | 3/8 | 9 | 123 | 18 | 17 | 19 |
| 29511400 | 12/10 | 3/8 | 9 | 123 | 18 | 17 | 19 |
| WITHOUT O-RING | FINAL CODE: 1 | ||||||
| Temperature min./max. | -20°C | +100°C |
