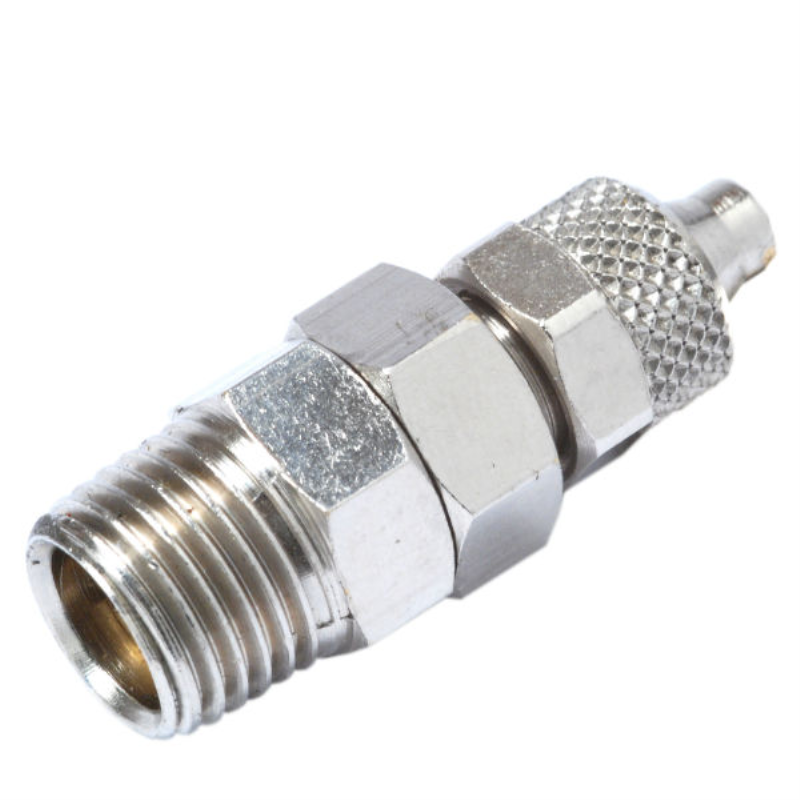

SWIVEL STRAIGHT MALE CONICAL
Cod: 3008

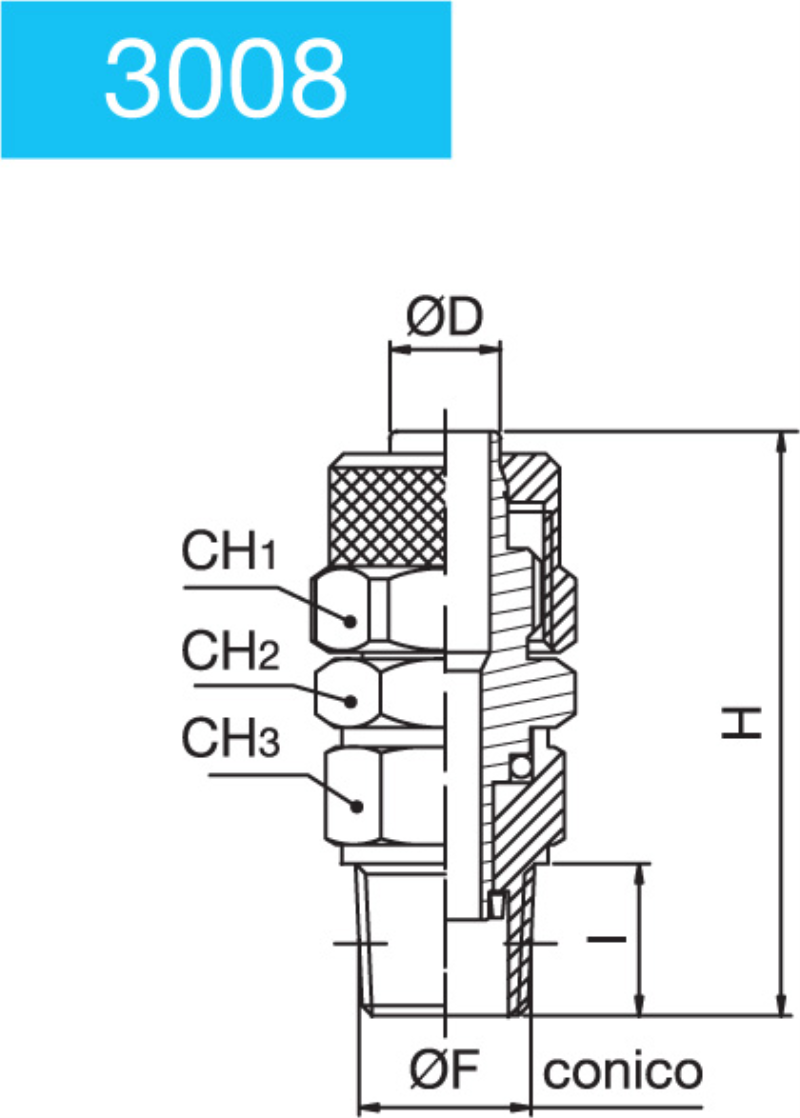

| Article | D | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 30081220 | 6/4 | 1/8 | 8 | 37 | 12 | 12 | 12 |
| 30081230 | 6/4 | 1/4 | 11 | 40 | 12 | 14 | 14 |
| 30085600 | 8/5 | 1/8 | 8 | 36 | 14 | 12 | 12 |
| 30085610 | 8/5 | 1/4 | 11 | 39 | 14 | 14 | 14 |
| 30081280 | 8/6 | 1/8 | 8 | 37 | 14 | 12 | 12 |
| 30081290 | 8/6 | 1/4 | 11 | 40 | 14 | 14 | 14 |
| 30085800 | 10/6.5 | 1/4 | 11 | 41 | 16 | 14 | 14 |
| 30081350 | 10/8 | 1/4 | 11 | 42 | 16 | 14 | 14 |
| 30085900 | 12/8 | 3/8 | 11.5 | 44 | 18 | 17 | 17 |
| 30081400 | 12/10 | 3/8 | 11.5 | 44 | 18 | 17 | 17 |
| Temperature min./max. | -20°C | +100°C |
