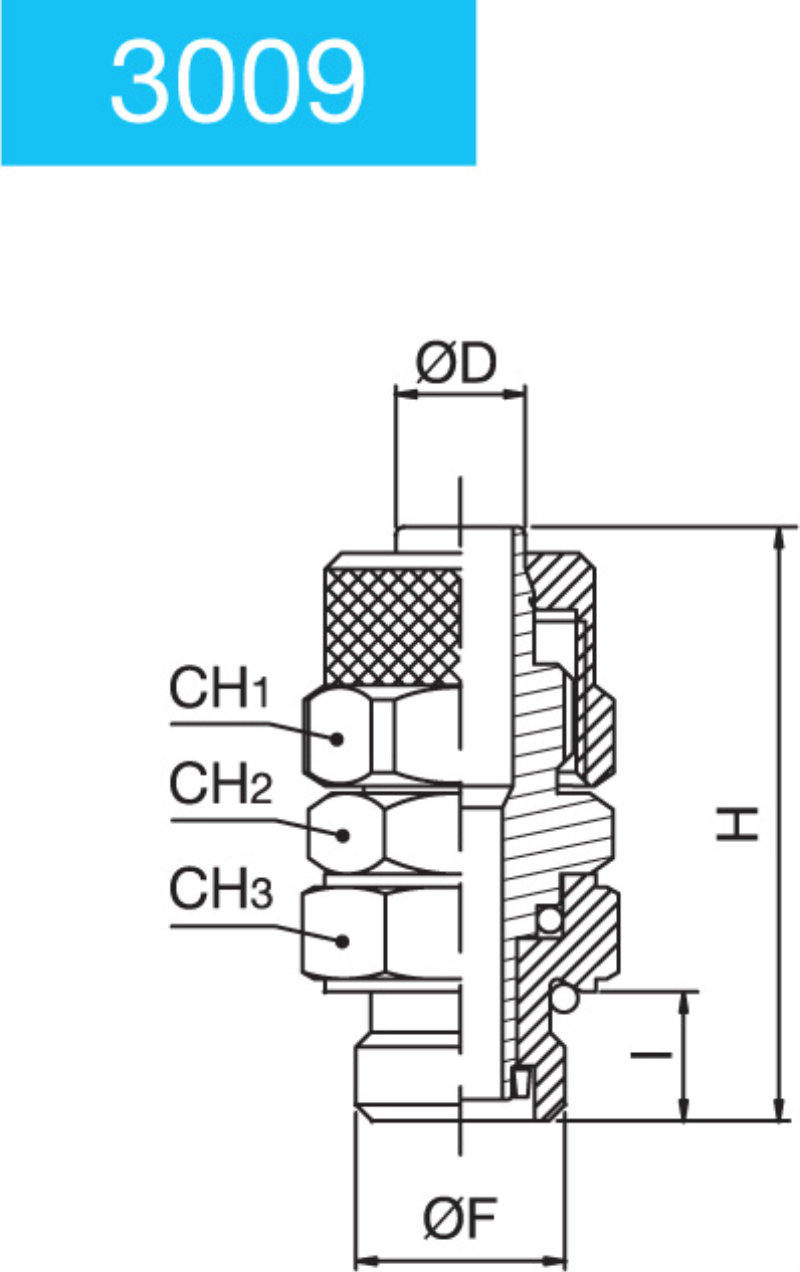

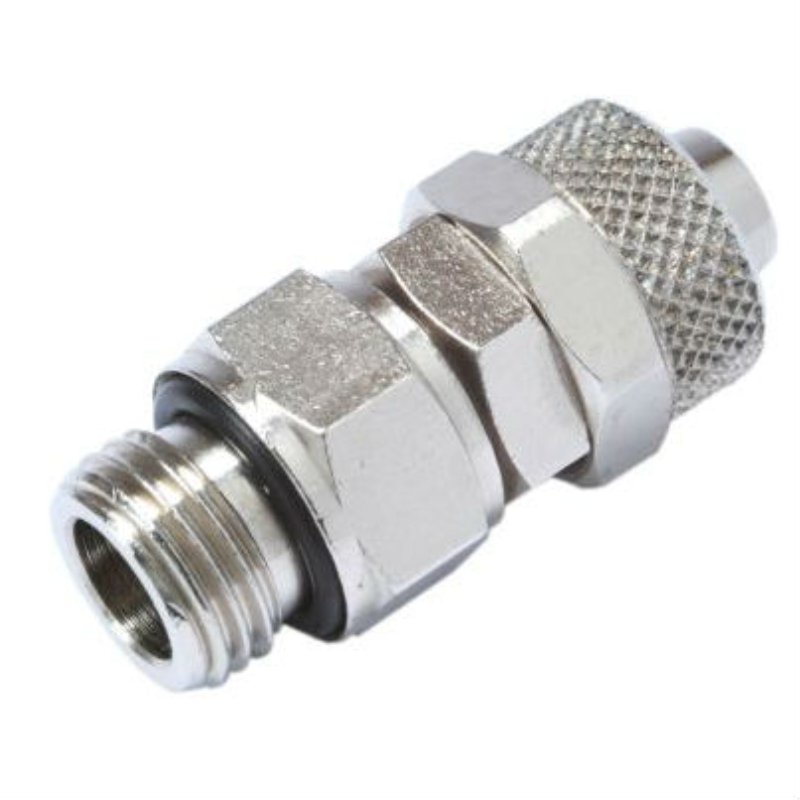

SWIVEL STRAIGHT MALE CYL. WITH O-RING
Cod: 3009
| Article | D | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 30091220 | 6/4 | 1/8 | 6,5 | 36 | 12 | 12 | 13 |
| 30091230 | 6/4 | 1/4 | 8 | 38 | 12 | 14 | 16 |
| 30095600 | 8/5 | 1/8 | 6,5 | 35 | 14 | 12 | 13 |
| 30095610 | 8/5 | 1/4 | 8 | 36.5 | 14 | 14 | 16 |
| 30091280 | 8/6 | 1/8 | 6,5 | 36 | 14 | 12 | 13 |
| 30091290 | 8/6 | 1/4 | 8 | 37.5 | 14 | 14 | 16 |
| 30095800 | 10/6.5 | 1/4 | 8 | 39 | 16 | 14 | 16 |
| 30091350 | 10/8 | 1/4 | 8 | 39 | 16 | 14 | 16 |
| 30095900 | 12/8 | 3/8 | 9 | 42 | 18 | 17 | 19 |
| 30091400 | 12/10 | 3/8 | 9 | 42 | 18 | 17 | 19 |
| WITHOUT O-RING | FINAL CODE: 1 | ||||||
| Temperature min./max. | -20°C | +100°C |
