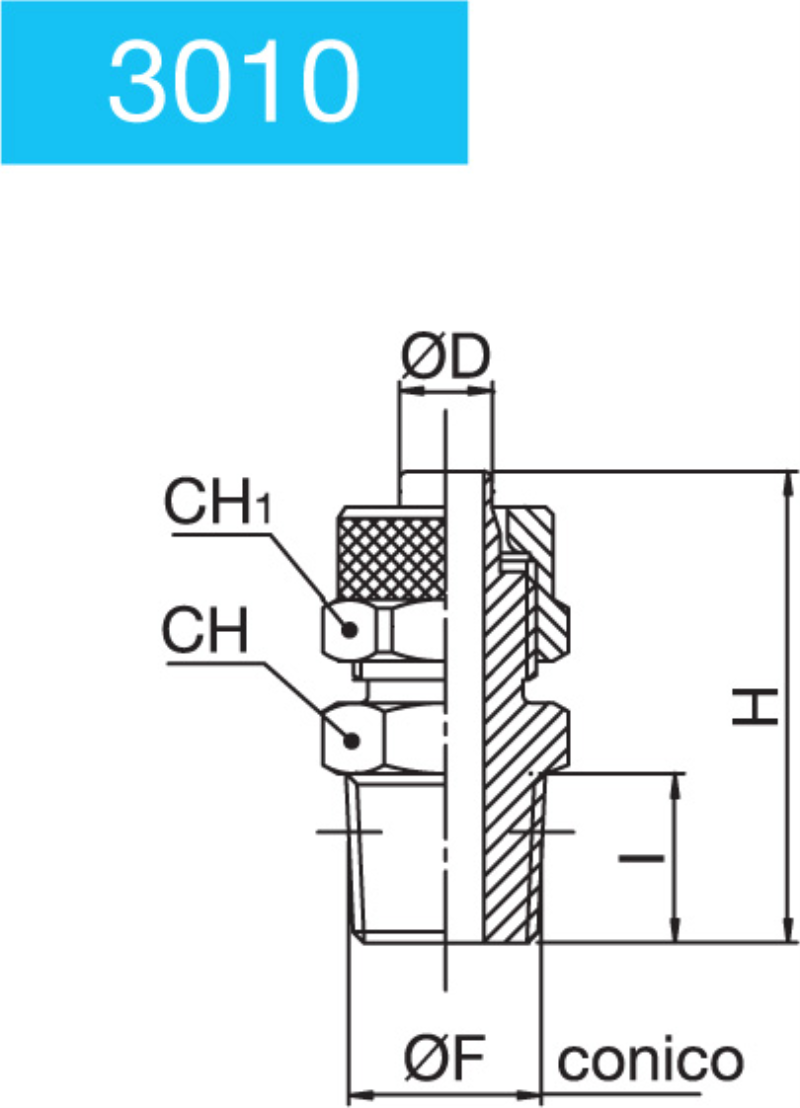

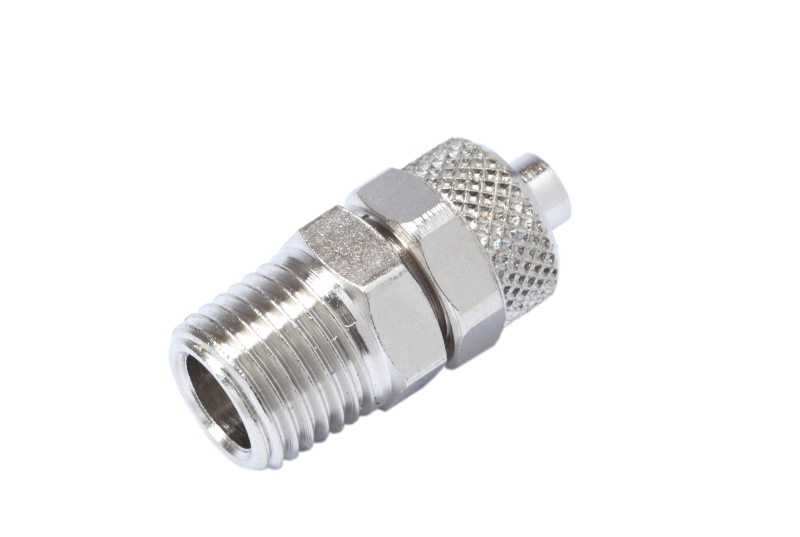

STRAIGHT MALE CONICAL
Cod: 3010
| Article | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30101110 | 4/2.7 | 1/8 | 8 | 23.8 | 12 | 8 |
| 30101140 | 5/3 | 1/8 | 8 | 25 | 12 | 8 |
| 30101220 | 6/4 | 1/8 | 8 | 27.5 | 12 | 12 |
| 30101230 | 6/4 | 1/4 | 11 | 31 | 14 | 12 |
| 30101240 | 6/4 | 3/8 | 11.5 | 31.5 | 17 | 12 |
| 30101280 | 8/6 | 1/8 | 8 | 27.5 | 12 | 14 |
| 30101290 | 8/6 | 1/4 | 11 | 31 | 14 | 14 |
| 30101300 | 8/6 | 3/8 | 11.5 | 31.5 | 17 | 14 |
| 30101310 | 8/6 | 1/2 | 14 | 34.5 | 22 | 14 |
| 30101340 | 10/8 | 1/8 | 8 | 29.5 | 14 | 16 |
| 30101350 | 10/8 | 1/4 | 11 | 32.5 | 14 | 16 |
| 30101360 | 10/8 | 3/8 | 11.5 | 33 | 17 | 16 |
| 30101370 | 10/8 | 1/2 | 14 | 36 | 22 | 16 |
| 30101400 | 12/10 | 3/8 | 11.5 | 34.5 | 17 | 18 |
| 30101410 | 12/10 | 1/2 | 14 | 37.5 | 22 | 18 |
| 30101440 | 15/12.5 | 1/2 | 14 | 39.5 | 22 | 22 |
