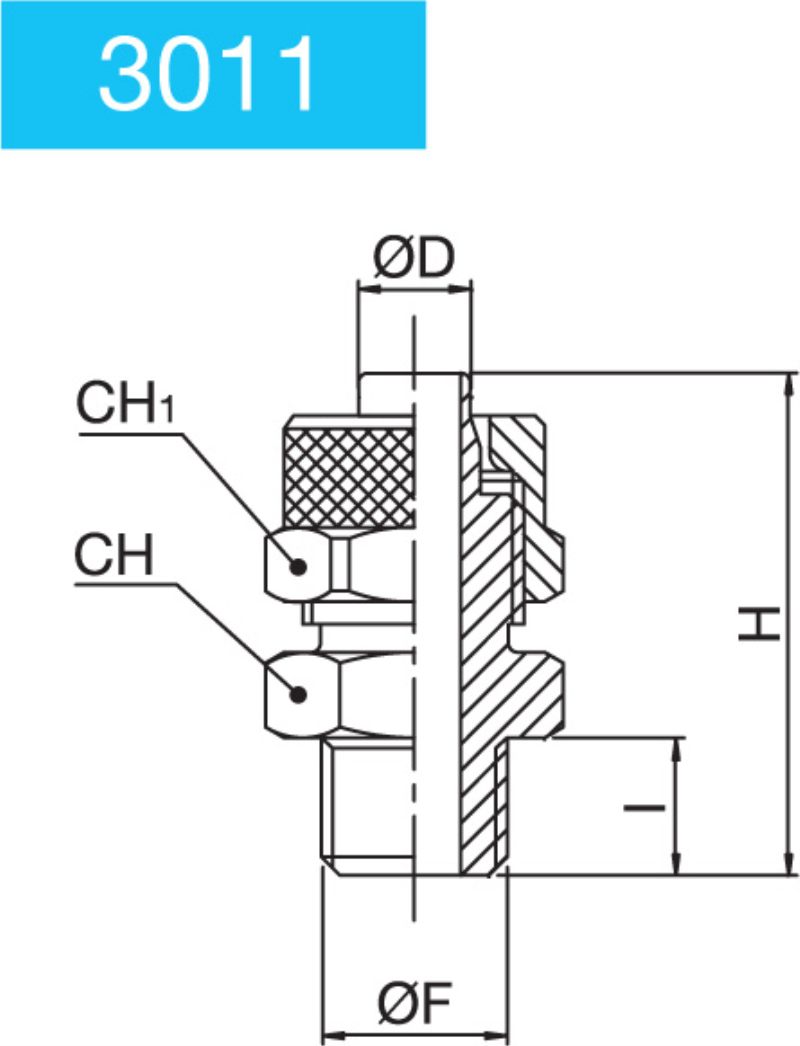

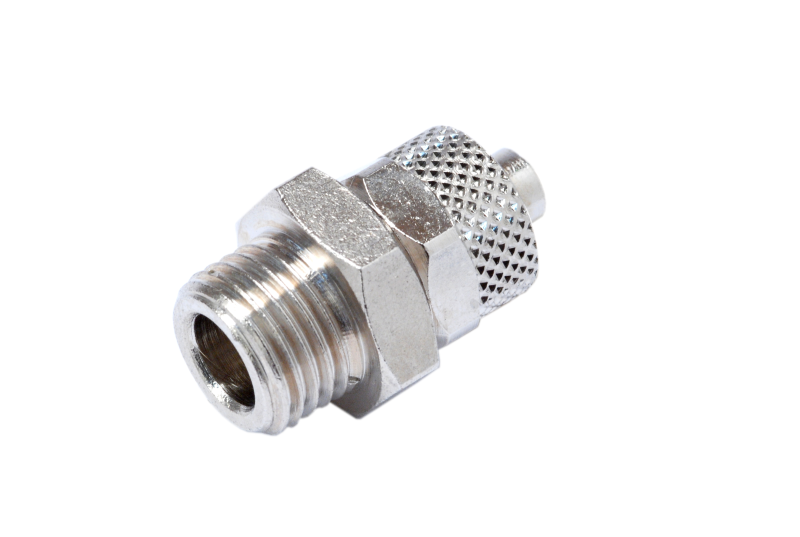

STRAIGHT MALE CYLINDRICAL
Cod: 3011
| Article | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30111140 | 5/3 | 1/8 | 6 | 23 | 14 | 8 |
| 30111220 | 6/4 | 1/8 | 6 | 25.5 | 14 | 12 |
| 30111230 | 6/4 | 1/4 | 8 | 28 | 17 | 12 |
| 30111240 | 6/4 | 3/8 | 9 | 29 | 19 | 12 |
| 30111280 | 8/6 | 1/8 | 6 | 25.5 | 14 | 14 |
| 30111290 | 8/6 | 1/4 | 8 | 28 | 17 | 14 |
| 30111300 | 8/6 | 3/8 | 9 | 29 | 19 | 14 |
| 30111340 | 10/8 | 1/8 | 6 | 27.5 | 14 | 16 |
| 30111350 | 10/8 | 1/4 | 8 | 29.5 | 17 | 16 |
| 30111360 | 10/8 | 3/8 | 9 | 30.5 | 19 | 16 |
| 30111370 | 10/8 | 1/2 | 10 | 32 | 24 | 16 |
| 30111110 | 4/2.7 | 1/8 | 6 | 21.8 | 13 | 8 |
| 30111400 | 12/10 | 3/8 | 9 | 32 | 19 | 18 |
| 30111410 | 12/10 | 1/2 | 10 | 33.5 | 24 | 18 |
| 30111440 | 15/12.5 | 1/2 | 10 | 33.5 | 24 | 22 |
