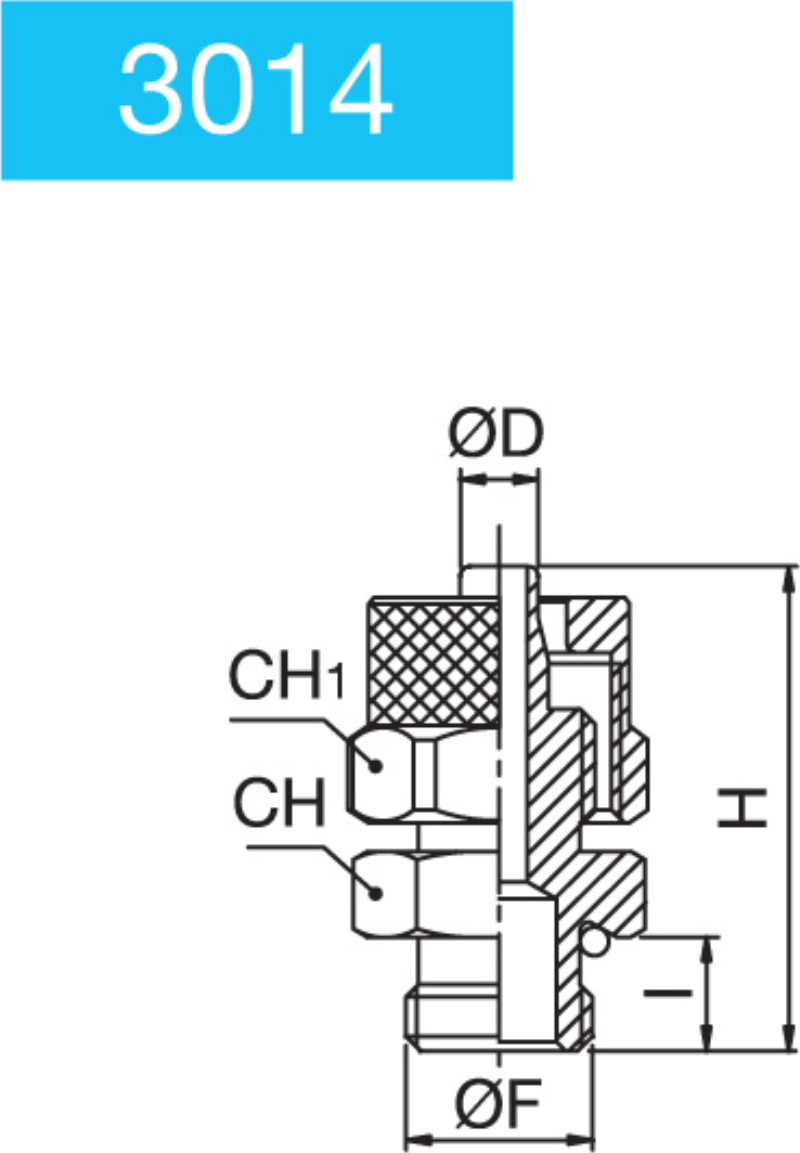

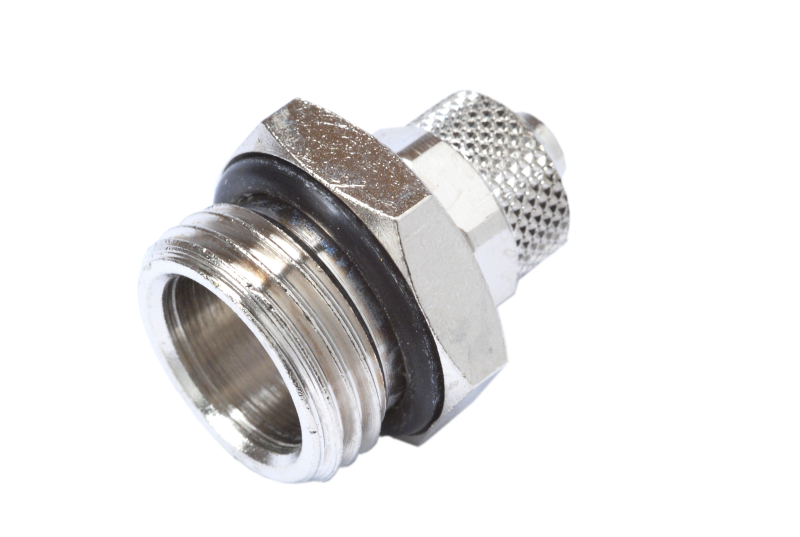

STRAIGHT MALE METRIC WITH O-RING
Cod: 3014
| Article | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30141070 | 4/2.7 | M5 | 4 | 20 | 8 | 8 |
| 30141080 | 4/2.7 | M6 | 4 | 20 | 8 | 8 |
| 30141120 | 5/3 | M5 | 4 | 20.5 | 8 | 8 |
| 30141130 | 5/3 | M6 | 4 | 20.5 | 8 | 8 |
| 30141170 | 6/4 | M5 | 4 | 21 | 8 | 9 |
| 30141180 | 6/4 | M6 | 4 | 21 | 8 | 9 |
| 30141190 | 6/4 | M12X1 | 8 | 28 | 15 | 12 |
| 30141200 | 6/4 | M12X1.25 | 8 | 28 | 15 | 12 |
| 30141210 | 6/4 | M12X1.5 | 8 | 28 | 15 | 12 |
| 30141320 | 8/6 | M12X1.25 | 8 | 28 | 17 | 14 |
| 30141330 | 8/6 | M12X1.5 | 8 | 28 | 17 | 14 |
| Temperature min./max. | -20°C | +100°C |
