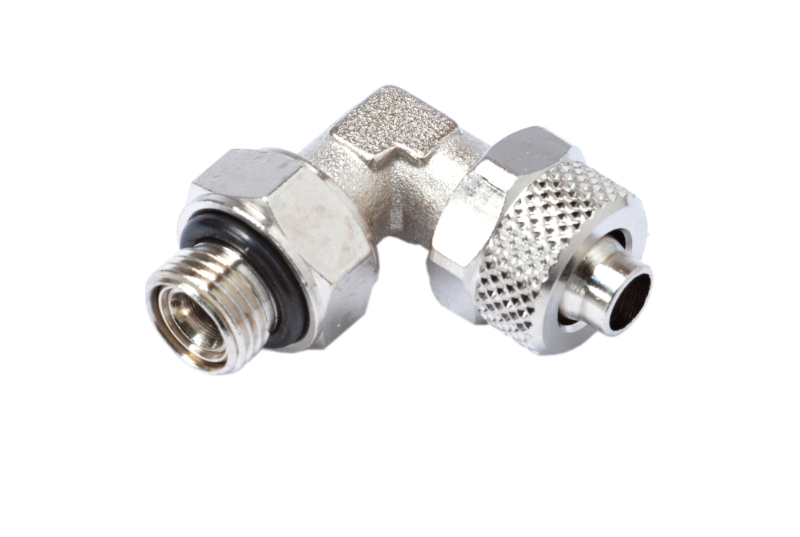

ELBOW SWIVEL MALE CYLINDRICAL WITH O-RING

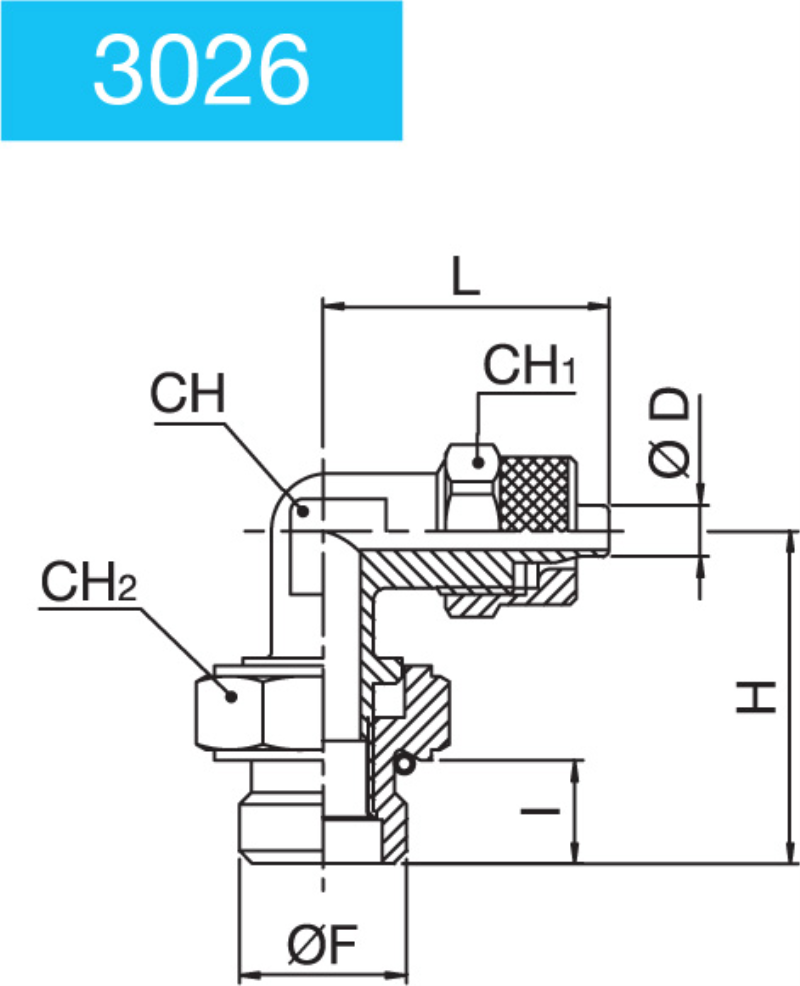

Cod: 3026
| Article | D | F | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 30261110 | 4/2.7 | 1/8 | 6.5 | 23 | 20.5 | 8 | 12 | 14 |
| 30261220 | 6/4 | 1/8 | 6.5 | 23 | 22.5 | 8 | 12 | 14 |
| 30261230 | 6/4 | 1/4 | 8 | 25 | 23 | 10 | 12 | 17 |
| 30261280 | 8/6 | 1/8 | 6.5 | 22 | 23 | 10 | 14 | 14 |
| 30261290 | 8/6 | 1/4 | 8 | 25 | 23 | 10 | 14 | 17 |
| 30261350 | 10/8 | 1/4 | 8 | 26 | 25.5 | 11 | 16 | 17 |
| 30261111 | 4/2.7 | 1/8 | WITHOUT | O-RING | ||||
| 30261221 | 6/4 | 1/8 | WITHOUT | O-RING | ||||
| 30261231 | 6/4 | 1/4 | WITHOUT | O-RING | ||||
| 30261281 | 8/6 | 1/8 | WITHOUT | O-RING | ||||
| 30261291 | 8/6 | 1/4 | WITHOUT | O-RING | ||||
| 30261351 | 10/8 | 1/4 | WITHOUT | O-RING | ||||
| Temperature min./max. | -20°C | +100°C |
