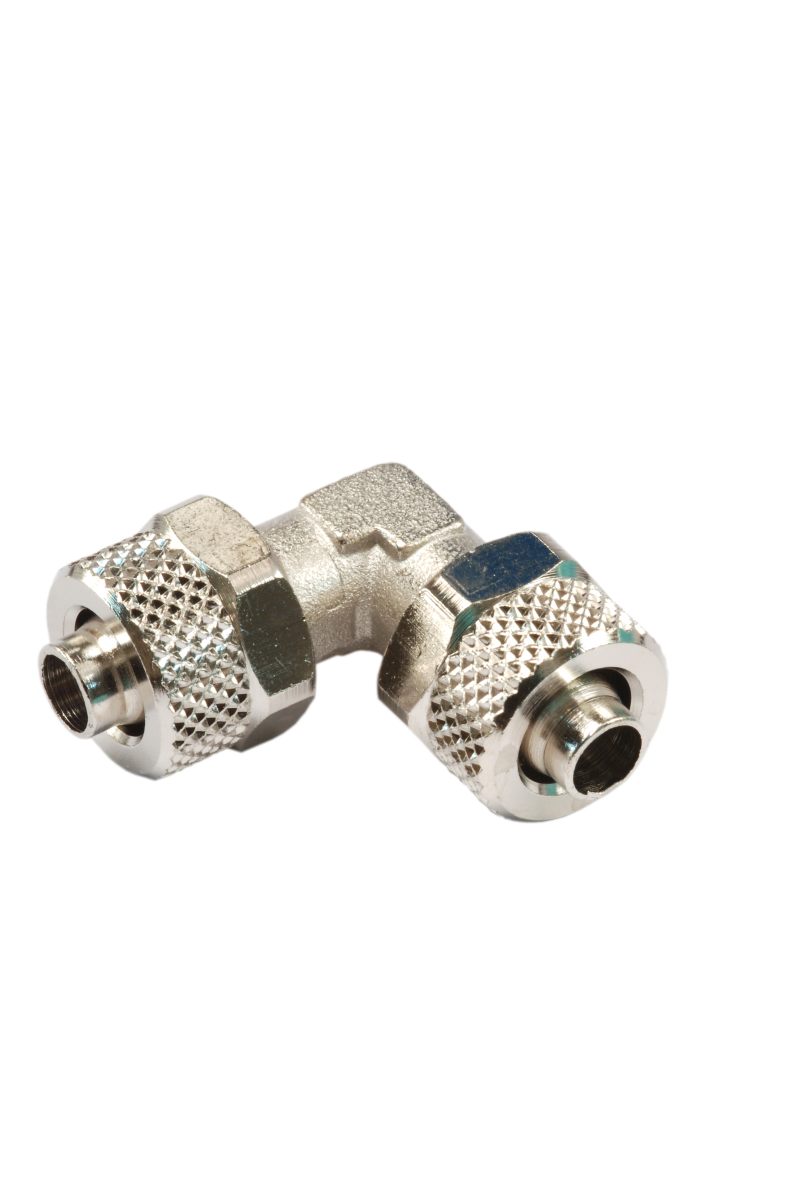

ELBOW CONNECTOR
Cod: 3120
| Article | D | D1 | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|
| 31206700 | 4/2.7 | 4/2.7 | 20.3 | 20.3 | 8 | 8 | 8 |
| 31207000 | 5/3 | 5/3 | 21.5 | 21.5 | 8 | 8 | 8 |
| 31207600 | 6/4 | 6/4 | 22.5 | 22.5 | 8 | 12 | 12 |
| 31208400 | 8/6 | 8/6 | 22.5 | 22.5 | 10 | 14 | 14 |
| 31208700 | 8/6 | 6/4 | 22.5 | 22.5 | 10 | 14 | 12 |
| 31209100 | 10/8 | 10/8 | 25.5 | 25.5 | 11 | 16 | 16 |
| 31209800 | 12/10 | 12/10 | 30 | 30 | 14 | 18 | 18 |
| 31209900 | 15/12.5 | 15/12.5 | 34 | 34 | 17 | 22 | 22 |
