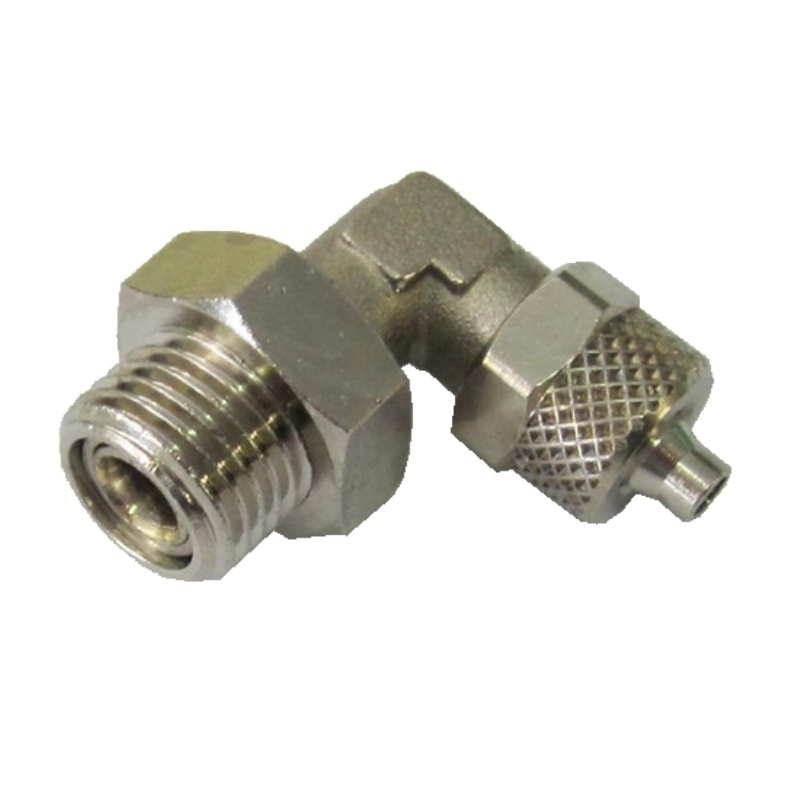

SWIVEL ELBOW MALE CYLINDRICAL
Cod: 3026-1

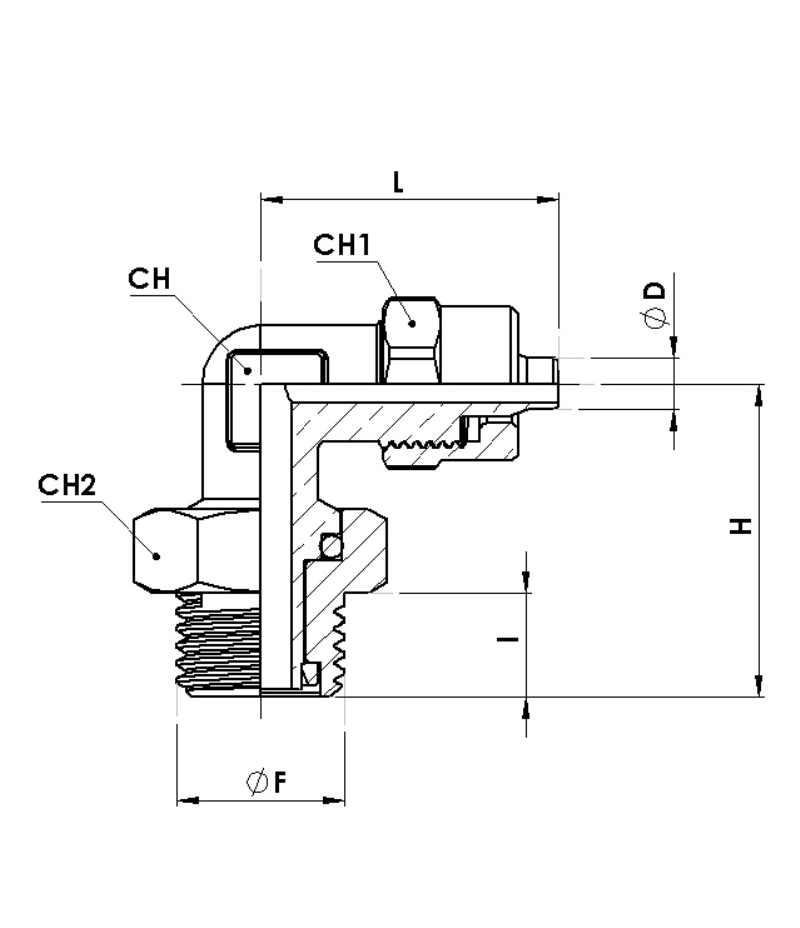

| Article | D | F | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 30261111 | 4/2.7 | 1/8 | 6 | 23 | 20.5 | 8 | 8 | 14 |
| 30261221 | 6/4 | 1/8 | 6 | 23 | 22.5 | 8 | 12 | 14 |
| 30261231 | 6/4 | 1/4 | 8 | 25 | 23 | 10 | 12 | 17 |
| 30261281 | 8/6 | 1/8 | 6 | 22 | 23 | 10 | 14 | 14 |
| 30261291 | 8/6 | 1/4 | 8 | 25 | 23 | 10 | 14 | 17 |
| 30261351 | 10/8 | 1/4 | 8 | 26 | 25.5 | 11 | 16 | 17 |
| 30261003 | 8/6 | M10x1 | 14 | |||||
| 30261004 | 8/6 | M12X1 | 14 | |||||
| 30261005 | 8/6 | M12X1.25 | 14 | |||||
| Temperature min./max. | -20°C | +100°C |
