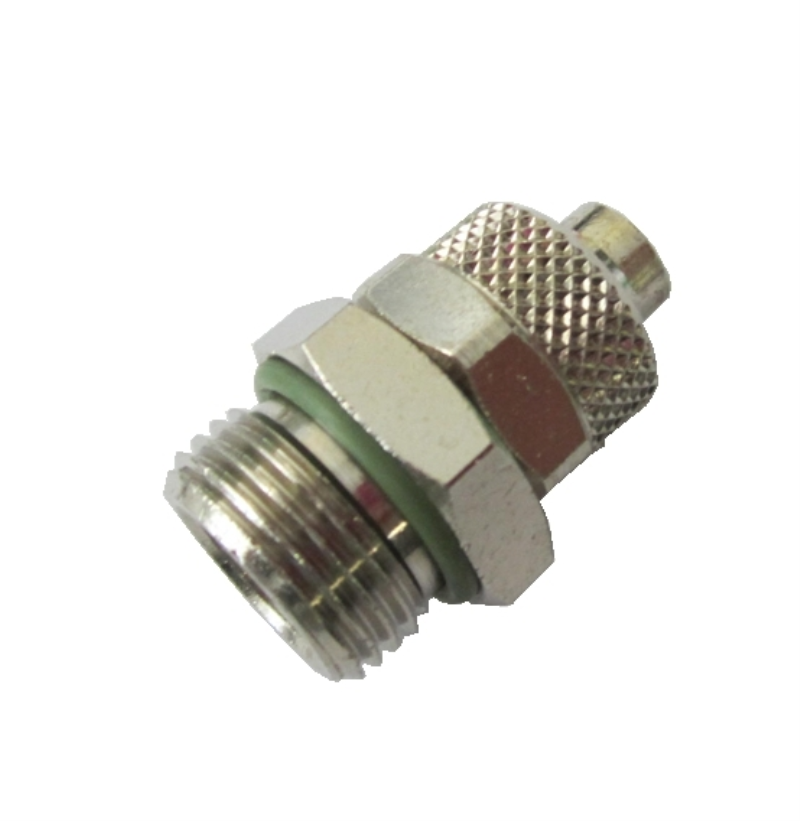

STRAIGHT MALE CYLINDRICAL WITH O-RING VITON
Cod: 3013V

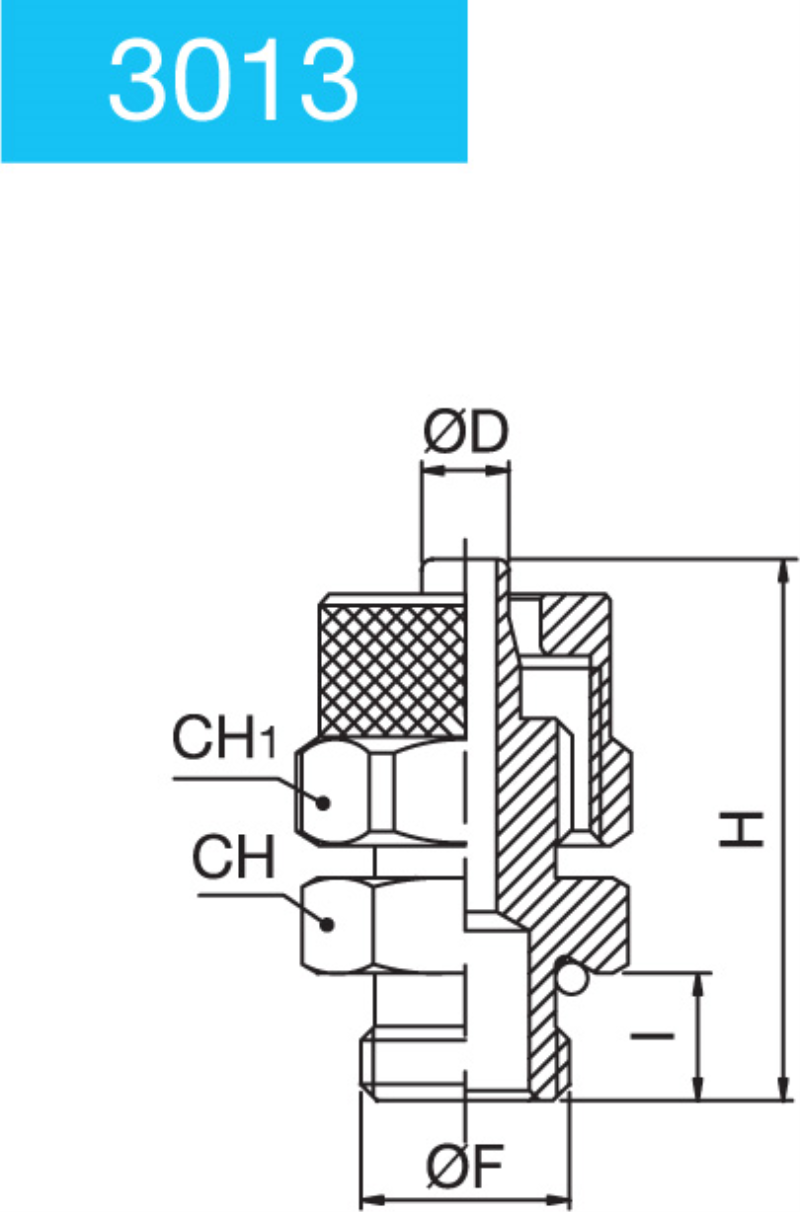

| Article | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30131110V | 4/2.7 | 1/8 | 6 | 21.8 | 13 | 8 |
| 30131140V | 5/3 | 1/8 | 6 | 23 | 13 | 8 |
| 30131220V | 6/4 | 1/8 | 6 | 25.5 | 13 | 12 |
| 30131230V | 6/4 | 1/4 | 8 | 28 | 16 | 12 |
| 30131240V | 6/4 | 3/8 | 9 | 29 | 19 | 12 |
| 30131250V | 6/4 | 1/2 | 10 | 30.5 | 24 | 12 |
| 30131280V | 8/6 | 1/8 | 6 | 26 | 14 | 14 |
| 30131290V | 8/6 | 1/4 | 8 | 28 | 16 | 14 |
| 30131300V | 8/6 | 3/8 | 9 | 29 | 19 | 14 |
| 30131310V | 8/6 | 1/2 | 10 | 30.5 | 24 | 14 |
| 30131340V | 10/8 | 1/8 | 6 | 28 | 14 | 16 |
| 30131350V | 10/8 | 1/4 | 8 | 29.5 | 16 | 16 |
| 30131360V | 10/8 | 3/8 | 9 | 30.5 | 19 | 16 |
| 30131370V | 10/8 | 1/2 | 10 | 32 | 24 | 16 |
| 30131400V | 12/10 | 3/8 | 9 | 32 | 19 | 18 |
| 30131410V | 12/10 | 1/2 | 10 | 33.5 | 24 | 18 |
| 30131440V | 15/12.5 | 1/2 | 10 | 35.5 | 24 | 22 |
| Temperature min./max. | -15°C | +200°C |
