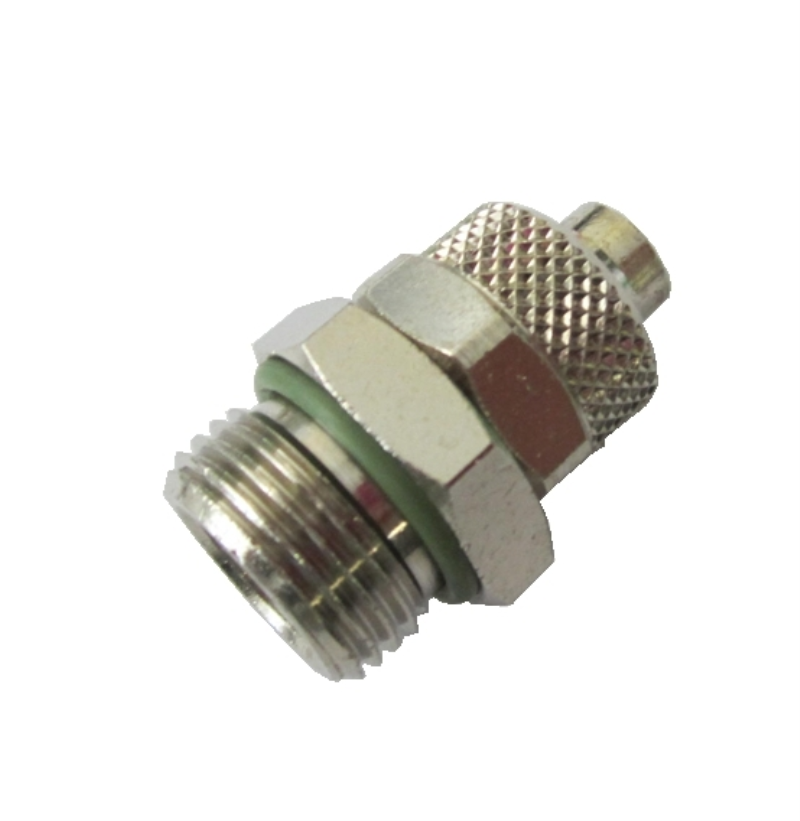

STRAIGHT MALE METRIC WITH O-RING VITON
Cod: 3014V

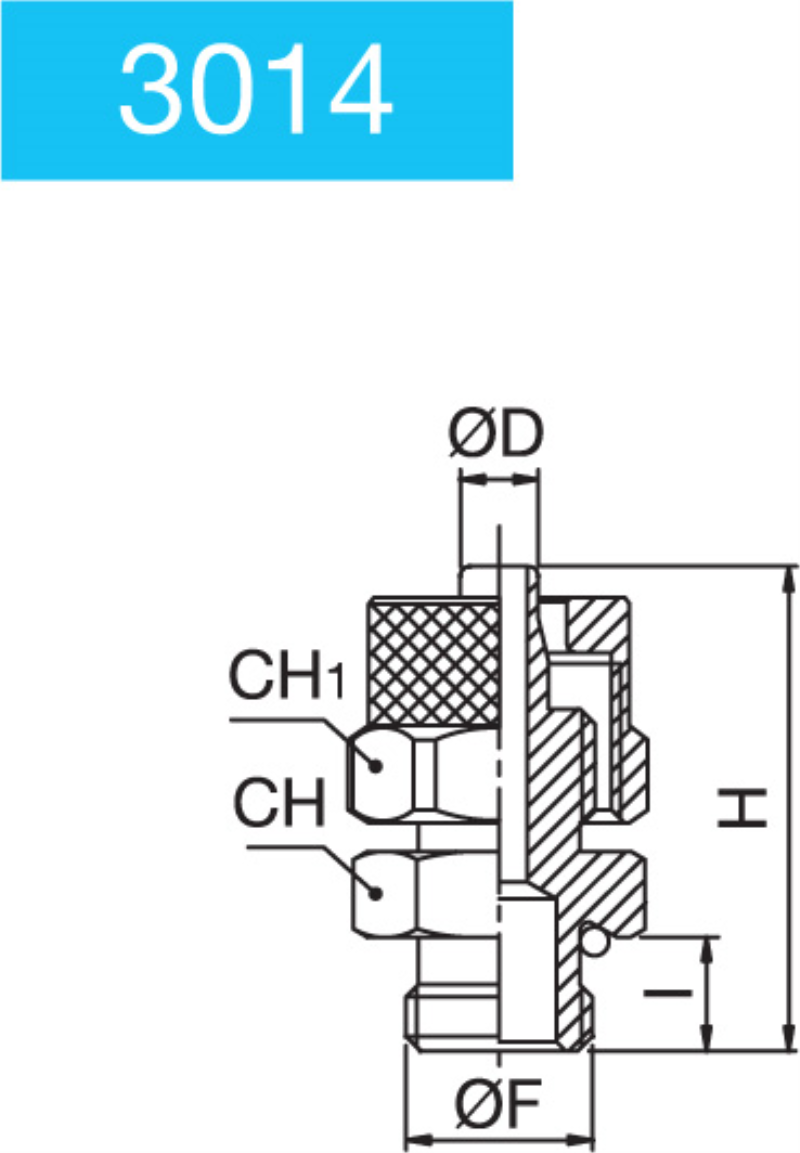

| Article | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30141070V | 4/2.7 | M5 | 4 | 20 | 8 | 8 |
| 30141080V | 4/2.7 | M6 | 4 | 20 | 8 | 8 |
| 30141120V | 5/3 | M5 | 4 | 20.5 | 8 | 8 |
| 30141130V | 5/3 | M6 | 4 | 20.5 | 8 | 8 |
| 30141170V | 6/4 | M5 | 4 | 21 | 8 | 9 |
| 30141180V | 6/4 | M6 | 4 | 21 | 8 | 9 |
| 30141190V | 6/4 | M12X1 | 8 | 28 | 15 | 12 |
| 30141200V | 6/4 | M12X1.25 | 8 | 28 | 15 | 12 |
| 30141210V | 6/4 | M12X1.5 | 8 | 28 | 15 | 12 |
| 30141320V | 8/6 | M12X1.25 | 8 | 28 | 17 | 14 |
| 30141330V | 8/6 | M12X1.5 | 8 | 28 | 17 | 14 |
| Temperature min./max. | -15°C | +200°C |
