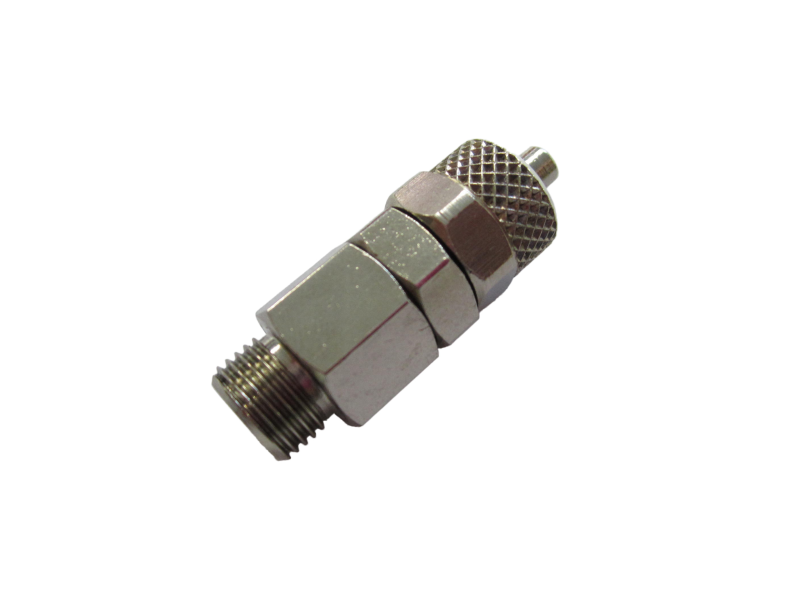

SWIVEL STRAIGHT MALE CYLINDRICAL
Cod: 3009-1

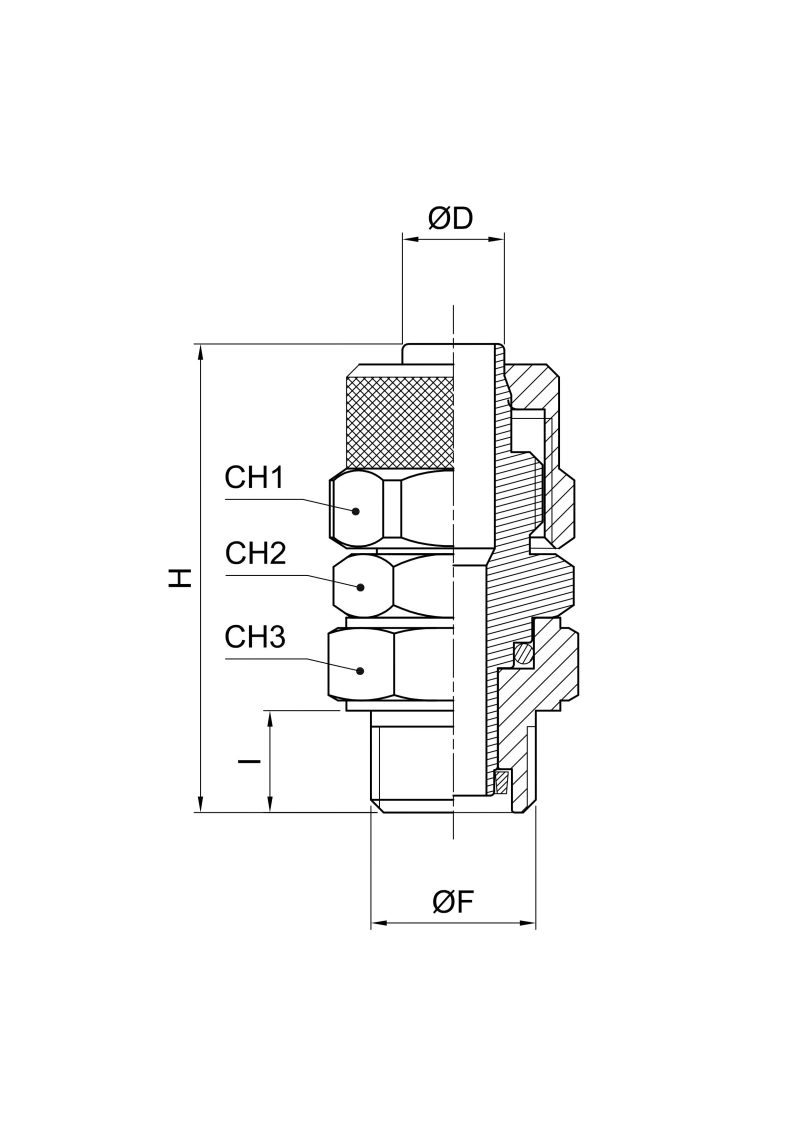

| Article | D | F | I | H | CH1 | CH2 | CH3 |
|---|---|---|---|---|---|---|---|
| 30091221 | 6/4 | 1/8 | 6 | 35 | 12 | 12 | 13 |
| 30091231 | 6/4 | 1/4 | 8 | 37.5 | 12 | 14 | 16 |
| 30095601 | 8/5 | 1/8 | 6 | 34 | 14 | 12 | 13 |
| 30095611 | 8/5 | 1/4 | 8 | 36 | 14 | 14 | 16 |
| 30091281 | 8/6 | 1/8 | 6 | 35 | 14 | 12 | 13 |
| 30091291 | 8/6 | 1/4 | 8 | 37 | 14 | 14 | 16 |
| 30095801 | 10/6.5 | 1/4 | 8 | 38 | 16 | 14 | 16 |
| 30091351 | 10/8 | 1/4 | 8 | 39 | 16 | 14 | 16 |
| 30095901 | 12/8 | 3/8 | 9 | 42 | 18 | 17 | 19 |
| 30091401 | 12/10 | 3/8 | 9 | 42 | 18 | 17 | 19 |
| Temperature min./max. | -20°C | +100°C |
