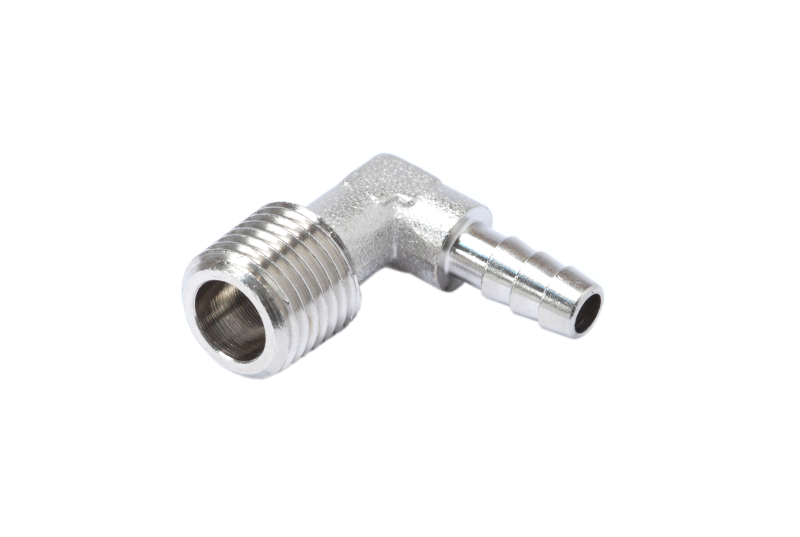

ELBOW HOSE CONNECTOR 90° MALE CONICAL
Cod: 3535

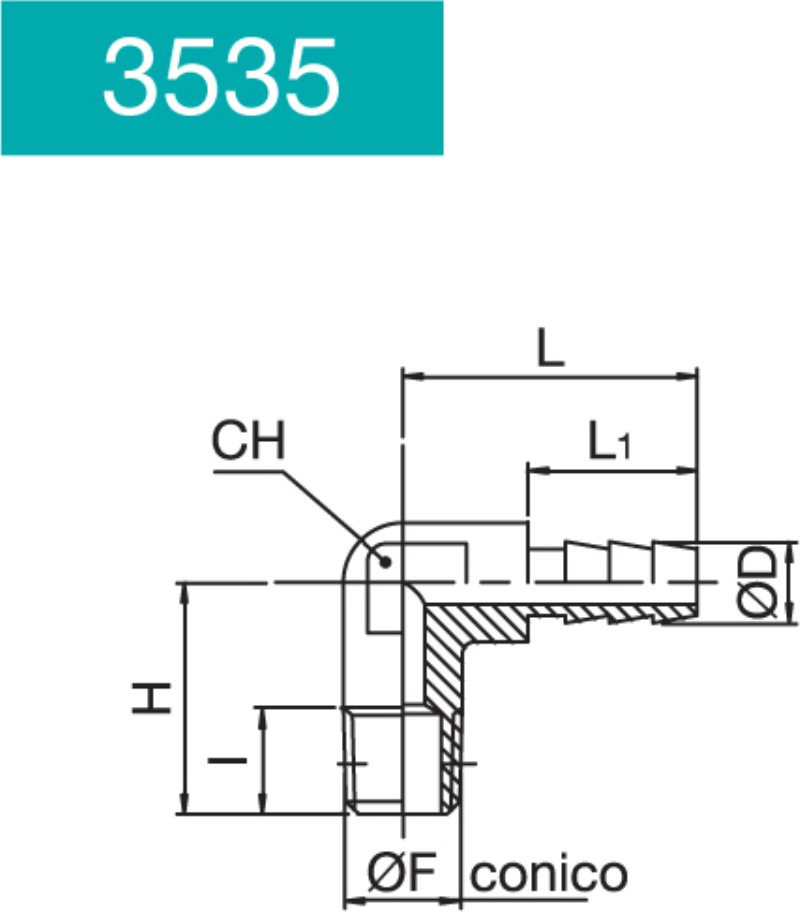

| Article | D | F | P | I | H | L | L1 | CH |
|---|---|---|---|---|---|---|---|---|
| 35351570 | 6 | 1/8 | 4 | 8 | 18.5 | 22.5 | 14 | 8 |
| 35351571 | 6 | 1/8 | 4 | 10 | 23 | 22.5 | 14 | 8 |
| 35351580 | 6 | 1/4 | 4 | 11 | 23 | 23 | 14 | 9 |
| 35351610 | 7 | 1/8 | 5 | 8 | 18.5 | 22.5 | 14 | 8 |
| 35351611 | 7 | 1/8 | 5 | 10 | 23 | 22.5 | 14 | 8 |
| 35351620 | 7 | 1/4 | 5 | 11 | 23 | 23 | 14 | 9 |
| 35351660 | 8 | 1/8 | 6 | 10 | 19 | 22.5 | 14 | 10 |
