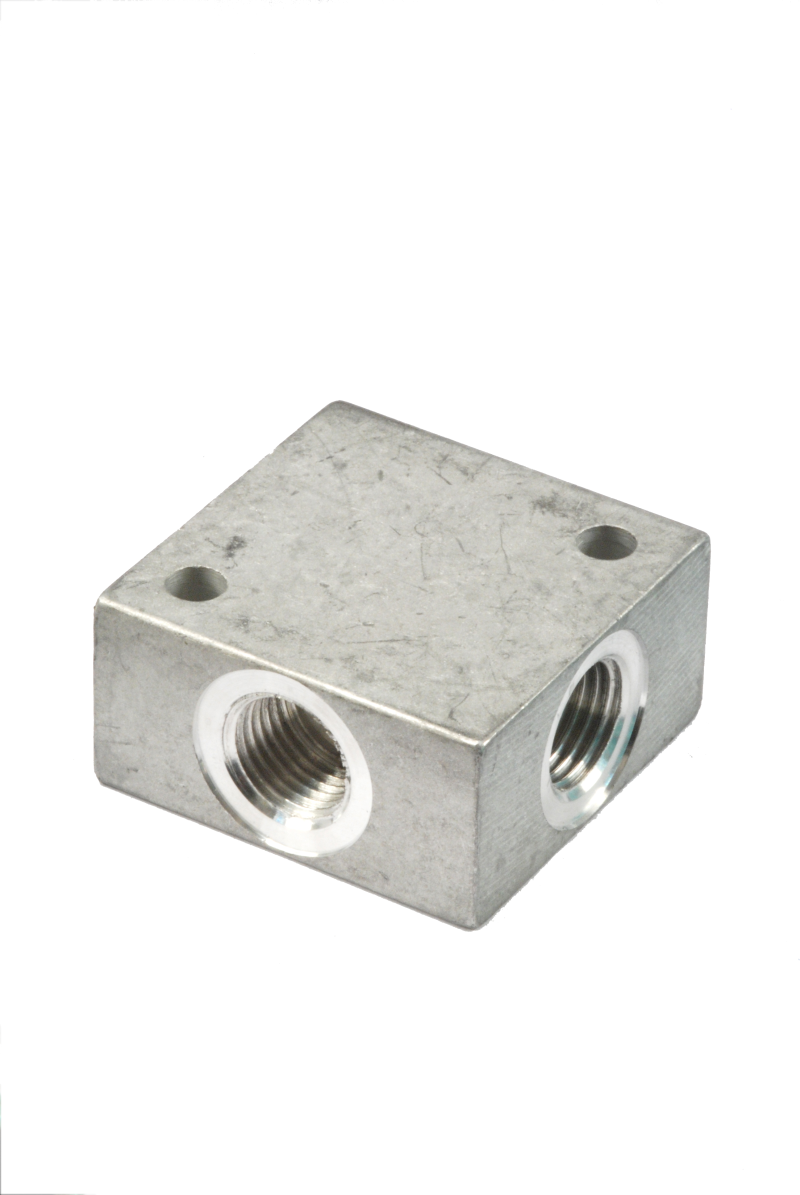

4 WAY DISTRIBUTION FRAME
Cod: 3670

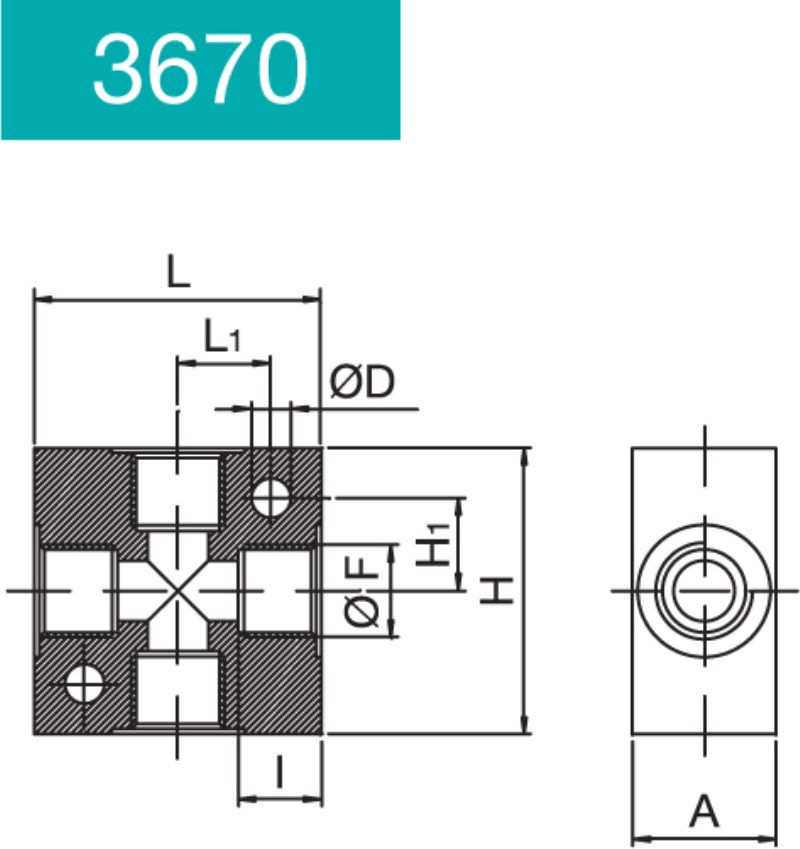

| Article | F | I | H | H1 | L | L1 | D | A |
|---|---|---|---|---|---|---|---|---|
| 36700800 | 1/8 | 8 | 25 | 8.5 | 25 | 8.5 | 4.5 | 15 |
| 36701700 | 1/4 | 11 | 40 | 13 | 40 | 13 | 5.5 | 20 |
| 36701702 ECO | 1/4 | 11 | 30 | 11.5 | 30 | 11.5 | 4.5 | 18 |
| 36702600 | 3/8 | 11.5 | 50 | 17 | 50 | 17 | 5.5 | 25 |
| 36702602 ECO | 3/8 | 11.5 | 40 | 15 | 40 | 15 | 5.5 | 20 |
| 36703500 | 1/2 | 14 | 50 | 17 | 50 | 17 | 5.5 | 30 |
| 36703502 ECO | 1/2 | 14 | 50 | 16.5 | 50 | 16.5 | 5.5 | 30 |
| 36700801 | 1/8 | ANODIZED | ||||||
| 367001701 | 1/4 | ANODIZED | ||||||
| 367002601 | 3/8 | ANODIZED | ||||||
| 367003501 | 1/2 | ANODIZED | ||||||
| Temperature min./max. | -20°C | +130°C | ||||||
| Pressure | 12 BAR |
