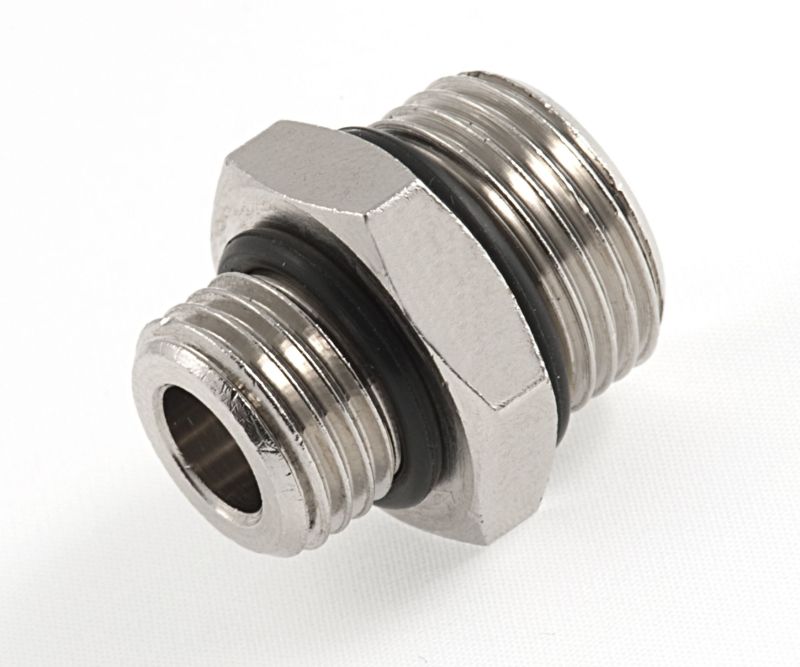

REDUCING NIPPLE CYLINDRICAL WITH O-RING -3687-
Cod: 3687

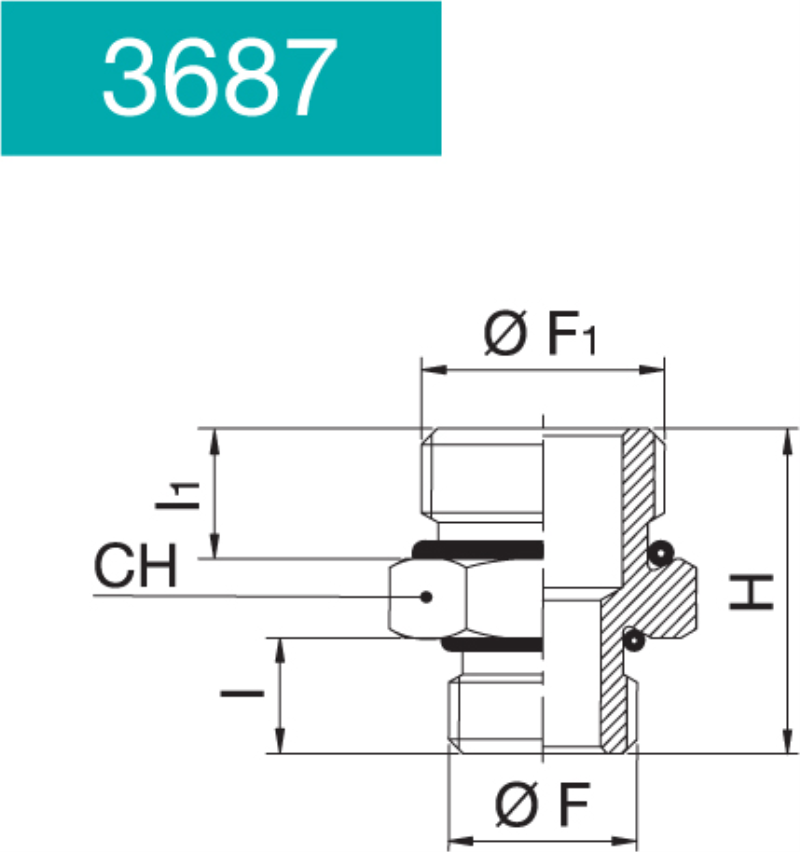

| Article | F | F1 | I | I1 | H | CH |
|---|---|---|---|---|---|---|
| 36871000 | 1/8 | 1/4 | 6.5 | 8 | 19.5 | 17 |
| 36871100 | 1/8 | 3/8 | 6.5 | 9 | 21 | 20 |
| 36872000 | 1/4 | 3/8 | 8 | 9 | 22.5 | 20 |
| 36872100 | 1/4 | 1/2 | 8 | 10 | 24 | 24 |
| 36873000 | 3/8 | 1/2 | 9 | 10 | 25 | 24 |
| Temperature min./max. | -20°C | +100°C |
