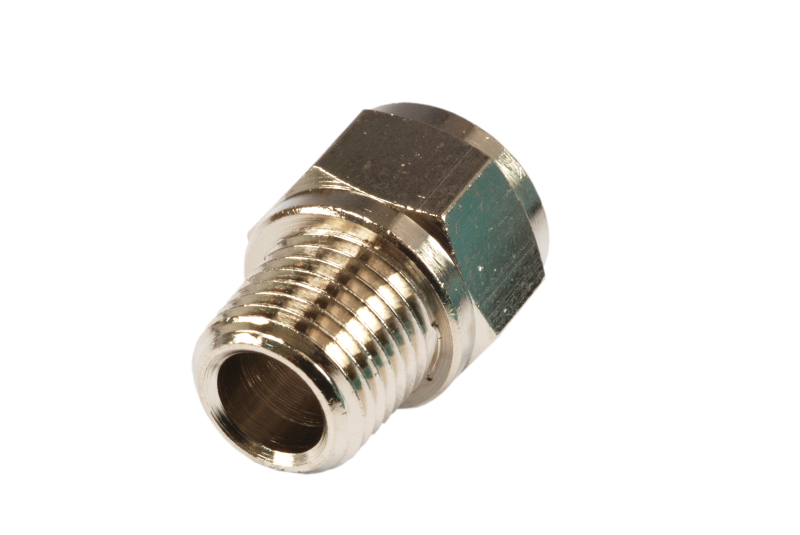

REDUCING NIPPLE MALE CONICAL-FEMALE -3690-
Cod: 3690

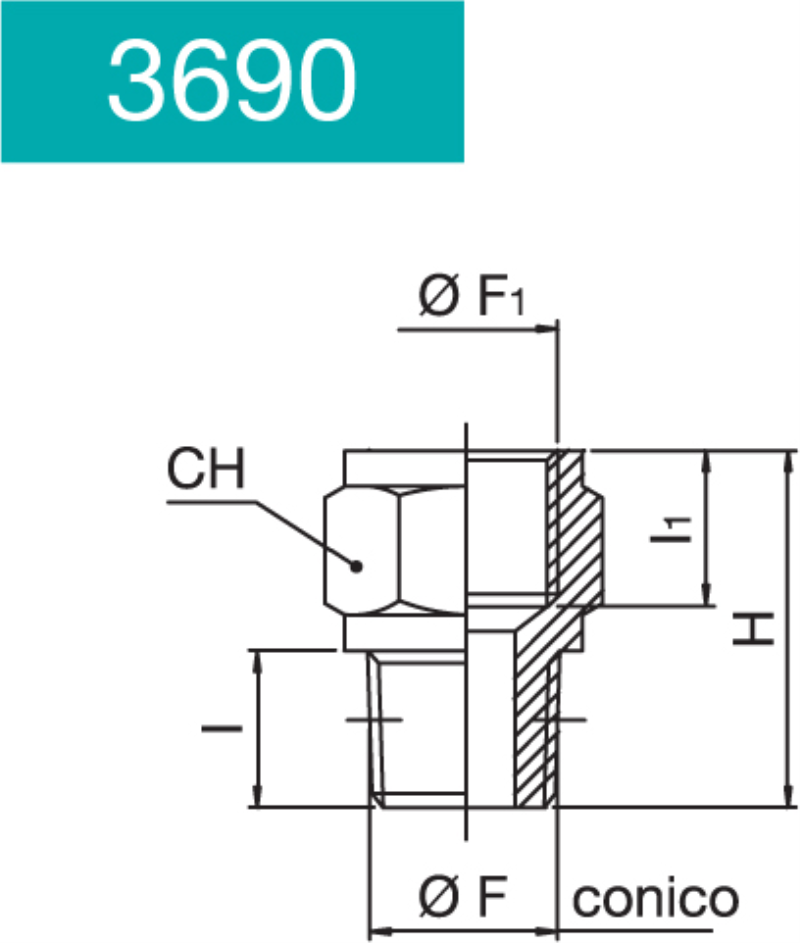

| Article | F | F1 | I | I1 | H | CH |
|---|---|---|---|---|---|---|
| 36900900 | 1/8 | 1/8 | 8 | 8 | 18 | 14 |
| 36901000 | 1/8 | 1/4 | 8 | 11 | 21.5 | 17 |
| 36901100 | 1/8 | 3/8 | 8 | 11.5 | 22.5 | 22 |
| 36901900 | 1/4 | 1/4 | 11 | 11 | 24.5 | 17 |
| 36902000 | 1/4 | 3/8 | 11 | 11.5 | 25.5 | 22 |
| 36902100 | 1/4 | 1/2 | 11 | 15 | 29 | 24 |
| 36902900 | 3/8 | 3/8 | 11.5 | 11.5 | 26 | 22 |
| 36903000 | 3/8 | 1/2 | 11.5 | 15 | 29.5 | 24 |
| 36903900 | 1/2 | 1/2 | 14 | 15 | 32 | 26 |
| 36904000 | 1/2 | 3/4 | 14 | 16.5 | 35 | 32 |
| 36904100 | 1/2 | 1" | 14 | 19 | 37.5 | 38 |
