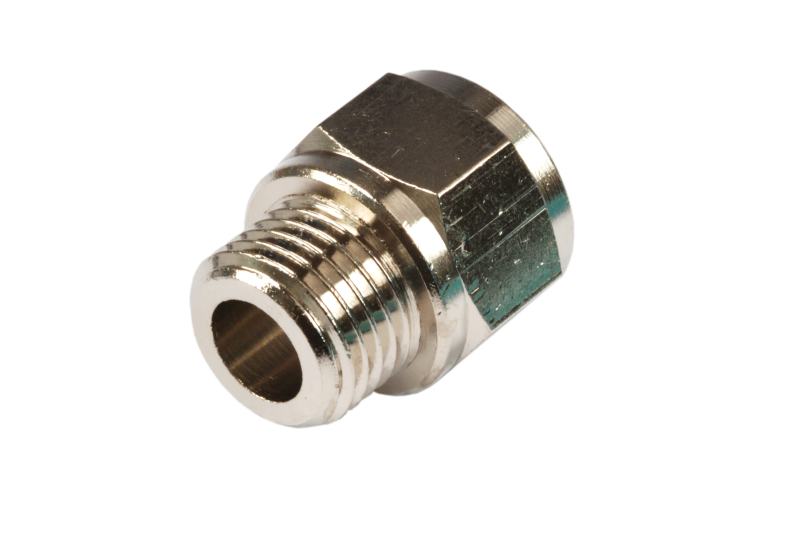

REDUCING NIPPLE MALE CYLINDRICAL-FEMALE -3691-
Cod: 3691

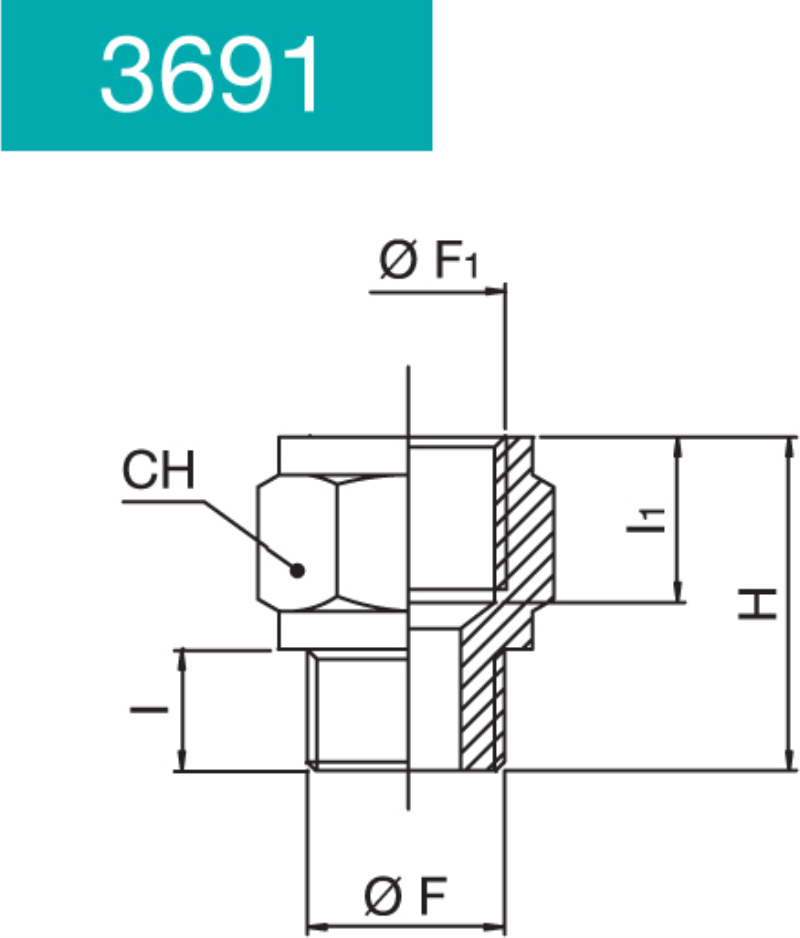

| Article | F | F1 | I | I1 | H | CH |
|---|---|---|---|---|---|---|
| 36910400 | M5 | 1/8 | 4 | 8 | 14.5 | 14 |
| 36910900 | 1/8 | 1/8 | 6 | 8 | 16.5 | 14 |
| 36911000 | 1/8 | 1/4 | 6 | 11 | 19.5 | 17 |
| 36911100 | 1/8 | 3/8 | 6 | 11.5 | 20.5 | 22 |
| 36911900 | 1/4 | 1/4 | 8 | 11 | 21.5 | 17 |
| 36912000 | 1/4 | 3/8 | 8 | 11.5 | 22.5 | 22 |
| 36912100 | 1/4 | 1/2 | 8 | 15 | 26 | 24 |
| 36912900 | 3/8 | 3/8 | 9 | 11.5 | 23.5 | 22 |
| 36913000 | 3/8 | 1/2 | 9 | 15 | 27 | 24 |
| 36913900 | 1/2 | 1/2 | 10 | 15 | 28 | 26 |
| 36914000 | 1/2 | 3/4 | 10 | 16.5 | 30 | 32 |
