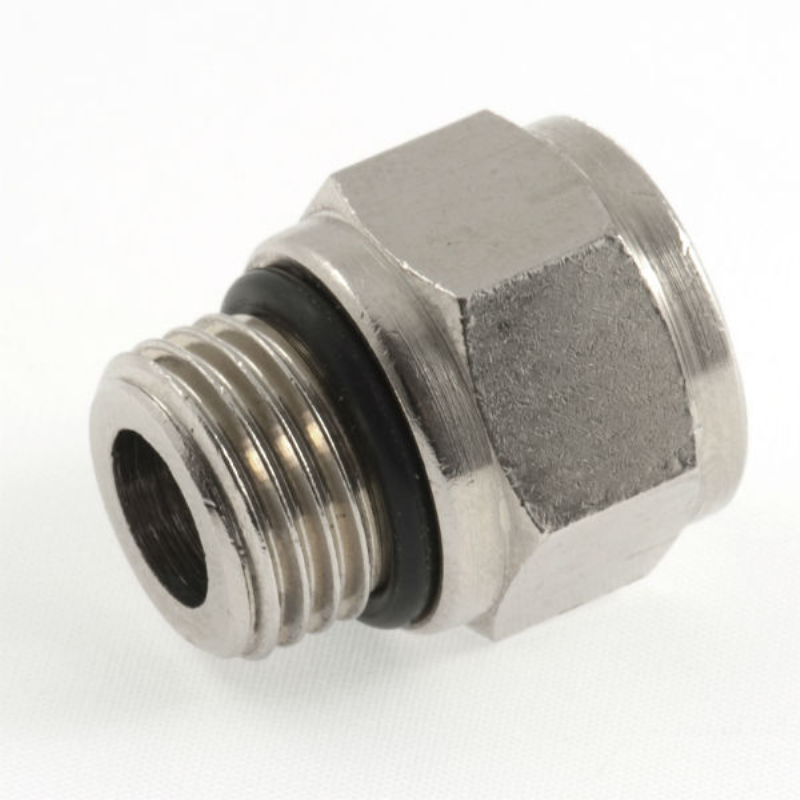

REDUCING NIPPLE MALE CYL.-FEMALE WITH O-RING -3692-
Cod: 3692

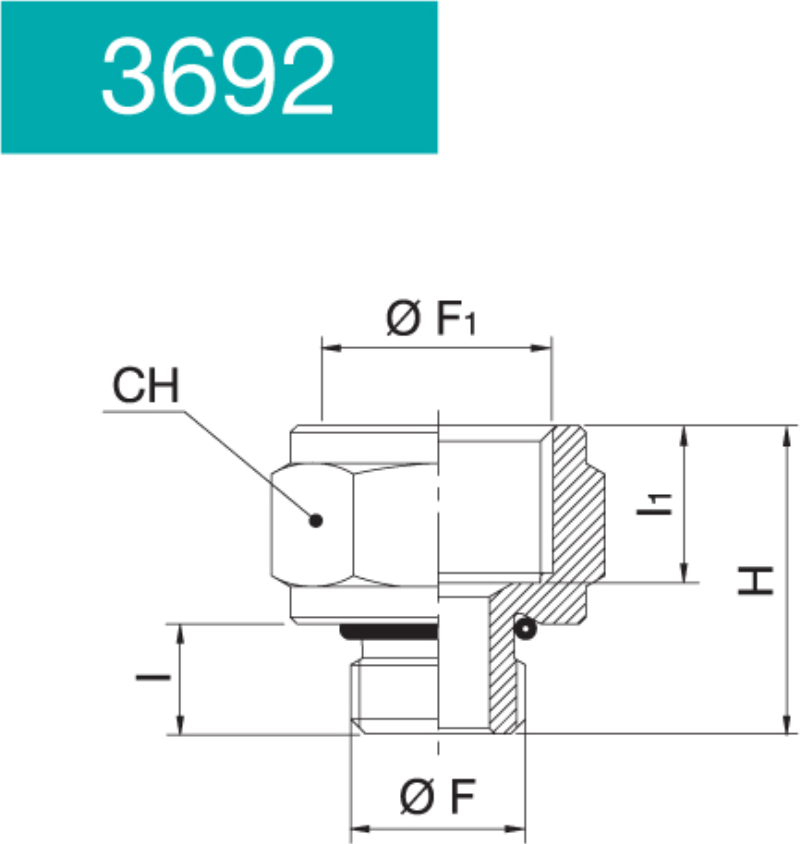

| Article | F | F1 | I | I1 | H | CH |
|---|---|---|---|---|---|---|
| 36920900 | 1/8 | 1/8 | 6.5 | 8 | 17 | 14 |
| 36921000 | 1/8 | 1/4 | 6.5 | 11 | 20 | 17 |
| 36921100 | 1/8 | 3/8 | 6.5 | 11.5 | 21 | 22 |
| 36921900 | 1/4 | 1/4 | 8 | 11 | 21.5 | 17 |
| 36922000 | 1/4 | 3/8 | 8 | 11.5 | 22.5 | 22 |
| 36922100 | 1/4 | 1/2 | 9 | 15 | 26 | 24 |
| 36922900 | 3/8 | 3/8 | 9 | 11.5 | 23.5 | 22 |
| 36923000 | 3/8 | 1/2 | 9 | 15 | 27 | 24 |
| Temperature min./max. | -20°C | +100°C |
