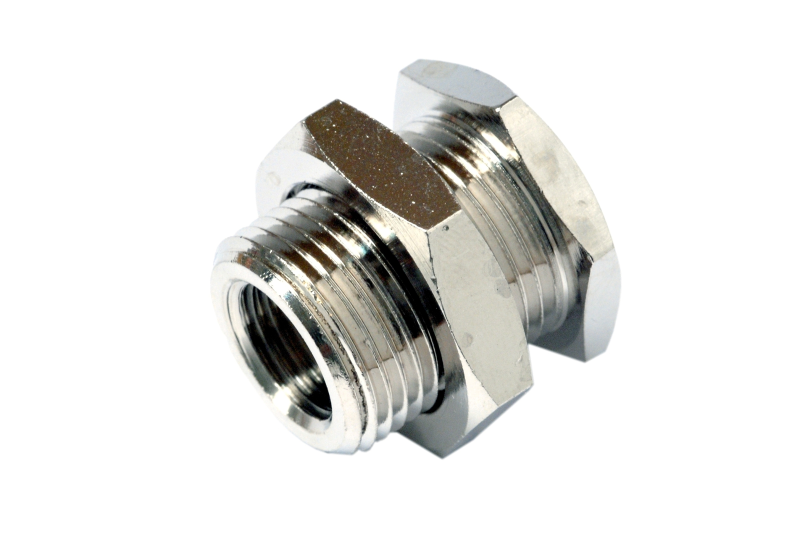

BULKHEAD FEMALE-FEMALE -3696-
Cod: 3696

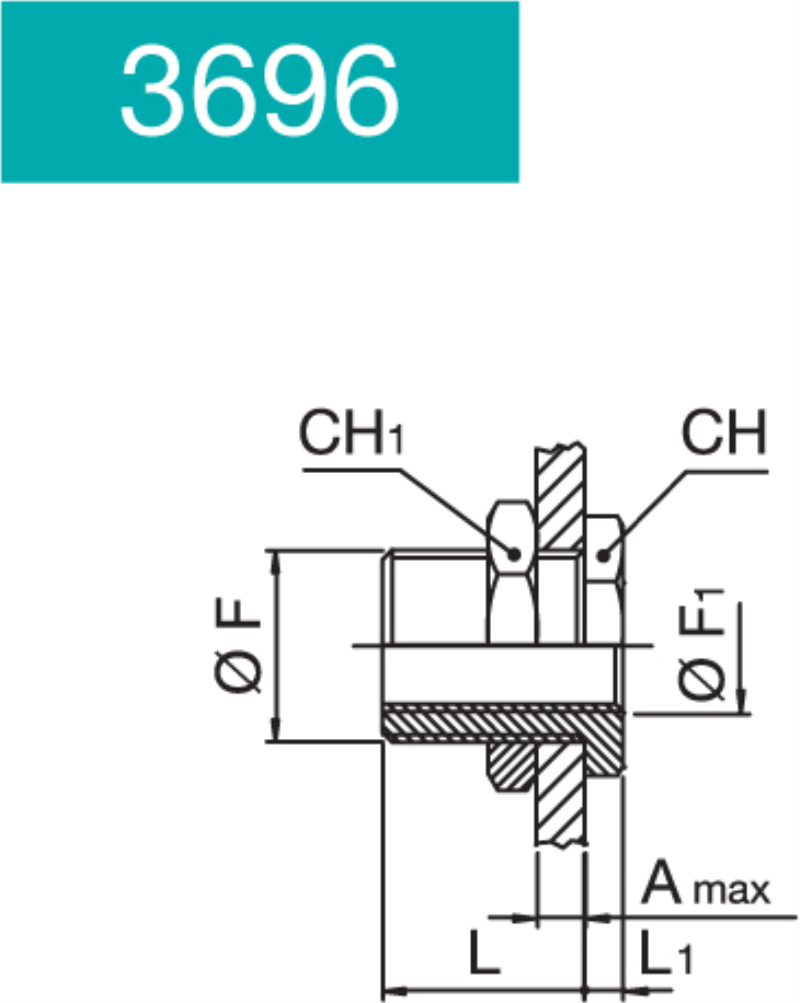

| Article | F | F1 | A max | L | L1 | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 36962790 | M10X1 | M5 | 7 | 10.5 | 3.5 | 14 | 14 |
| 36962800 | M16X1.5 | 1/8 | 10 | 14 | 4 | 19 | 22 |
| 36962810 | M20X1.5 | 1/4 | 16 | 21 | 4 | 24 | 27 |
| 36962820 | M26X1.5 | 3/8 | 15 | 21 | 5 | 30 | 32 |
| 36962830 | M28X1.5 | 1/2 | 21 | 27 | 6 | 32 | 36 |
