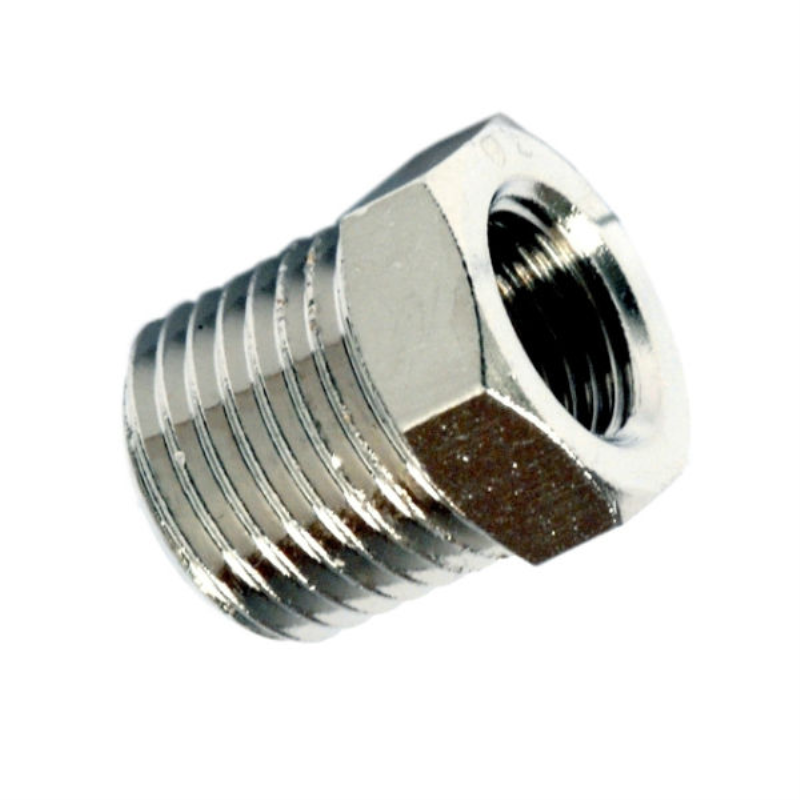

M.F.CONICAL REDUCER ADAPTOR -3700-
Cod: 3700

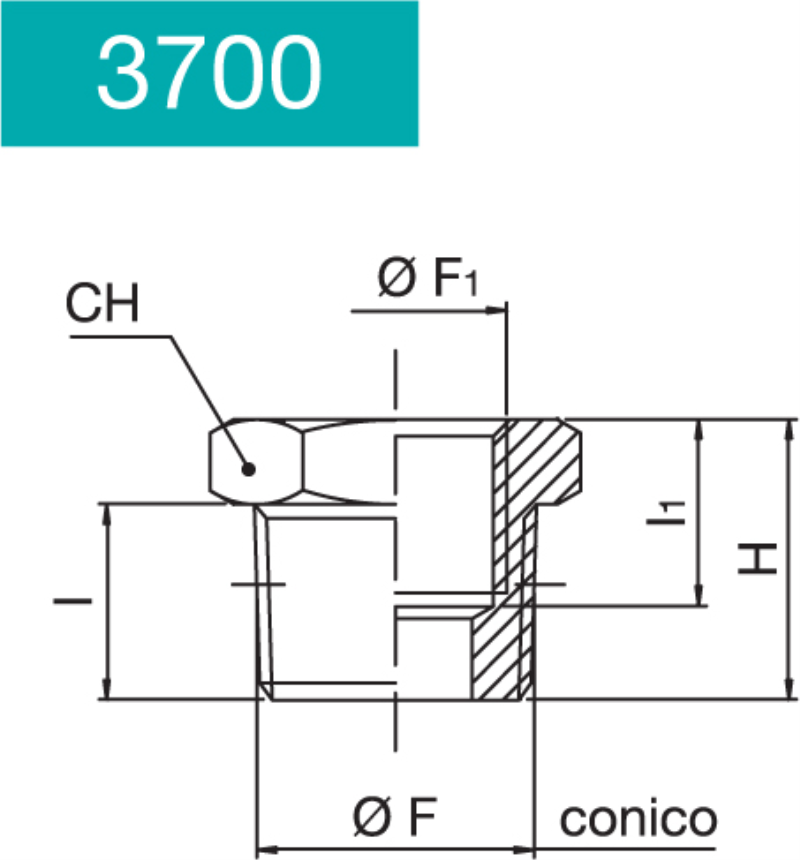

| Article | F | F1 | I | I1 | H | CH |
|---|---|---|---|---|---|---|
| 37001800 | 1/4 | 1/8 | 11 | 8 | 16 | 14 |
| 37002700 | 3/8 | 1/8 | 11.5 | 8 | 16.5 | 17 |
| 37002800 | 3/8 | 1/4 | 11.5 | 11 | 16.5 | 17 |
| 37003600 | 1/2 | 1/8 | 14 | 8 | 19.5 | 22 |
| 37003700 | 1/2 | 1/4 | 14 | 11 | 19.5 | 22 |
| 37003800 | 1/2 | 3/8 | 14 | 11.5 | 19.5 | 22 |
| 37004600 | 3/4 | 1/4 | 16,5 | 11 | 23 | 27 |
| 37004700 | 3/4 | 3/8 | 16.5 | 11.5 | 23 | 27 |
| 37004800 | 3/4 | 1/2 | 16.5 | 14 | 23 | 27 |
| 37005100 | 1" | 1/2 | 19 | 14 | 27 | 34 |
| 37005400 | 1" | 3/4 | 19 | 16.5 | 27 | 34 |
