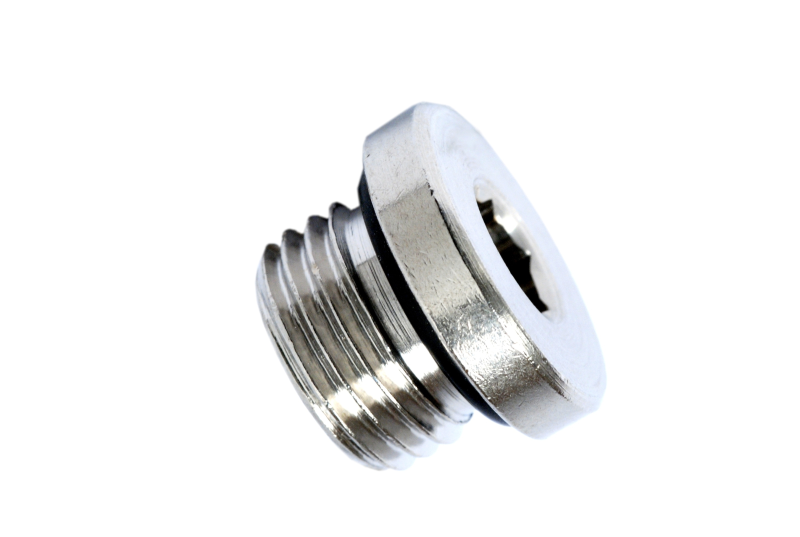

ALLEN KEY PLUG MALE CYL.WITH O-RING -3722-
Cod: 3722

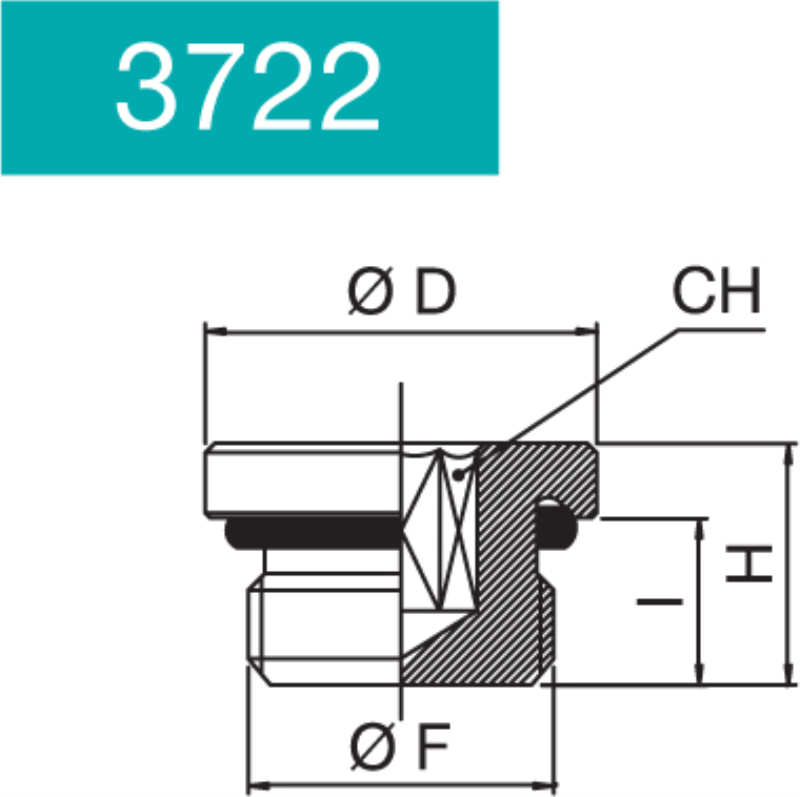

| Article | F | I | H | D | CH |
|---|---|---|---|---|---|
| 37220300 | M5 | 4.5 | 7.2 | 8 | 2.5 |
| 37220800 | 1/8 | 6.5 | 9.5 | 14 | 5 |
| 37221700 | 1/4 | 8 | 11.5 | 17 | 6 |
| 37222600 | 3/8 | 9 | 12.5 | 20 | 8 |
| 37223500 | 1/2 | 10 | 14 | 26 | 10 |
| 37220300V | M5 | 4.5 | 7.2 | 8 | 2.5 |
| 37220800V | 1/8 | 6.5 | 9.5 | 14 | 5 |
| 37221700V | 1/4 | 8 | 11.5 | 17 | 6 |
| 37222600V | 3/8 | 9 | 12.5 | 20 | 8 |
| 37223500V | 1/2 | 10 | 14 | 26 | 10 |
| V | WITH GREEN VITON O-RING | ||||
| Temperature min./max. | -20°C | +100°C |
