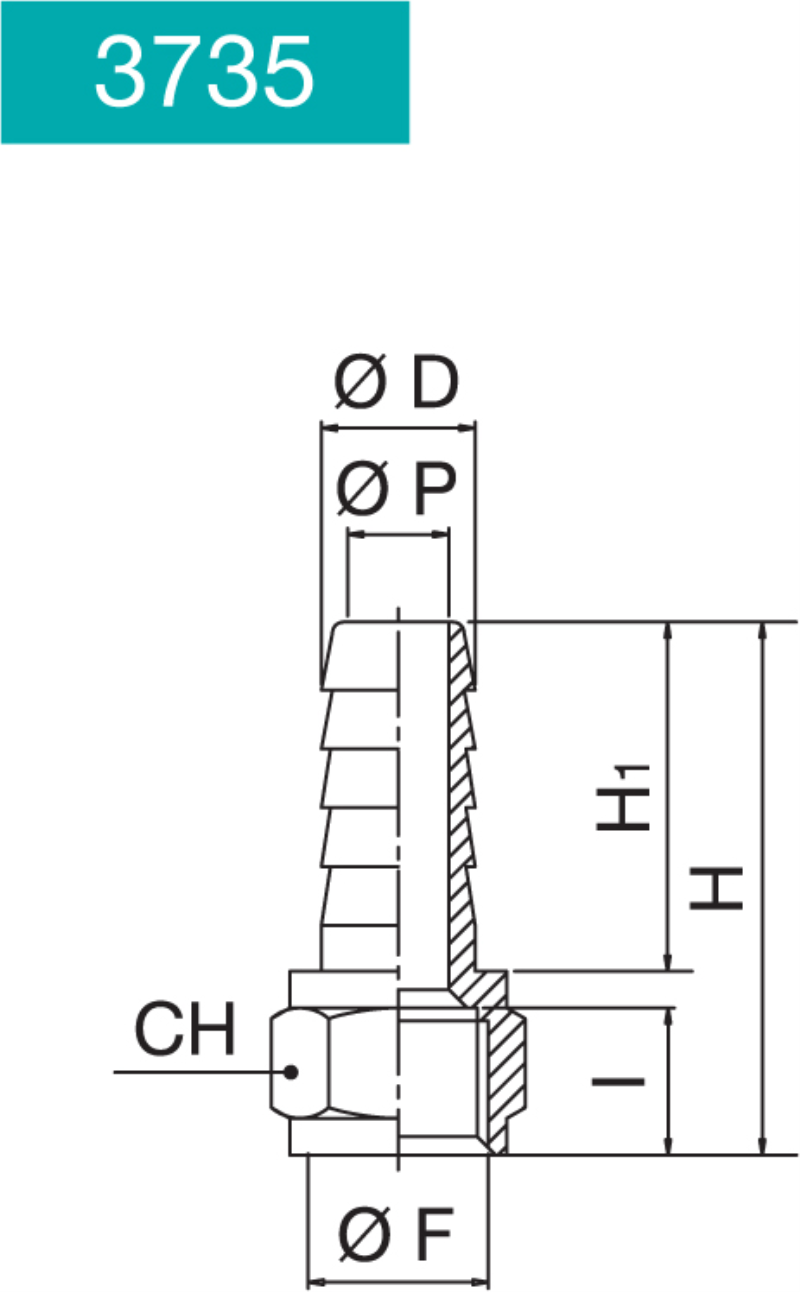

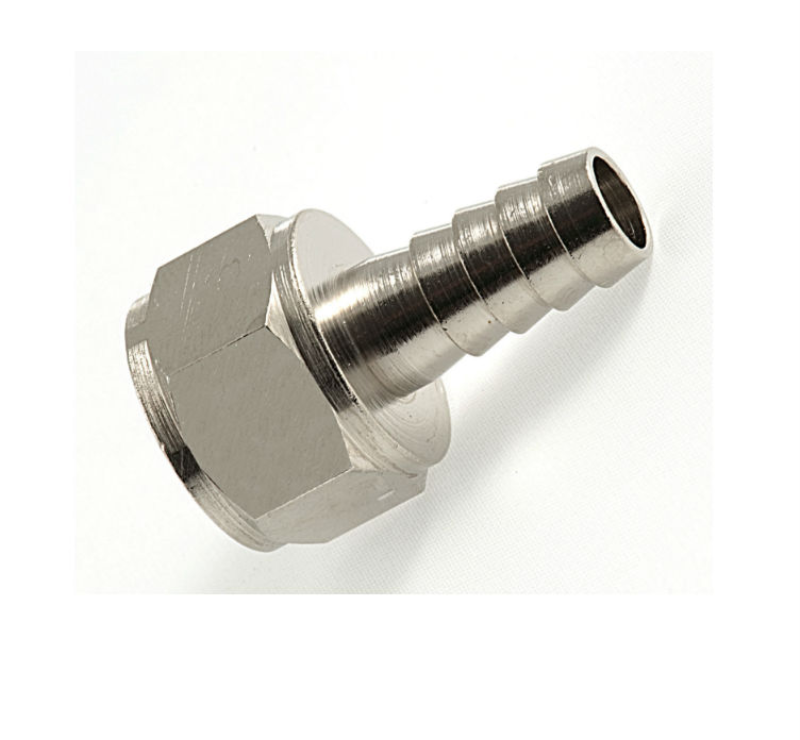

HOSE CONNECTOR FEMALE
Cod: 3735
| Article | D | F | P | I | H | H1 | CH |
|---|---|---|---|---|---|---|---|
| 37351570 | 6 | 1/8 | 3.5 | 8 | 28.5 | 19 | 12 |
| 37351580 | 6 | 1/4 | 3.5 | 11 | 31.5 | 19 | 15 |
| 37351610 | 7 | 1/8 | 4.5 | 8 | 28.5 | 19 | 12 |
| 37351620 | 7 | 1/4 | 4.5 | 11 | 31.5 | 19 | 15 |
| 37351660 | 8 | 1/8 | 5.5 | 8 | 28.5 | 19 | 12 |
| 37351670 | 8 | 1/4 | 5.5 | 11 | 31.5 | 19 | 15 |
| 37351710 | 9 | 1/8 | 6.5 | 8 | 28.5 | 19 | 12 |
| 37351720 | 9 | 1/4 | 6.5 | 11 | 31.5 | 19 | 15 |
| 37351730 | 9 | 3/8 | 6.5 | 11.5 | 32 | 19 | 19 |
| 37351750 | 10 | 1/8 | 7.5 | 8 | 29.5 | 20 | 12 |
| 37351760 | 10 | 1/4 | 7.5 | 11 | 32.5 | 20 | 15 |
| 37351770 | 10 | 3/8 | 7.5 | 11.5 | 33 | 20 | 19 |
| 37351780 | 10 | 1/2 | 7.5 | 14 | 36 | 20 | 24 |
| 37351810 | 12 | 1/4 | 9.5 | 11 | 32.5 | 20 | 15 |
| 37351820 | 12 | 3/8 | 9.5 | 11.5 | 33 | 20 | 19 |
| 37351830 | 12 | 1/2 | 9.5 | 14 | 36 | 20 | 24 |
| 37351870 | 14 | 3/8 | 11 | 11.5 | 35 | 22 | 19 |
| 37351880 | 14 | 1/2 | 11 | 14 | 38 | 22 | 24 |
| 37351950 | 16 | 3/8 | 13 | 11.5 | 35 | 22 | 19 |
| 37351960 | 16 | 1/2 | 13 | 14 | 38 | 22 | 24 |
| 37352000 | 17 | 3/8 | 13.5 | 11.5 | 37 | 24 | 19 |
| 37352010 | 17 | 1/2 | 13.5 | 14 | 40 | 24 | 24 |
| 37352060 | 18 | 1/2 | 14 | 14 | 40 | 24 | 24 |
| 37352070 | 18 | 3/4 | 14 | 15 | 41.5 | 24 | 29 |
| 37352120 | 20 | 3/4 | 16.5 | 15 | 41.5 | 24 | 29 |
| 37352140 | 25 | 3/4 | 20.5 | 15 | 47.5 | 30 | 29 |
