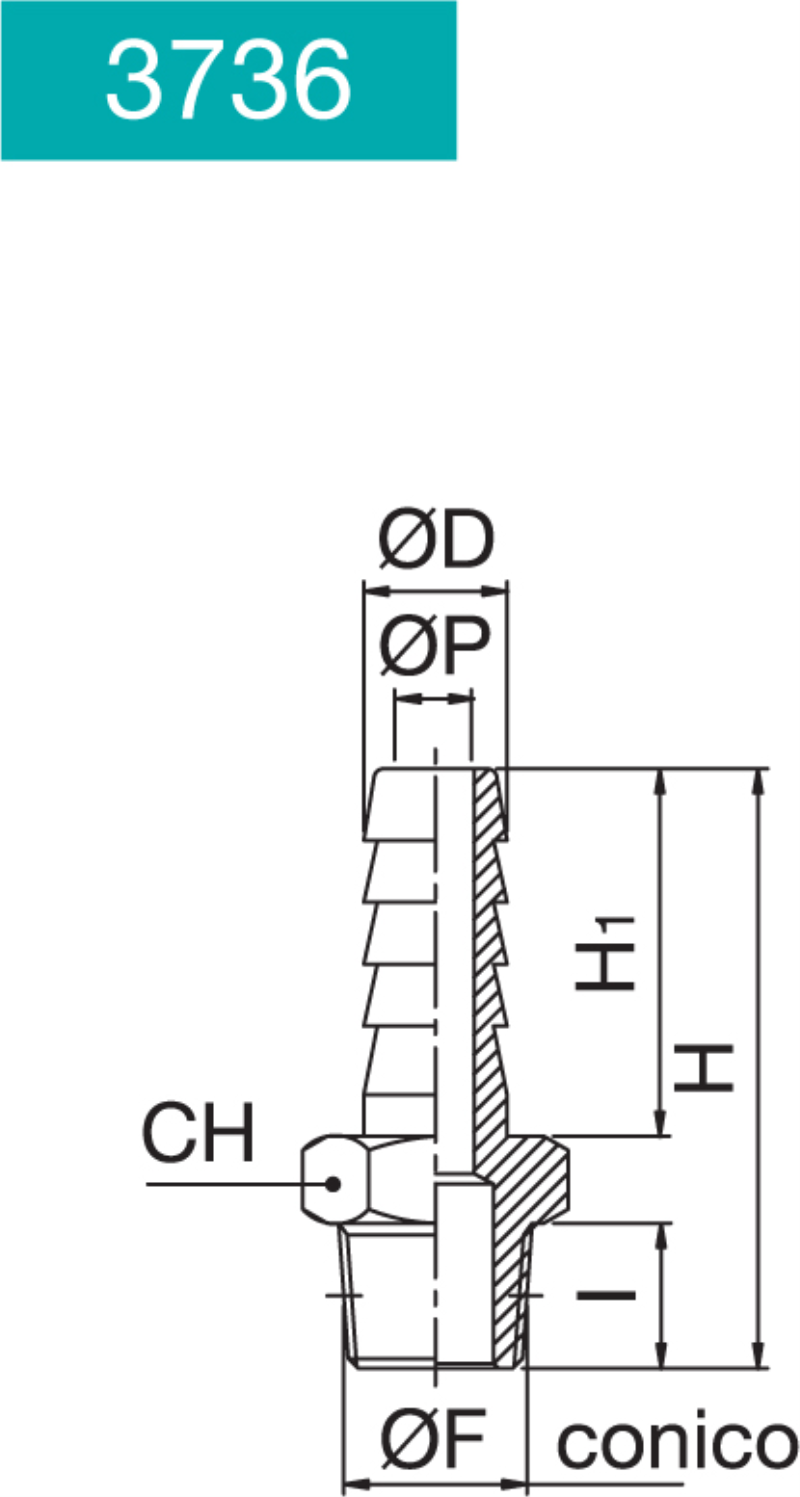

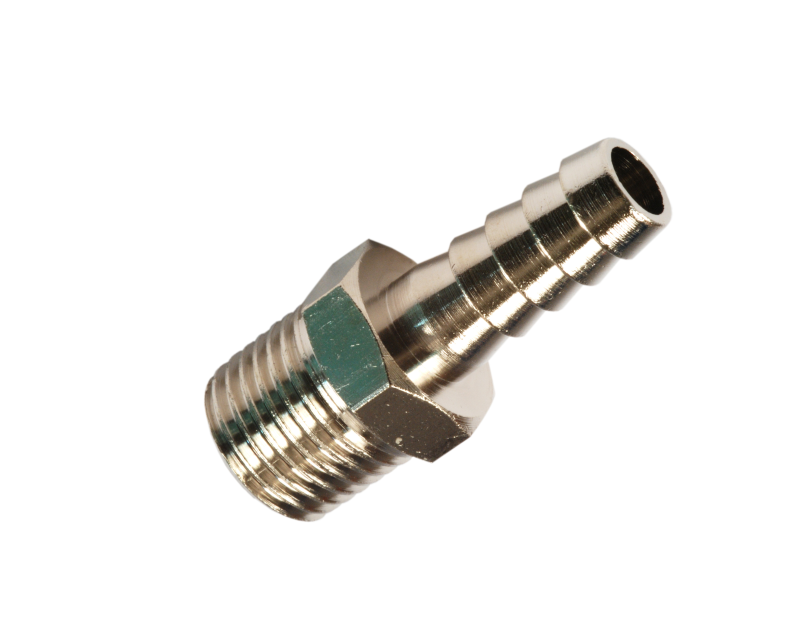

HOSE CONNECTOR MALE CONICAL
Cod: 3736
| Article | D | F | P | I | H | H1 | CH |
|---|---|---|---|---|---|---|---|
| 37361570 | 6 | 1/8 | 3.5 | 8 | 31.5 | 19 | 12 |
| 37361580 | 6 | 1/4 | 3.5 | 11 | 35 | 19 | 14 |
| 37361610 | 7 | 1/8 | 4.5 | 8 | 31.5 | 19 | 12 |
| 37361620 | 7 | 1/4 | 4.5 | 11 | 35 | 19 | 14 |
| 37361660 | 8 | 1/8 | 5.5 | 8 | 31.5 | 19 | 12 |
| 37361670 | 8 | 1/4 | 5.5 | 11 | 35 | 19 | 14 |
| 37361710 | 9 | 1/8 | 6 | 8 | 31.5 | 19 | 12 |
| 37361720 | 9 | 1/4 | 6.5 | 11 | 35 | 19 | 14 |
| 37361730 | 9 | 3/8 | 6.5 | 11.5 | 35.5 | 19 | 17 |
| 37361740 | 9 | 1/2 | 6.5 | 14 | 38.5 | 19 | 22 |
| 37361750 | 10 | 1/8 | 7.5 | 8 | 32.5 | 20 | 12 |
| 37361760 | 10 | 1/4 | 7.5 | 11 | 36 | 20 | 14 |
| 37361770 | 10 | 3/8 | 7.5 | 11.5 | 36.5 | 20 | 17 |
| 37361780 | 10 | 1/2 | 7.5 | 14 | 39.5 | 20 | 22 |
| 37361810 | 12 | 1/4 | 9.5 | 11 | 36 | 20 | 14 |
| 37361820 | 12 | 3/8 | 9.5 | 11.5 | 36.5 | 20 | 17 |
| 37361830 | 12 | 1/2 | 9.5 | 14 | 39.5 | 20 | 22 |
| 37361870 | 14 | 3/8 | 11 | 11.5 | 38.5 | 22 | 17 |
| 37361880 | 14 | 1/2 | 11 | 14 | 41.5 | 22 | 22 |
| 37361950 | 16 | 3/8 | 13 | 11.5 | 38.5 | 22 | 17 |
| 37361960 | 16 | 1/2 | 13 | 14 | 41.5 | 22 | 22 |
| 37361970 | 16 | 3/4 | 13 | 16.5 | 45 | 22 | 27 |
| 37362000 | 17 | 3/8 | 13.5 | 11.5 | 40.5 | 24 | 18 |
| 37362010 | 17 | 1/2 | 13.5 | 14 | 43.5 | 24 | 22 |
| 37362050 | 18 | 3/8 | 14 | 11.5 | 40.5 | 24 | 19 |
| 37362060 | 18 | 1/2 | 14 | 14 | 43.5 | 24 | 22 |
| 37362070 | 18 | 3/4 | 14 | 16.5 | 47 | 24 | 27 |
| 37362100 | 20 | 3/8 | 16.5 | 11.5 | 41 | 24 | 22 |
| 37362110 | 20 | 1/2 | 16.5 | 14 | 43.5 | 24 | 22 |
| 37362120 | 20 | 3/4 | 16.5 | 16.5 | 46.5 | 24 | 27 |
| 37362125 | 21 | 1/2 | 15.5 | 14 | 53.5 | 34 | 22 |
| 37362130 | 21 | 3/4 | 16.5 | 16.5 | 56.5 | 34 | 27 |
| 37362135 | 21 | 1" | 16.5 | 19 | 60 | 34 | 34 |
| 37362140 | 25 | 3/4 | 20.5 | 16.5 | 53 | 30 | 27 |
| 37362160 | 25 | 1" | 20.5 | 19 | 56 | 30 | 34 |
| 37362310 | 27 | 3/4 | 20.5 | 16.5 | 60.5 | 38 | 32 |
| 37362320 | 27 | 1" | 22 | 19 | 64 | 38 | 34 |
