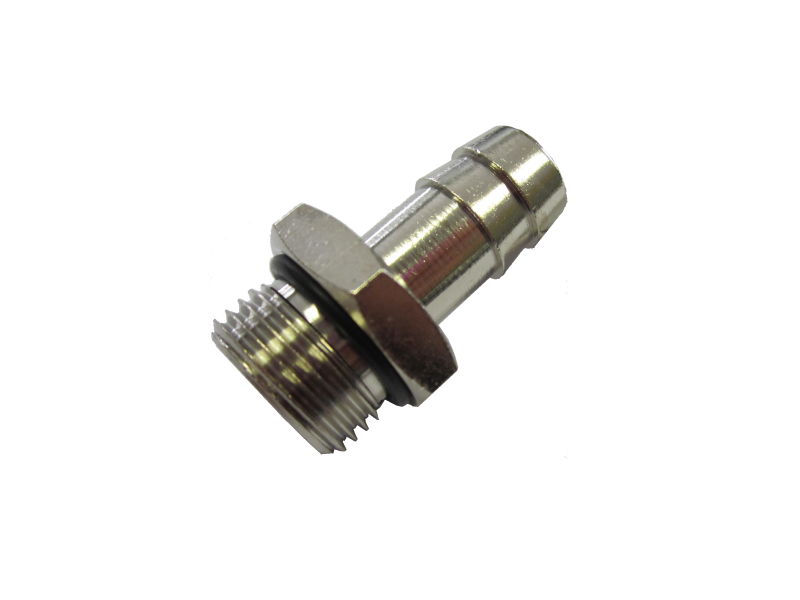

HOSE CONNECTOR MALE CYL. WITH O-RING -3738-
Cod: 3738

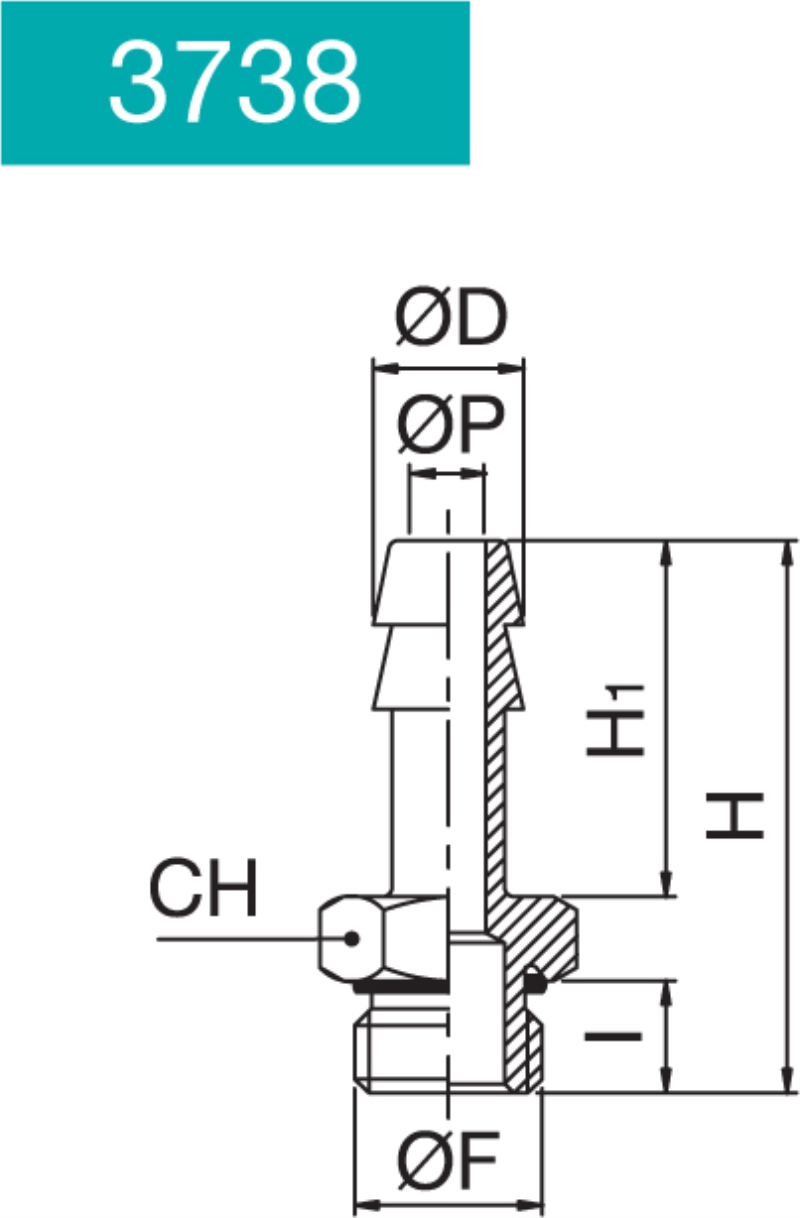

| Article | D | F | P | I | H | H1 | CH |
|---|---|---|---|---|---|---|---|
| 37381070 | 4.5 | M5 | 2 | 4.5 | 23 | 15 | 8 |
| 37381570 | 6 | 1/8 | 3 | 6.5 | 30 | 19 | 14 |
| 37381580 | 6 | 1/4 | 3 | 8 | 32 | 19 | 17 |
| 37381590 | 6 | 3/8 | 3 | 9 | 33 | 19 | 20 |
| 37381610 | 7 | 1/8 | 4 | 6.5 | 30 | 19 | 14 |
| 37381620 | 7 | 1/4 | 4 | 8 | 32 | 19 | 17 |
| 37381660 | 8 | 1/8 | 5 | 6.5 | 30 | 19 | 14 |
| 37381670 | 8 | 1/4 | 5 | 8 | 32 | 19 | 17 |
| 37381680 | 8 | 3/8 | 5 | 9 | 33 | 19 | 20 |
| 37381710 | 9 | 1/8 | 5.5 | 6.5 | 30 | 19 | 14 |
| 37381720 | 9 | 1/4 | 6 | 8 | 32 | 19 | 17 |
| 37381730 | 9 | 3/8 | 6 | 9 | 33 | 19 | 20 |
| 37381750 | 10 | 1/8 | 5.5 | 6.5 | 30 | 19 | 14 |
| 37381760 | 10 | 1/4 | 6.5 | 8 | 32 | 19 | 17 |
| 37381770 | 10 | 3/8 | 9 | 9 | 33 | 19 | 20 |
| 37381810 | 12 | 1/4 | 8.5 | 8 | 33 | 20 | 17 |
| 37381820 | 12 | 3/8 | 9 | 9 | 34 | 20 | 20 |
| 37381830 | 12 | 1/2 | 9 | 10 | 35.5 | 20 | 24 |
| 37381870 | 14 | 3/8 | 13 | 9 | 34 | 20 | 20 |
| 37381880 | 14 | 1/2 | 13 | 10 | 35.5 | 20 | 24 |
| 37382000 | 17 | 3/8 | 11 | 9 | 38 | 24 | 20 |
| 37382010 | 17 | 1/2 | 13 | 10 | 39.5 | 24 | 24 |
| ...............V | FINAL ARTICLE'S CODE 'V' FOR O-RING VITON | ||||||
| Temperature min./max. | -20°C | +100°C |
