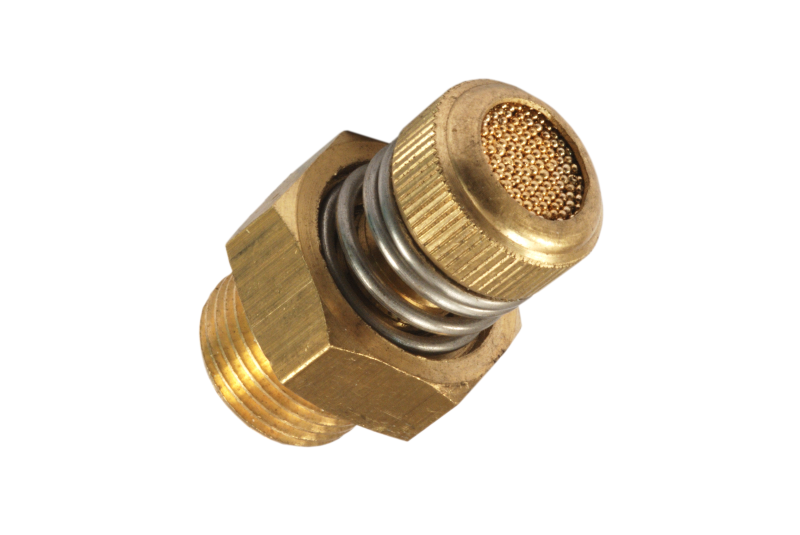

SILENT FLOW REGULATOR

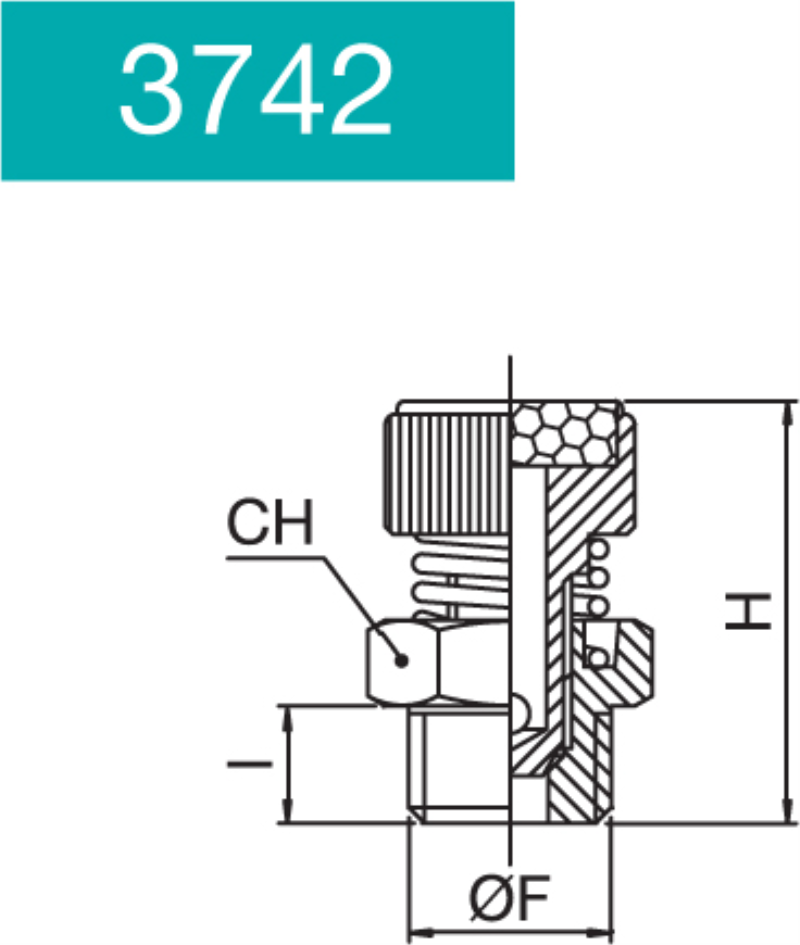

Cod: 3742
Article | F | I | H min | H max | CH |
---|---|---|---|---|---|
37420800 | 1/8 | 6 | 26 | 28 | 13 |
37421700 | 1/4 | 8 | 30 | 32 | 15 |
37422600 | 3/8 | 9 | 35 | 38 | 18 |
37423500 | 1/2 | 10 | 36 | 39 | 22 |
Temperature min./max. | -10°C | +80°C | |||
Pressure | 12 BAR |
Cod: 3742
Article | F | I | H min | H max | CH |
---|---|---|---|---|---|
37420800 | 1/8 | 6 | 26 | 28 | 13 |
37421700 | 1/4 | 8 | 30 | 32 | 15 |
37422600 | 3/8 | 9 | 35 | 38 | 18 |
37423500 | 1/2 | 10 | 36 | 39 | 22 |
Temperature min./max. | -10°C | +80°C | |||
Pressure | 12 BAR |
