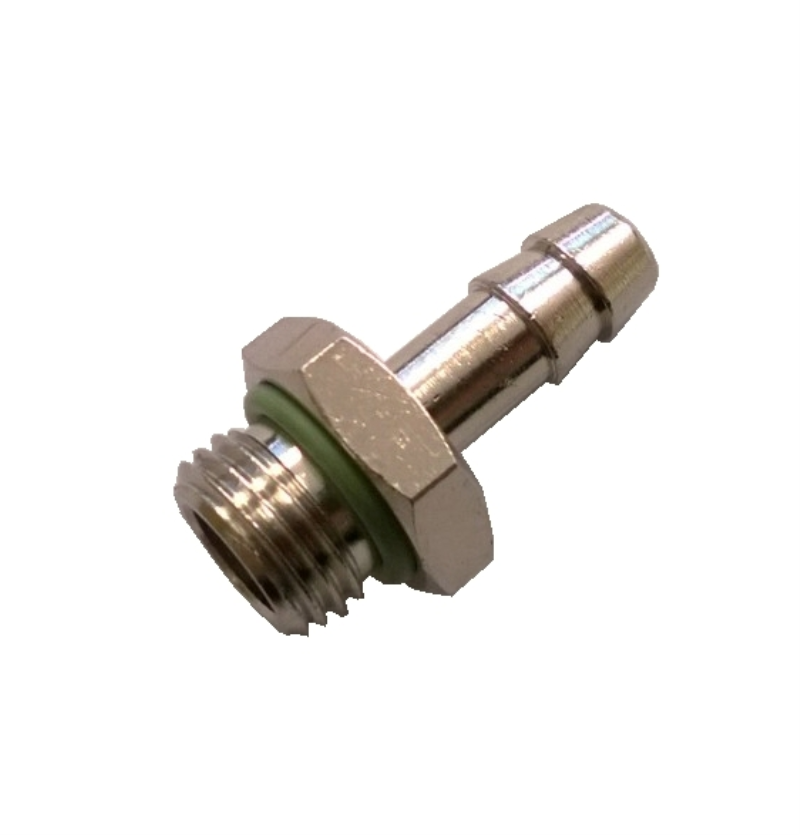

HOSE CONNECTOR MALE CYL. O-RING VITON
Cod: 3738V

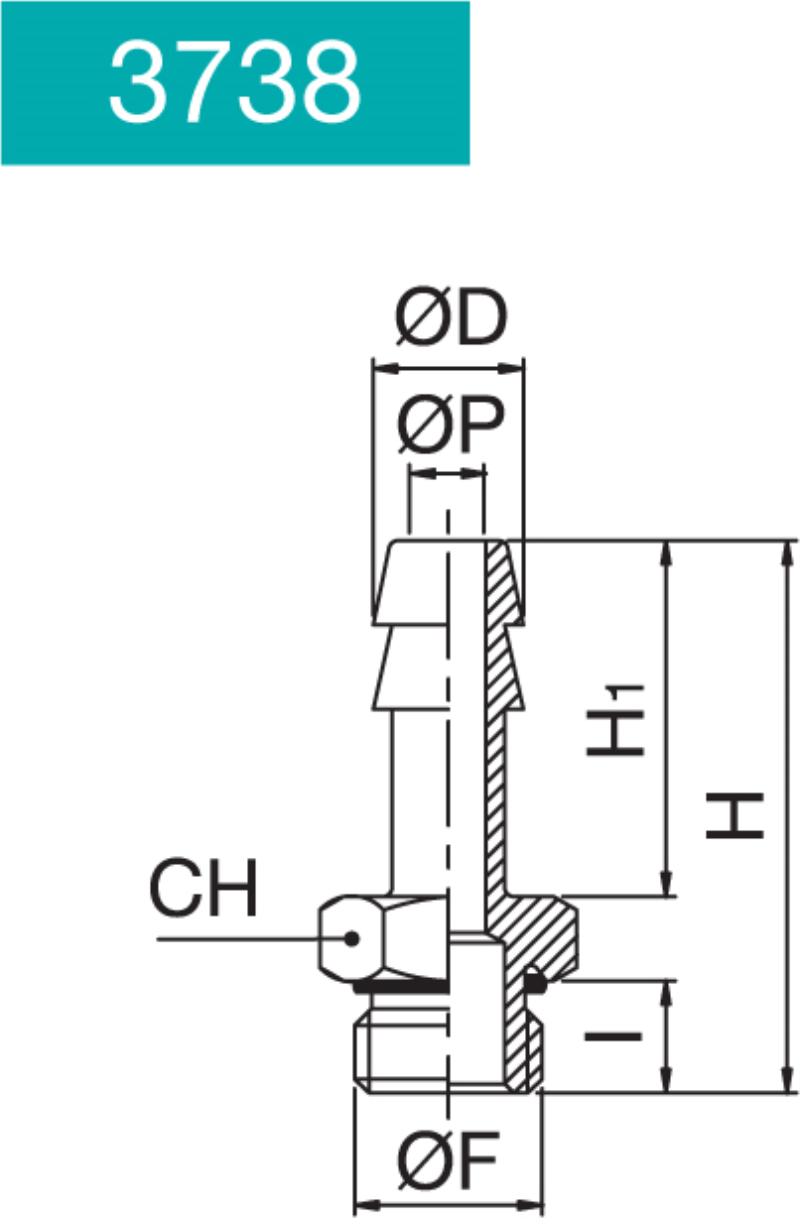

| Article | D | F | P | I | H | H1 | CH |
|---|---|---|---|---|---|---|---|
| 37381070V | 4.5 | M5 | 2 | 4.5 | 23 | 15 | 8 |
| 37381570V | 6 | 1/8 | 3 | 6.5 | 30 | 19 | 14 |
| 37381580V | 6 | 1/4 | 3 | 8 | 32 | 19 | 17 |
| 37381590V | 6 | 3/8 | 3 | 9 | 33 | 19 | 20 |
| 37381610V | 7 | 1/8 | 4 | 6.5 | 30 | 19 | 14 |
| 37381620V | 7 | 1/4 | 4 | 8 | 32 | 19 | 17 |
| 37381660V | 8 | 1/8 | 5 | 6.5 | 30 | 19 | 14 |
| 37381670V | 8 | 1/4 | 5 | 8 | 32 | 19 | 17 |
| 37381680V | 8 | 3/8 | 5 | 9 | 33 | 19 | 20 |
| 37381710V | 9 | 1/8 | 5.5 | 6.5 | 30 | 19 | 14 |
| 37381720V | 9 | 1/4 | 6 | 8 | 32 | 19 | 17 |
| 37381730V | 9 | 3/8 | 6 | 9 | 33 | 19 | 20 |
| 37381750V | 10 | 1/8 | 5.5 | 6.5 | 30 | 19 | 14 |
| 37381760V | 10 | 1/4 | 6.5 | 8 | 32 | 19 | 17 |
| 37381770V | 10 | 3/8 | 9 | 9 | 33 | 19 | 20 |
| 37381810V | 12 | 1/4 | 8.5 | 8 | 33 | 20 | 17 |
| 37381820V | 12 | 3/8 | 9 | 9 | 34 | 20 | 20 |
| 37381830V | 12 | 1/2 | 9 | 10 | 35.5 | 20 | 24 |
| 37381870V | 14 | 3/8 | 13 | 9 | 34 | 20 | 20 |
| 37381880V | 14 | 1/2 | 13 | 10 | 35.5 | 20 | 24 |
| 37382000V | 17 | 3/8 | 13 | 9 | 38 | 24 | 20 |
| 37382010V | 17 | 1/2 | 13 | 10 | 39.5 | 24 | 24 |
| Temperature min./max. | -15°C | +200°C |
