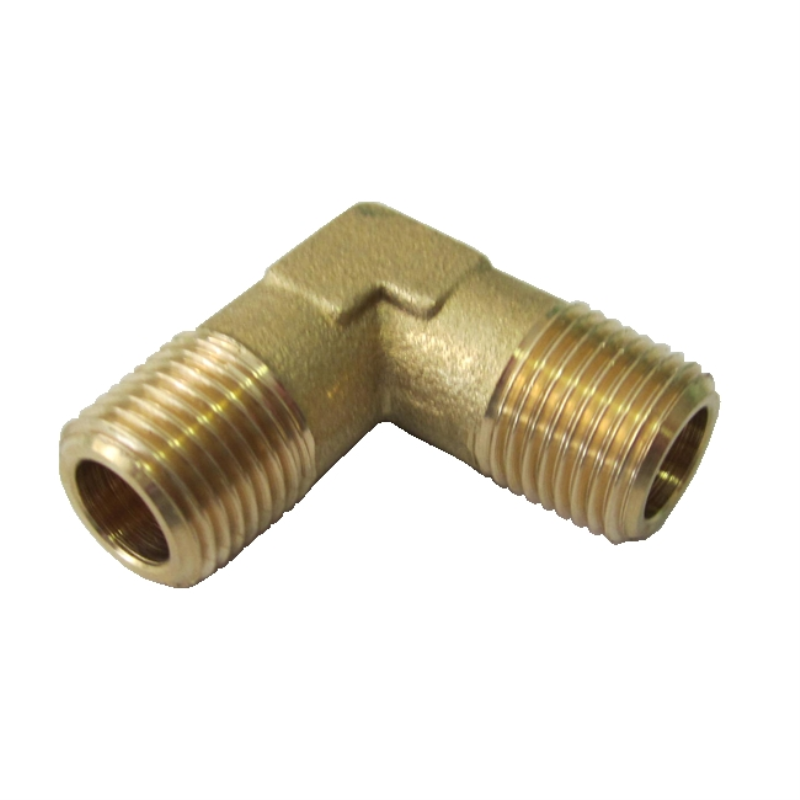

ELBOW M.M. NOT NICKEL PLATED
Cod: D3510

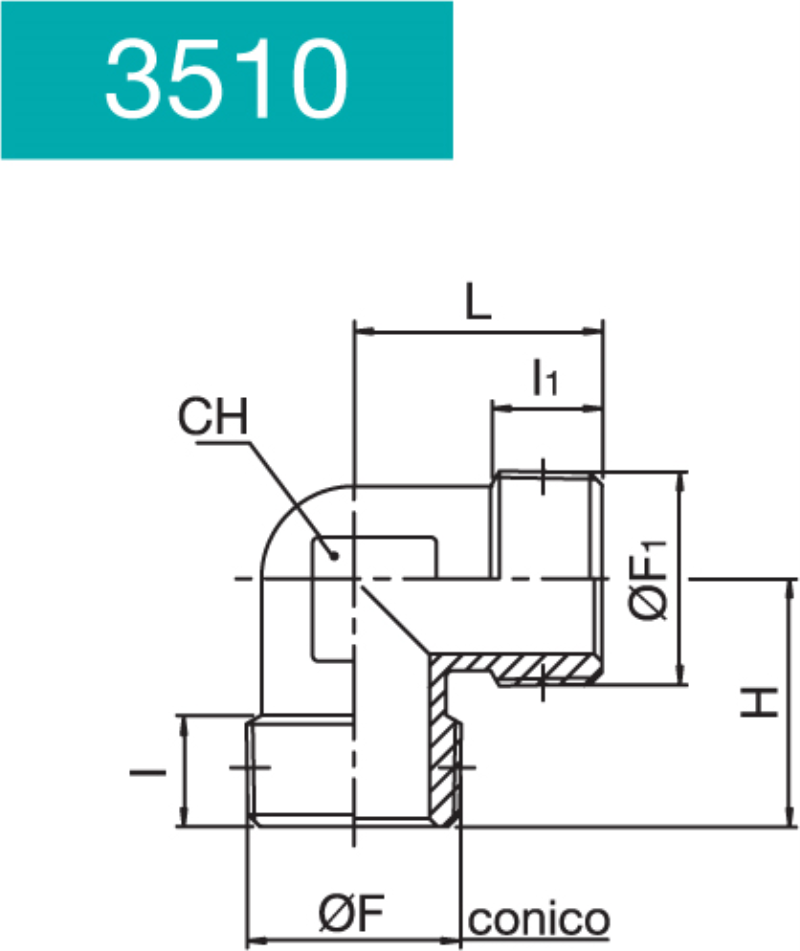

| Article | F | F1 | I | I1 | H | L | CH |
|---|---|---|---|---|---|---|---|
| D35100300 | M5 | M5 | 4 | 4 | 11.5 | 11.5 | 9 |
| D35100800 | 1/8 | 1/8 | 8 | 8 | 18.5 | 18.5 | 10 |
| D35101700 | 1/4 | 1/4 | 11 | 11 | 23.5 | 23.5 | 13 |
| D35102600 | 3/8 | 3/8 | 11.5 | 11.5 | 26 | 26 | 17 |
| D35103500 | 1/2 | 1/2 | 15 | 15 | 31 | 31 | 21 |
| D35104900 | 3/4 | 3/4 | 16 | 16 | 33 | 33 | 25 |
| D35105300 | 1" | 1" | 17.5 | 17.5 | 39 | 39 | 30 |
| D35101800 | 1/4 | 1/8 | 11 | 8 | 21.5 | 18.5 | 10 |
