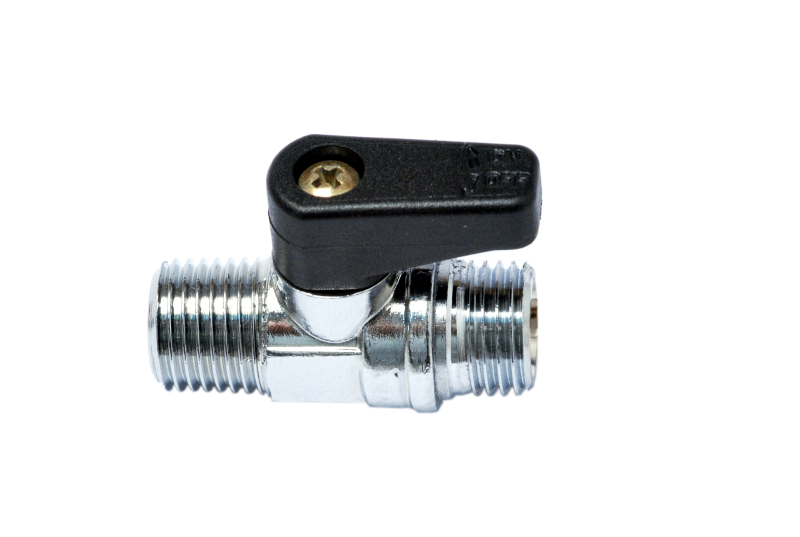

MINI BALL VALVE MALE CONICAL / MALE CYLINDRICAL
Cod: 4030

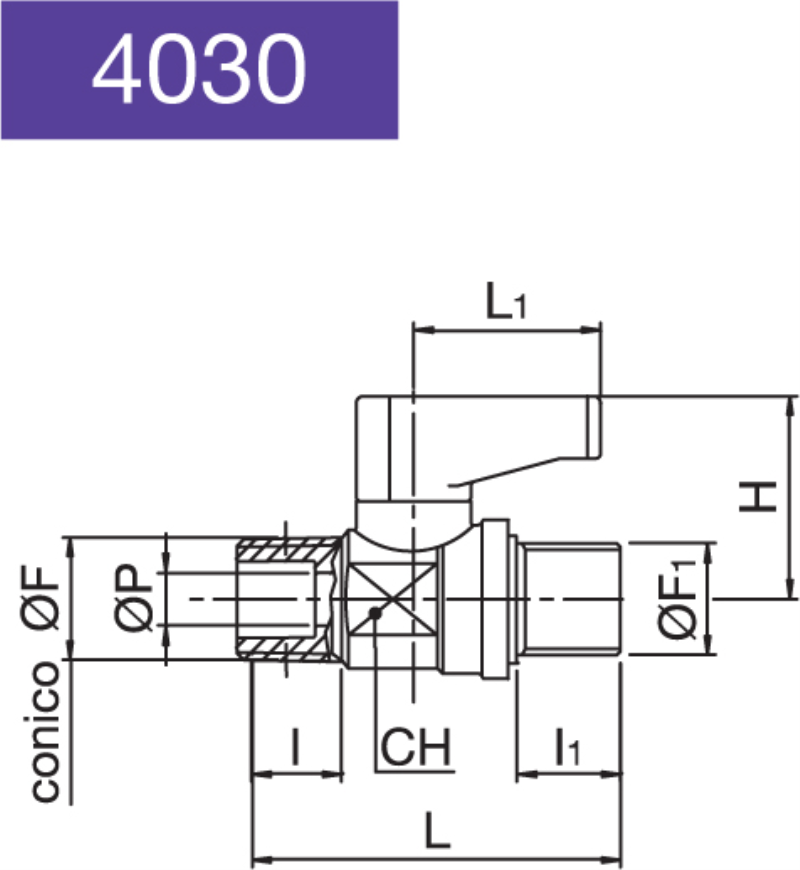

| Article | F | F1 | P | I | I1 | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|---|
| 40300900 | 1/8 | 1/8 | 5.5 | 8 | 7 | 33 | 19.5 | 21.5 | 14 |
| 40301000 | 1/8 | 1/4 | 5.5 | 8 | 7.5 | 33.5 | 19.5 | 21.5 | 14 |
| 40301800 | 1/4 | 1/8 | 5.5 | 11.5 | 7 | 36 | 19.5 | 21.5 | 14 |
| 40301900 | 1/4 | 1/4 | 5.5 | 11.5 | 7.5 | 36.5 | 19.5 | 21.5 | 14 |
| 40302800 | 3/8 | 1/4 | 5.5 | 11.5 | 7.5 | 37 | 19.5 | 21.5 | 14 |
| 40302900 | 3/8 | 3/8 | 8 | 13.5 | 9 | 45.5 | 19.5 | 23 | 18 |
| 40303900 | 1/2 | 1/2 | 10 | 15 | 8.5 | 51 | 26.5 | 33 | 22 |
