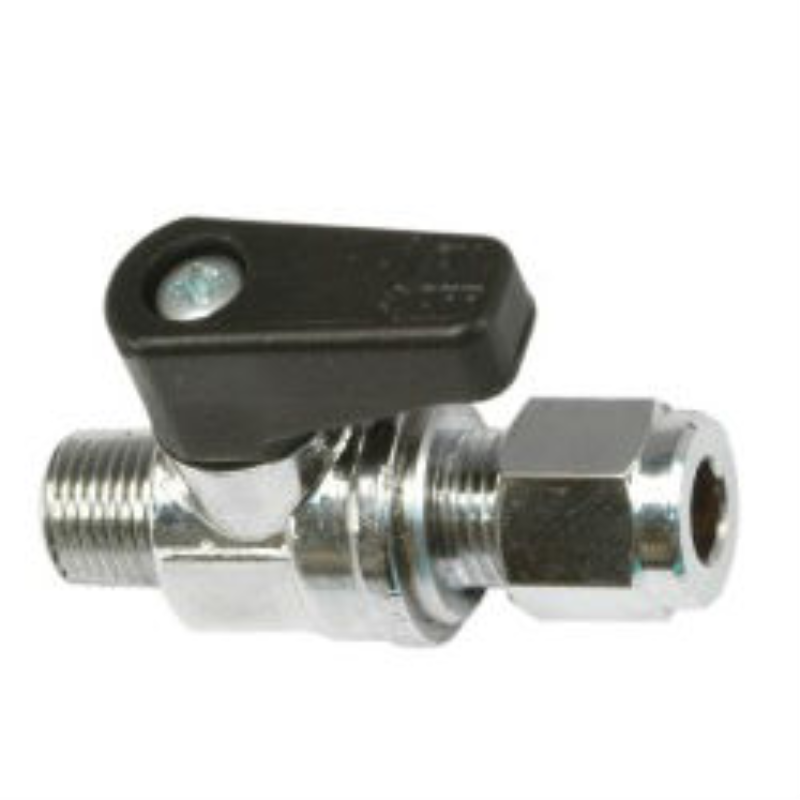

MINI BALL VALVE MALE CONICAL WITH NUT AND OLIVE
Cod: 4050

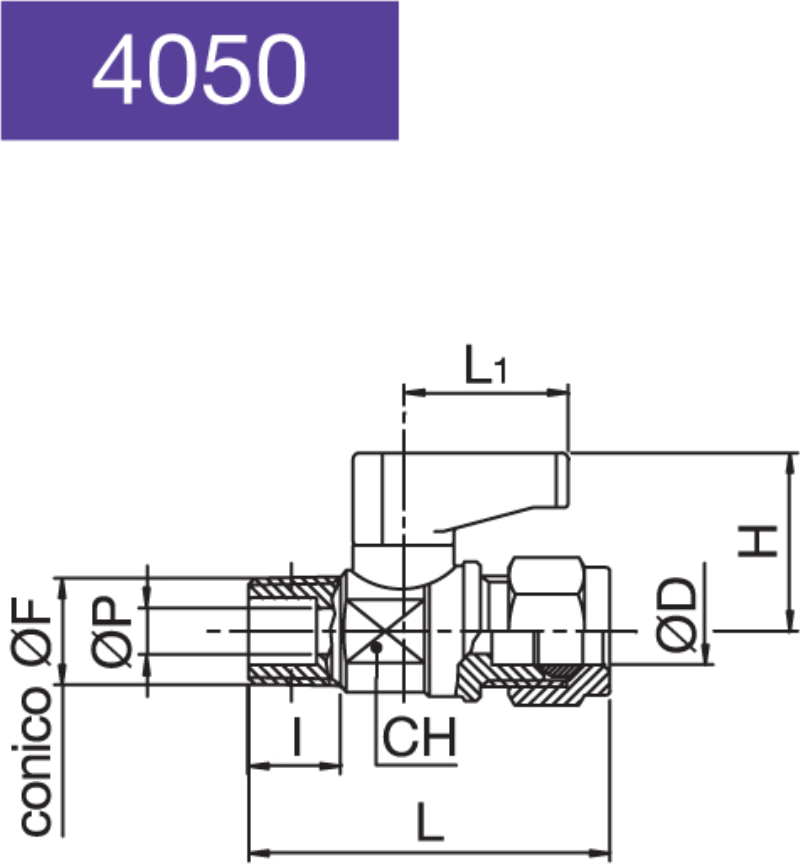

| Article | F | D | P | I | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|
| 40501570 | 1/8 | 6 | 5.5 | 8 | 39 | 19.5 | 21.5 | 14 |
| 40501580 | 1/4 | 6 | 5.5 | 11 | 42 | 19.5 | 21.5 | 14 |
| 40501660 | 1/8 | 8 | 5.5 | 8 | 39 | 19.5 | 21.5 | 14 |
| 40501670 | 1/4 | 8 | 5.5 | 11 | 42 | 19.5 | 21.5 | 14 |
| 40501680 | 3/8 | 8 | 5.5 | 11.5 | 43 | 19.5 | 21.5 | 14 |
