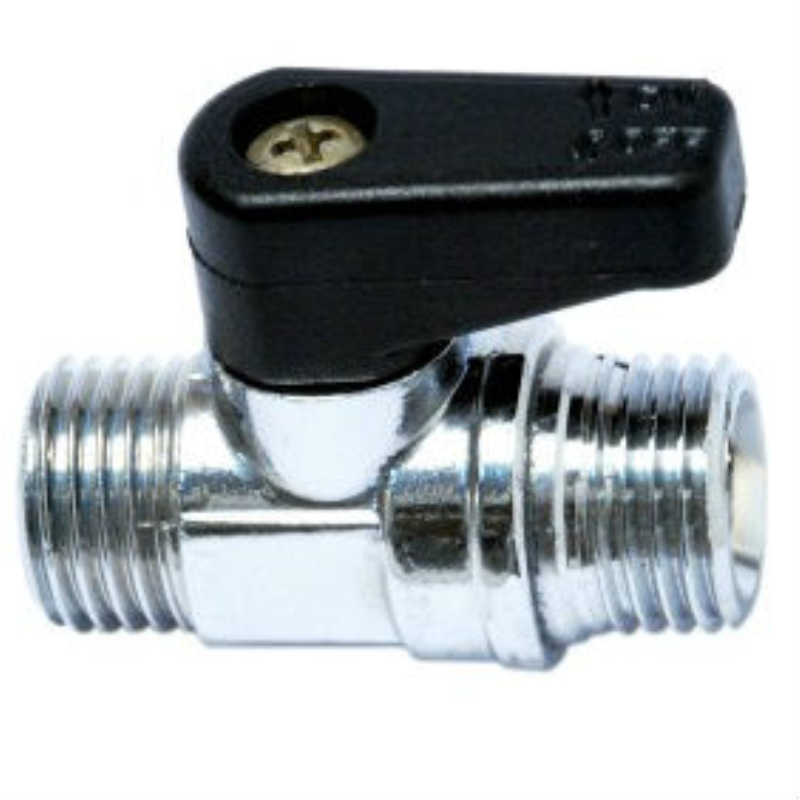

MINI BALL VALVE MALE CYLINDRICAL/MALE CYLINDRICAL
Cod: 4080

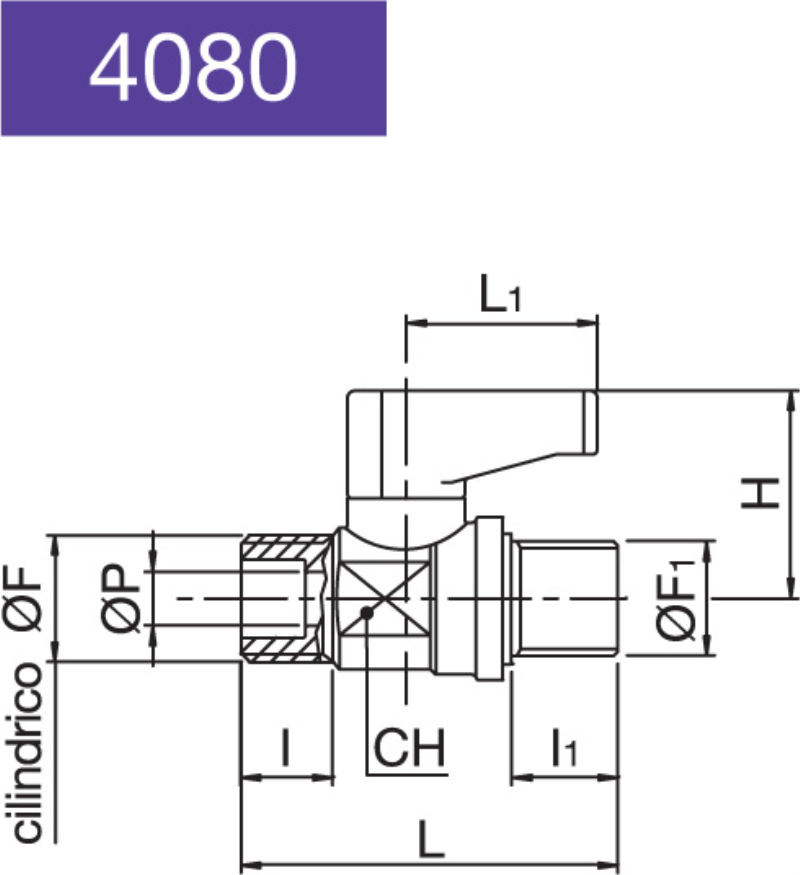

| Article | F | F1 | P | I | I1 | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|---|
| 40800900 | 1/8 | 1/8 | 5.5 | 7 | 7 | 32 | 19.5 | 21.5 | 14 |
| 40801600 | 1/8 | 1/4 | 5.5 | 7 | 8 | 32.5 | 19.5 | 21.5 | 14 |
| 40801900 | 1/4 | 1/4 | 5.5 | 8 | 8 | 33 | 19.5 | 21.5 | 14 |
| 40802800 | 3/8 | 1/4 | 5.5 | 9 | 8 | 34 | 19.5 | 21.5 | 14 |
| 40802900 | 3/8 | 3/8 | 8 | 13.5 | 9 | 45.5 | 19.5 | 23 | 18 |
| 40803900 | 1/2 | 1/2 | 10 | 15 | 8.5 | 51 | 26.5 | 33 | 22 |
