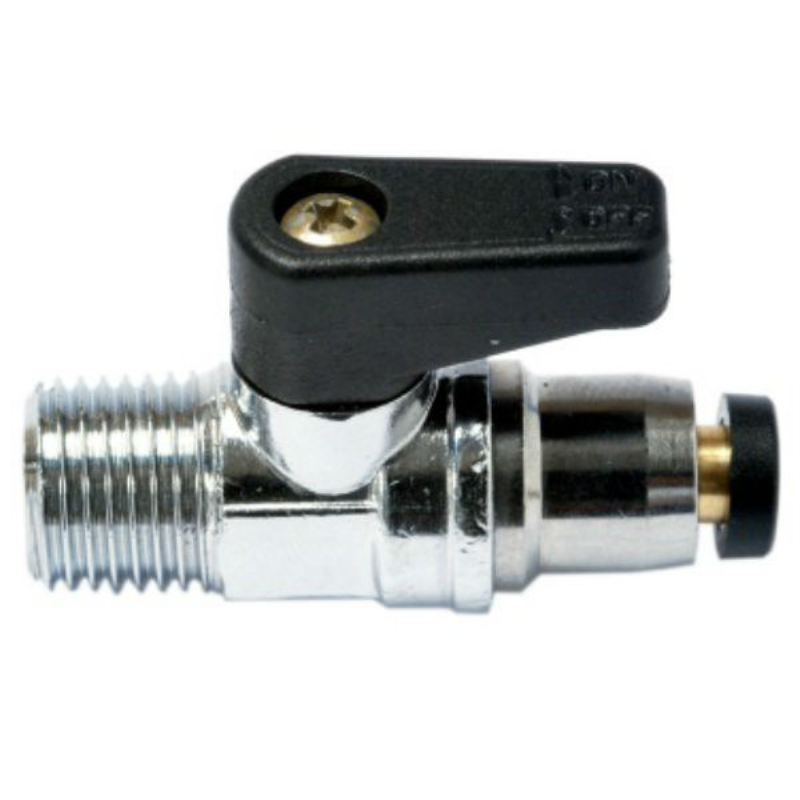

MINI BALL VALVE MALE CONICAL-TUBE
Cod: 4160

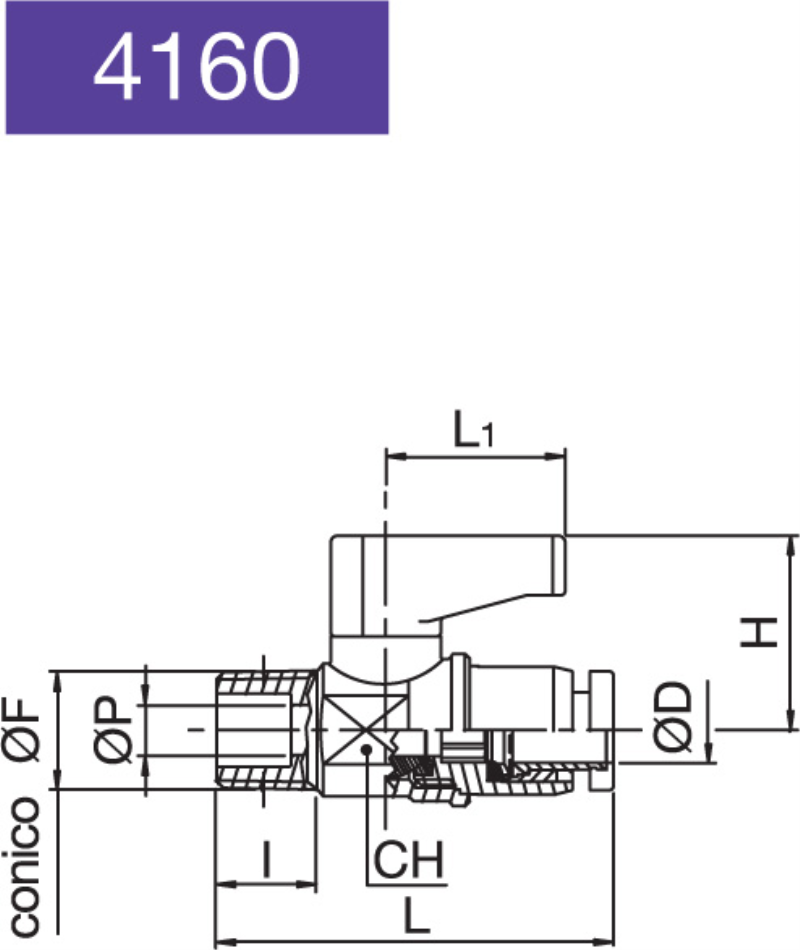

| Article | D | F | P | I | L | L1 | H | CH |
|---|---|---|---|---|---|---|---|---|
| 41601490 | 4 | 1/8 | 5.5 | 8 | 41 | 19.5 | 21.5 | 14 |
| 41601500 | 4 | 1/4 | 5.5 | 11 | 44 | 19.5 | 21.5 | 14 |
| 41601570 | 6 | 1/8 | 5.5 | 8 | 41 | 19.5 | 21.5 | 14 |
| 41601580 | 6 | 1/4 | 5.5 | 11 | 44 | 19.5 | 21.5 | 14 |
| 41601590 | 6 | 3/8 | 5.5 | 11.5 | 44.5 | 19.5 | 21.5 | 14 |
| 41601660 | 8 | 1/8 | 5.5 | 8 | 44.5 | 19.5 | 21.5 | 14 |
| 41601670 | 8 | 1/4 | 5.5 | 11 | 48 | 19.5 | 21.5 | 14 |
| 41601680 | 8 | 3/8 | 5.5 | 11.5 | 49 | 19.5 | 21.5 | 14 |
