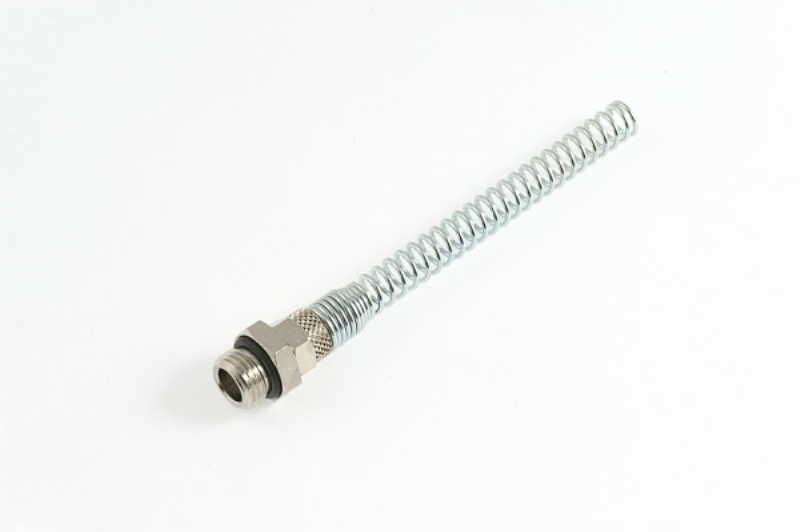

DIRITTO MASCHIO CILINDRICO CON OR E MOLLA
Cod: 2953

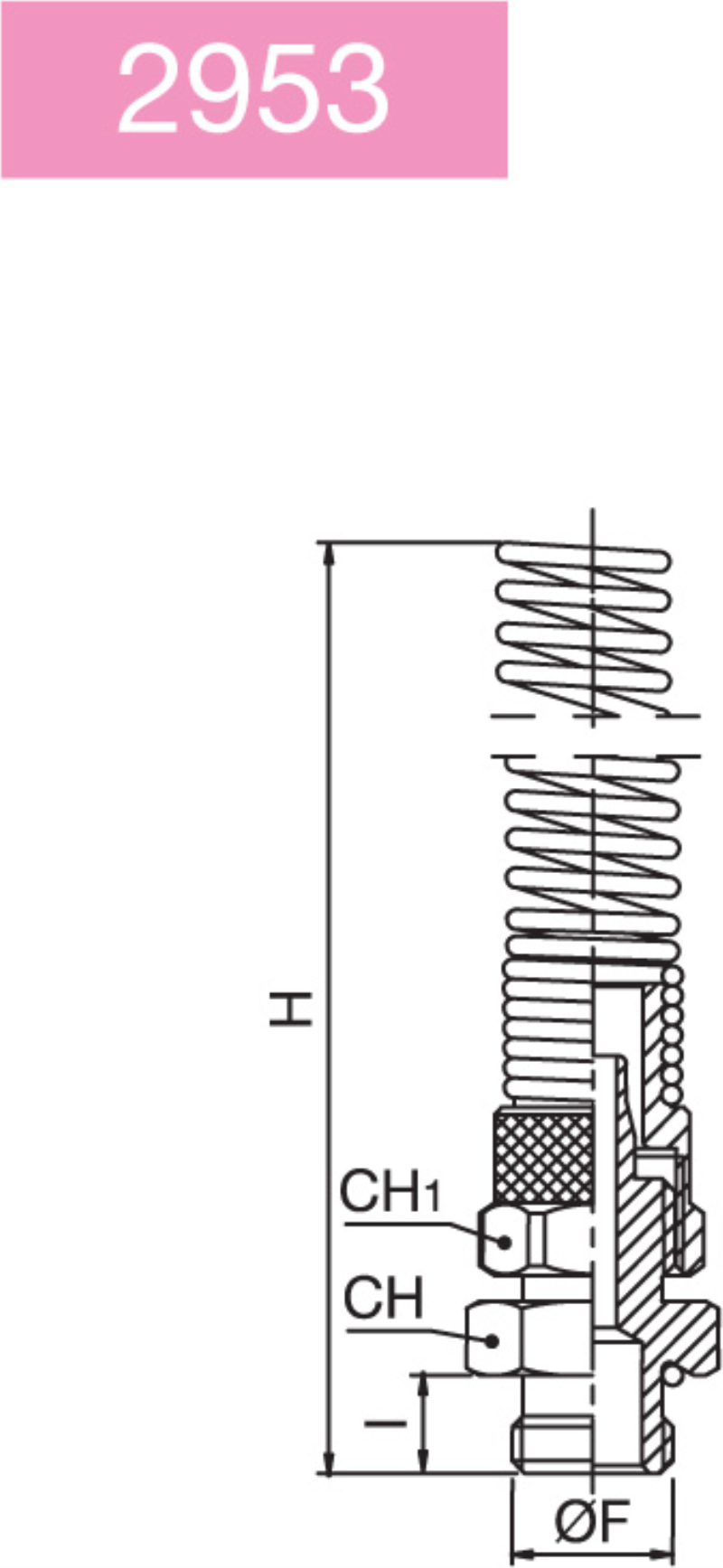

| Articolo | TUBO | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 29531220 | 6/4 | 1/8 | 6 | 110 | 13 | 12 |
| 29531230 | 6/4 | 1/4 | 8 | 111 | 16 | 12 |
| 29531240 | 6/4 | 3/8 | 9 | 112 | 19 | 12 |
| 29535500 | 6/4 | 1/2 | 10 | 113 | 24 | 12 |
| 29531280 | 8/6 | 1/8 | 6,5 | 110 | 14 | 14 |
| 29531290 | 8/6 | 1/4 | 8 | 111 | 16 | 14 |
| 29531300 | 8/6 | 3/8 | 9 | 112 | 19 | 14 |
| 29531310 | 8/6 | 1/2 | 10 | 113 | 24 | 14 |
| 29531340 | 10/8 | 1/8 | 6,5 | 116 | 14 | 16 |
| 29531350 | 10/8 | 1/4 | 8 | 117 | 16 | 16 |
| 29531360 | 10/8 | 3/8 | 9 | 118 | 19 | 16 |
| 29531370 | 10/8 | 1/2 | 10 | 119 | 24 | 16 |
| 29531400 | 12/10 | 3/8 | 9 | 129 | 19 | 18 |
| 29531410 | 12/10 | 1/2 | 10 | 130 | 24 | 18 |
| Temperatura min./max. | -20°C | +100°C |
