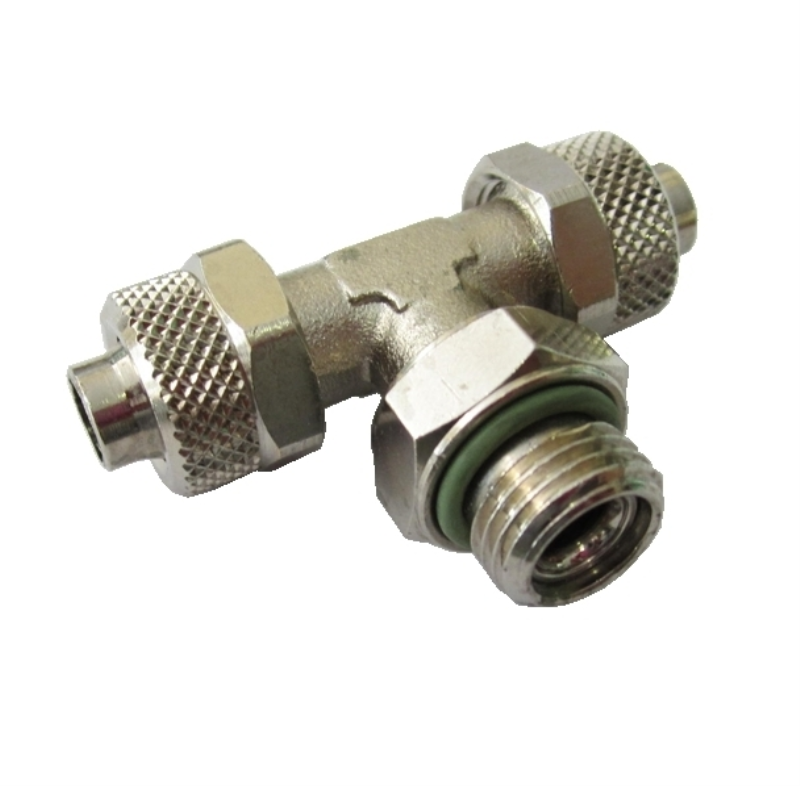

T GIREVOLE MASCHIO CILINDRICO CENTRALE C/OR VITON
Cod: 3141V

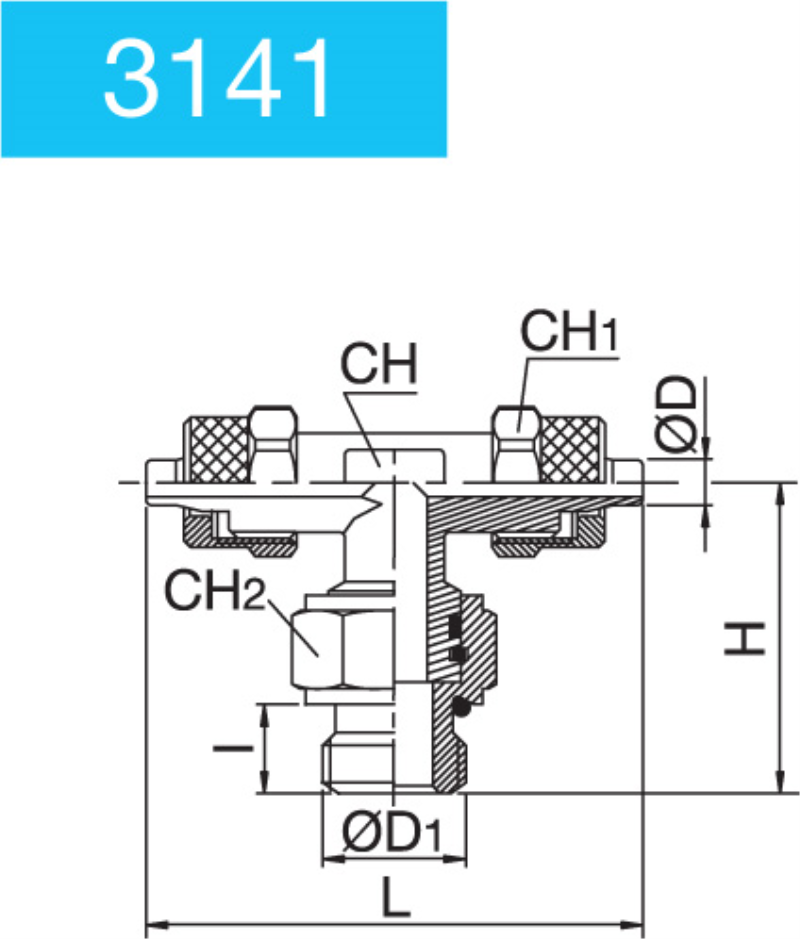

| Articolo | D | D1 | I | H | L | CH | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 31411110V | 4/2.7 | 1/8 | 6.5 | 23 | 40.5 | 8 | 8 | 13 |
| 31411220V | 6/4 | 1/8 | 6.5 | 23 | 45 | 8 | 12 | 13 |
| 31411230V | 6/4 | 1/4 | 8 | 26 | 45.5 | 10 | 12 | 17 |
| 31411280V | 8/6 | 1/8 | 6.5 | 23 | 45.5 | 10 | 14 | 13 |
| 31411290V | 8/6 | 1/4 | 8 | 26 | 45.5 | 10 | 14 | 17 |
| 31411350V | 10/8 | 1/4 | 8 | 27 | 51 | 11 | 16 | 17 |
| Temperatura min./max. | -15°C | +200°C |
