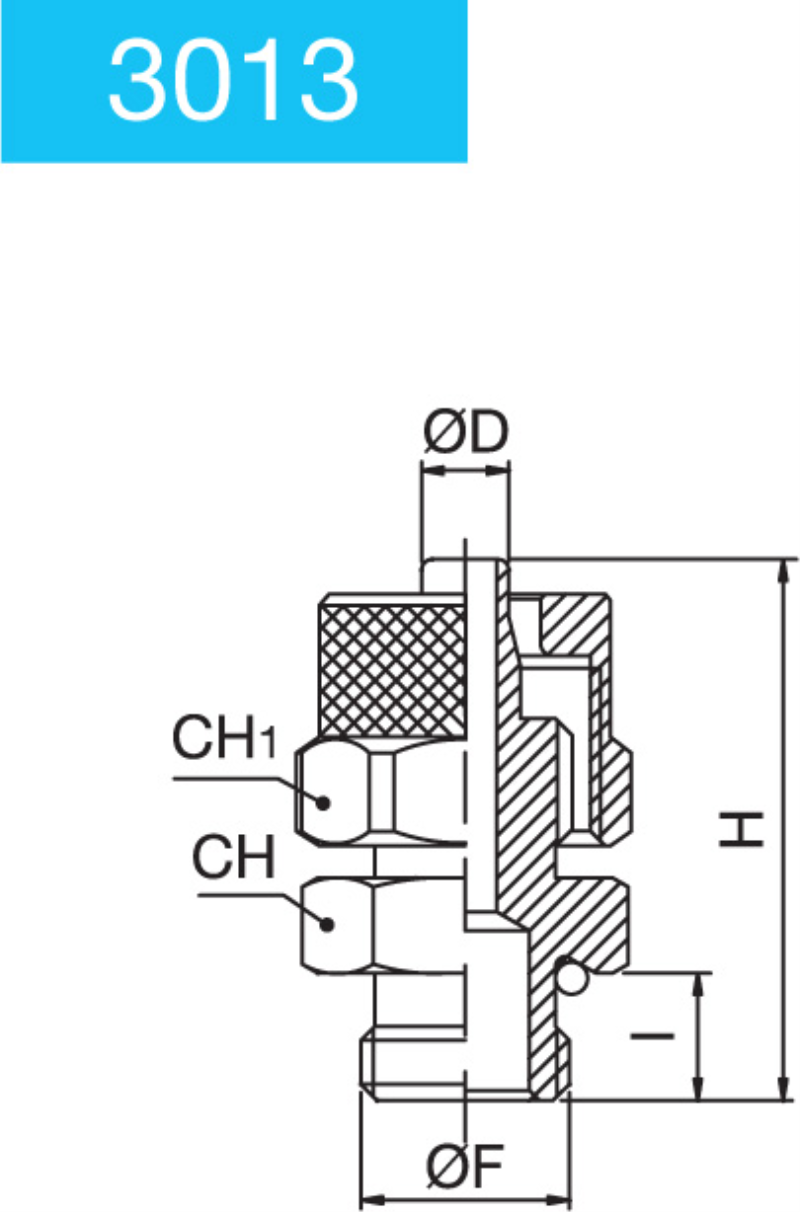

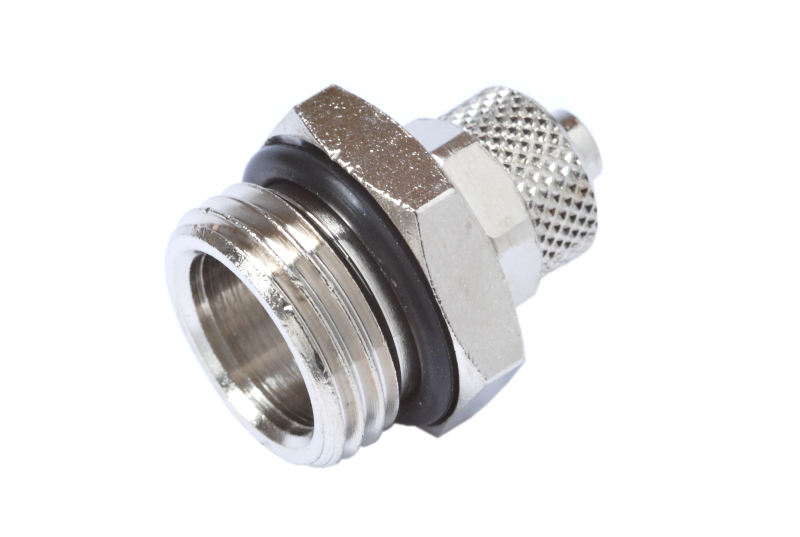

DIRITTO MASCHIO CILINDRICO CON OR
Cod: 3013
| Articolo | D | F | I | H | CH | CH1 |
|---|---|---|---|---|---|---|
| 30131110 | 4/2.7 | 1/8 | 6 | 21.8 | 13 | 8 |
| 30131140 | 5/3 | 1/8 | 6 | 23 | 13 | 8 |
| 30131220 | 6/4 | 1/8 | 6 | 25.5 | 13 | 12 |
| 30131230 | 6/4 | 1/4 | 8 | 28 | 16 | 12 |
| 30131240 | 6/4 | 3/8 | 9 | 29 | 19 | 12 |
| 30131250 | 6/4 | 1/2 | 10 | 30.5 | 24 | 12 |
| 30131280 | 8/6 | 1/8 | 6 | 26 | 14 | 14 |
| 30131290 | 8/6 | 1/4 | 8 | 28 | 16 | 14 |
| 30131300 | 8/6 | 3/8 | 9 | 29 | 19 | 14 |
| 30131310 | 8/6 | 1/2 | 10 | 30.5 | 24 | 14 |
| 30131340 | 10/8 | 1/8 | 6 | 28 | 14 | 16 |
| 30131350 | 10/8 | 1/4 | 8 | 29.5 | 16 | 16 |
| 30131360 | 10/8 | 3/8 | 9 | 30.5 | 19 | 16 |
| 30131370 | 10/8 | 1/2 | 10 | 32 | 24 | 16 |
| 30131400 | 12/10 | 3/8 | 9 | 32 | 19 | 18 |
| 30131410 | 12/10 | 1/2 | 10 | 33.5 | 24 | 18 |
| 30131440 | 15/12.5 | 1/2 | 10 | 35.5 | 24 | 22 |
| Temperatura min./max. | -20°C | +100°C |
