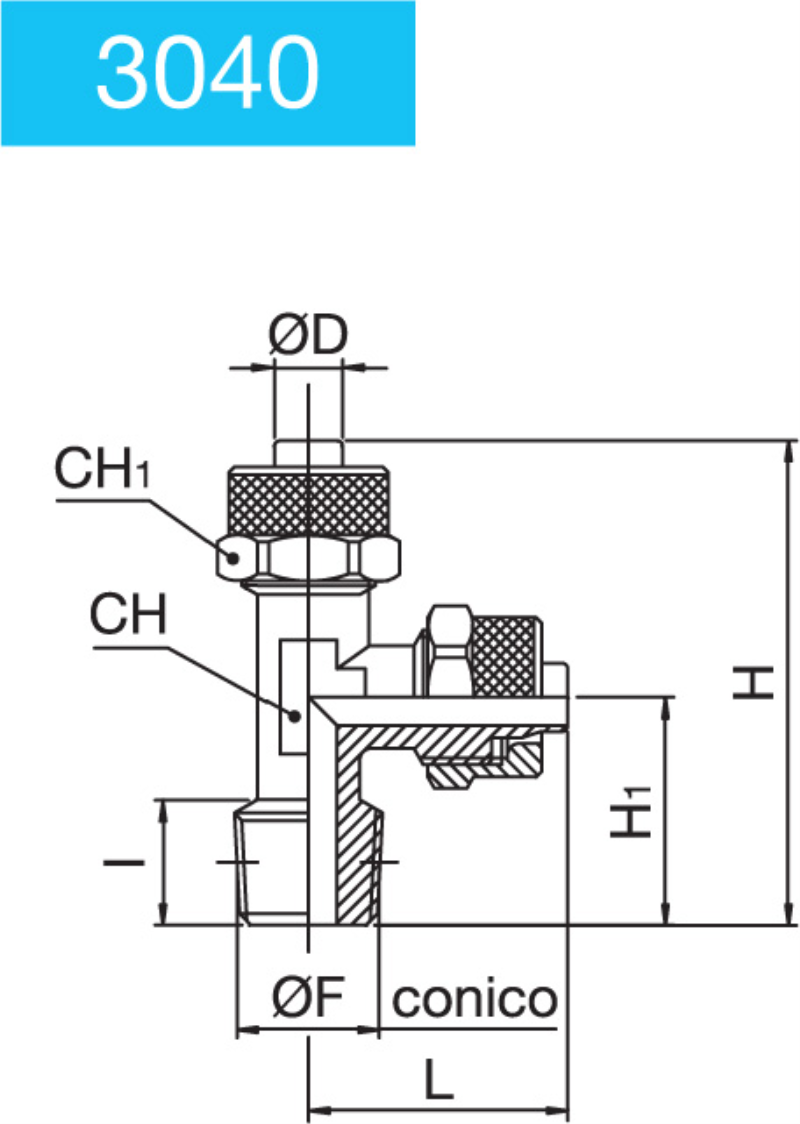

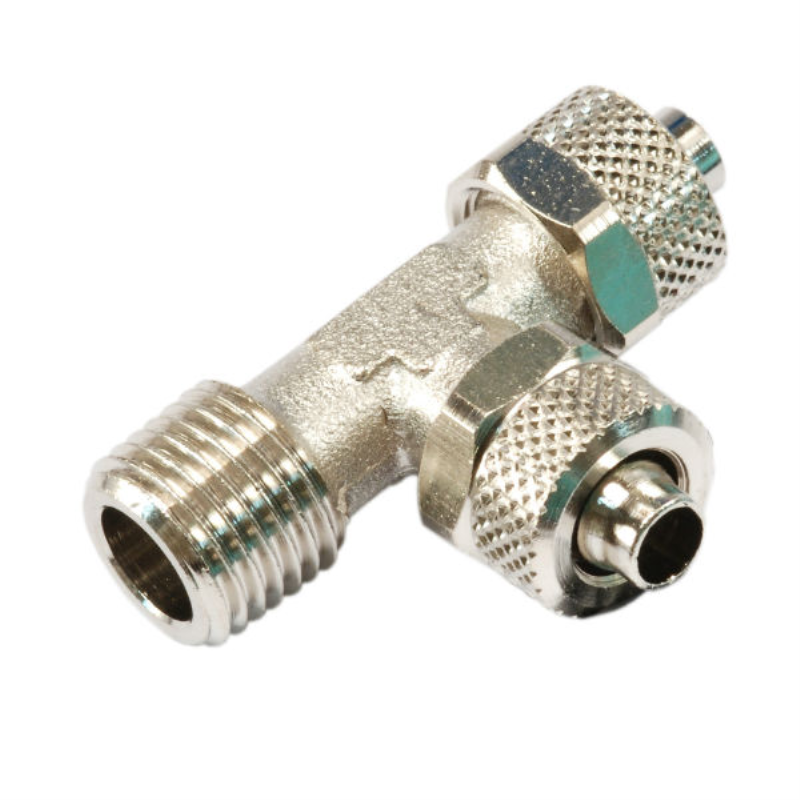

T MASCHIO LATERALE
Cod: 3040
| Articolo | D | F | I | H | H1 | L | CH | CH1 |
|---|---|---|---|---|---|---|---|---|
| 30401110 | 4/2.7 | 1/8 | 8 | 38 | 17 | 21.5 | 8 | 8 |
| 30401120 | 5/3 | M5 | 4 | 36.5 | 15 | 21.5 | 8 | 8 |
| 30401140 | 5/3 | 1/8 | 8 | 38.5 | 17 | 21.5 | 8 | 8 |
| 30401220 | 6/4 | 1/8 | 8 | 39.5 | 17 | 22.5 | 8 | 12 |
| 30401230 | 6/4 | 1/4 | 11 | 43.5 | 20.7 | 22.7 | 10 | 12 |
| 30401240 | 6/4 | 3/8 | 11.5 | 46.5 | 22.5 | 24 | 11 | 12 |
| 30401280 | 8/6 | 1/8 | 8 | 40.5 | 17.7 | 22.7 | 10 | 14 |
| 30401290 | 8/6 | 1/4 | 11 | 43.5 | 20.7 | 22.7 | 10 | 14 |
| 30401300 | 8/6 | 3/8 | 11.5 | 46.5 | 22.5 | 24 | 11 | 14 |
| 30401340 | 10/8 | 1/8 | 8 | 44 | 18.5 | 25.5 | 11 | 16 |
| 30401350 | 10/8 | 1/4 | 11 | 46.5 | 21 | 25.5 | 11 | 16 |
| 30401360 | 10/8 | 3/8 | 11.5 | 48 | 22.5 | 25.5 | 11 | 16 |
| 30401370 | 10/8 | 1/2 | 14 | 56.5 | 28 | 28.5 | 17 | 16 |
| 30401400 | 12/10 | 3/8 | 11.5 | 54.5 | 24.5 | 30 | 14 | 18 |
| 30401410 | 12/10 | 1/2 | 14 | 58.5 | 28 | 30.5 | 17 | 18 |
| 30401440 | 15/12.5 | 1/2 | 14 | 62 | 28 | 34 | 17 | 22 |
