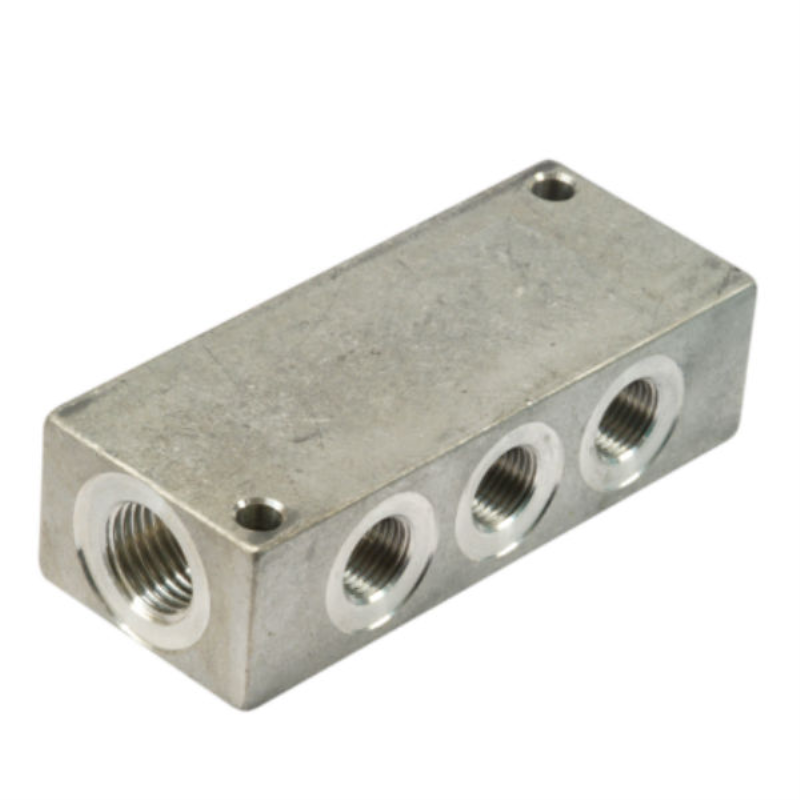

RIPARTITORE ALLUMINIO DOPPIO/CONTRAPPOSTO 3672
Cod: 3672

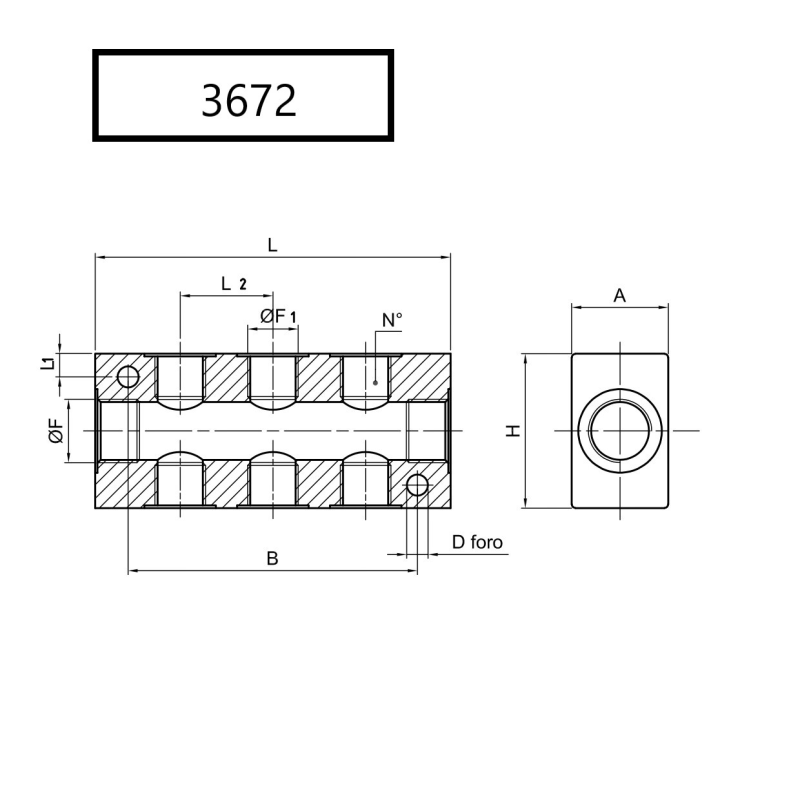

| Articolo | F | F1 | A | H | L1 | L2 | L | N° | D foro | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 36725070 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 54 | 2+2 | 4.5 | 45 |
| 36725080 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 72 | 3+3 | 4.5 | 63 |
| 36725090 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 90 | 4+4 | 4.5 | 81 |
| 36725100 | 1/4 | 1/8 | 20 | 30 | 4.5 | 18 | 108 | 5+5 | 4.5 | 99 |
| 36725210 | 3/8 | 1/4 | 25 | 40 | 6 | 24 | 68 | 2+2 | 5.5 | 51 |
| 36725220 | 3/8 | 1/4 | 25 | 40 | 6 | 24 | 92 | 3+3 | 5.5 | 75 |
| 36725230 | 3/8 | 1/4 | 25 | 40 | 6 | 24 | 116 | 4+4 | 5.5 | 99 |
| 36725240 | 3/8 | 1/4 | 25 | 40 | 6 | 24 | 140 | 5+5 | 5.5 | 123 |
| 36725260 | 1/2 | 1/4 | 30 | 40 | 6 | 25 | 92 | 3+3 | 5.5 | |
| 36725280 | 1/2 | 1/4 | 30 | 40 | 6 | 25 | 185 | 5+5 | 5.5 | |
| 36725510 | 1/2 | 3/8 | 30 | 50 | 6.5 | 26 | 78 | 2+2 | 5.5 | 59 |
| 36725520 | 1/2 | 3/8 | 30 | 50 | 6.5 | 26 | 104 | 3+3 | 5.5 | 85 |
| 36725530 | 1/2 | 3/8 | 30 | 50 | 6.5 | 26 | 130 | 4+4 | 5.5 | 111 |
| 36725540 | 1/2 | 3/8 | 30 | 50 | 6.5 | 26 | 156 | 5+5 | 5.5 | 137 |
| 36725610 | 1/2 | 1/2 | 30 | 50 | 6.5 | 34 | 102 | 2+2 | 5.5 | 83 |
| 36725620 | 1/2 | 1/2 | 30 | 50 | 6.5 | 34 | 136 | 3+3 | 5.5 | 117 |
| 36725630 | 1/2 | 1/2 | 30 | 50 | 6.5 | 34 | 170 | 4+4 | 5.5 | 151 |
| 36725640 | 1/2 | 1/2 | 30 | 50 | 6.5 | 34 | 204 | 5+5 | 5.5 | 185 |
| Temperatura min./max. | -20°C | +130°C | ||||||||
| Pressione | 12 BAR |
