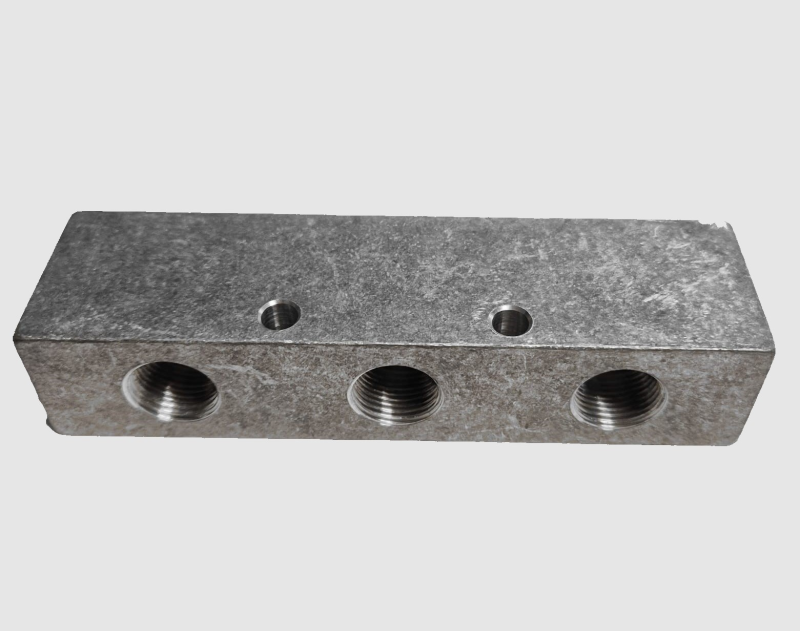

RIPARTITORE ALLUMINIO LUNGO /LINEARE 3673
Cod: 3673

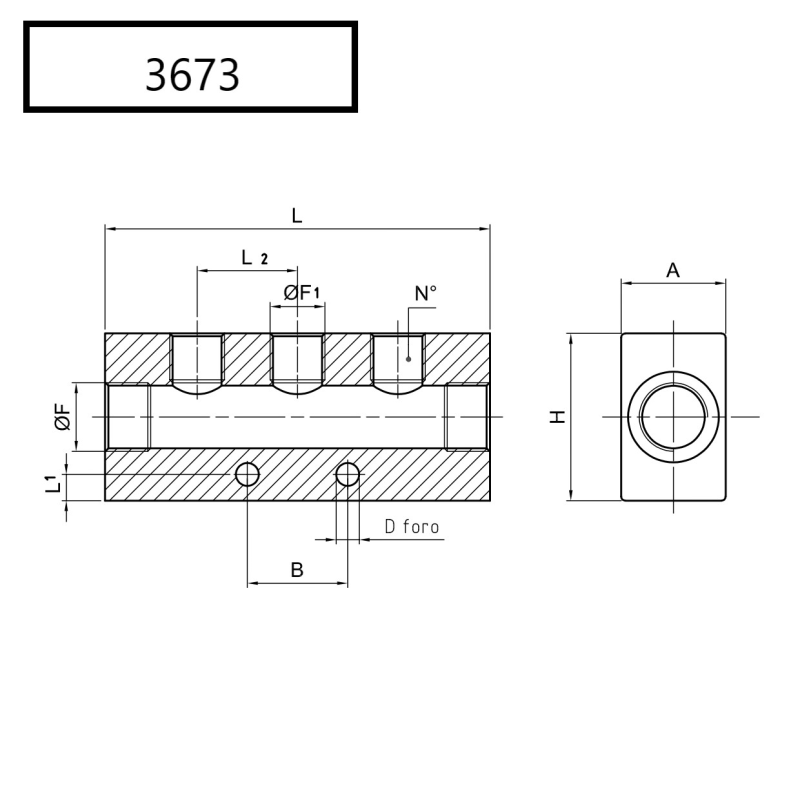

| Articolo | F | F1 | A | H | L1 | L2 | L | N° | D foro | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 36735010 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 60 | 2 | 5.5 | 21 |
| 36735020 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 90 | 3 | 5.5 | 30 |
| 36735030 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 120 | 4 | 5.5 | 60 |
| 36735040 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 150 | 5 | 5.5 | 90 |
| 36735050 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 180 | 6 | 5.5 | 120 |
| 36735210 | 3/8 | 1/4 | 20 | 40 | 6 | 36 | 72 | 2 | 6.5 | 28 |
| 36735220 | 3/8 | 1/4 | 25 | 30 | 6 | 36 | 108 | 3 | 6.5 | 36 |
| 36735230 | 3/8 | 1/4 | 25 | 30 | 6 | 36 | 144 | 4 | 6.5 | 72 |
| 36735240 | 3/8 | 1/4 | 25 | 30 | 6 | 36 | 180 | 5 | 6.5 | 108 |
| 36735510 | 1/2 | 3/8 | 30 | 40 | 6 | 40 | 90 | 2 | 6.5 | 28 |
| 36735520 | 1/2 | 3/8 | 28 | 35 | 6 | 40 | 130 | 3 | 6.5 | 40 |
| 36735530 | 1/2 | 3/8 | 28 | 35 | 6 | 40 | 170 | 4 | 6.5 | 80 |
| 36735540 | 1/2 | 3/8 | 28 | 35 | 6 | 40 | 210 | 5 | 6.5 | 120 |
| 36735550 | 1/2 | 3/8 | 28 | 35 | 6 | 40 | 250 | 6 | 6.5 | 160 |
| Temperatura -20°C +130°C | ||||||||||
| PRESSIONE MAX 12 Bar |
