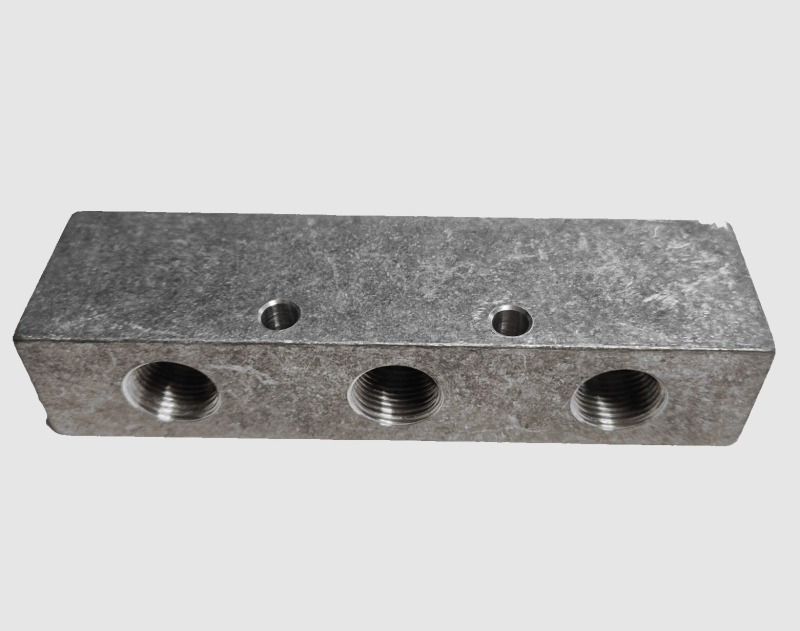

RIPARTITORE ALLUMINIO DOPPIO LUNGO/ CONTRAPPOSTO 3674
Cod: 3674

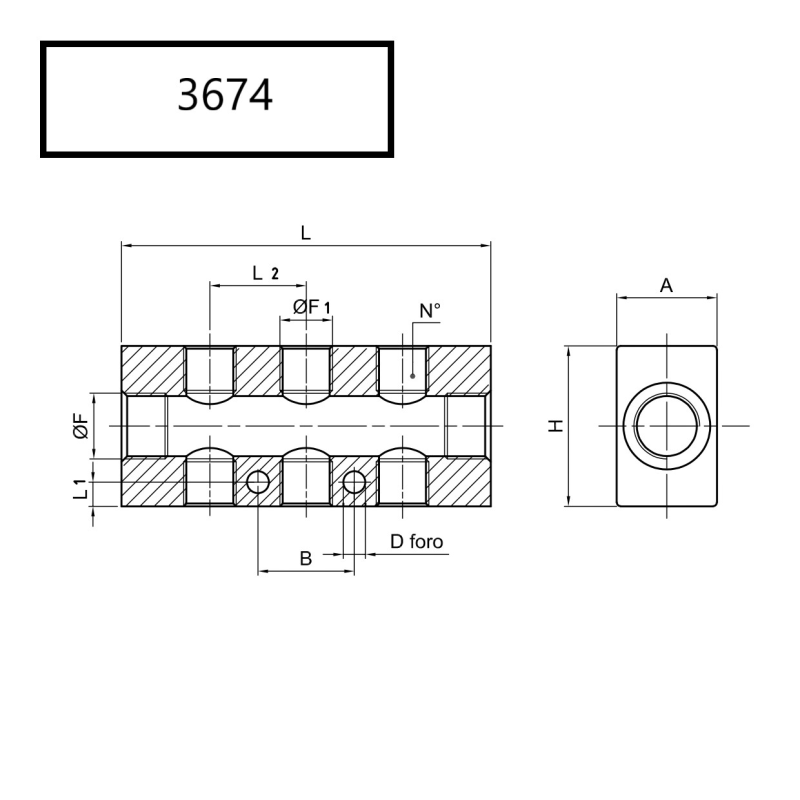

| Articolo | F | F1 | A | H | L1 | L2 | L | N° | D foro | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 36745010 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 60 | 2 | 5.5 | 21 |
| 36745020 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 90 | 3 | 5.5 | 30 |
| 36745030 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 120 | 4 | 5.5 | 60 |
| 36745040 | 1/4 | 1/8 | 20 | 30 | 4.5 | 30 | 150 | 5 | 5.5 | 90 |
| 36745210 | 3/8 | 1/4 | 20 | 40 | 6 | 36 | 72 | 2 | 6.5 | 28 |
| 36745220 | 3/8 | 1/4 | 25 | 40 | 6 | 36 | 108 | 3 | 6.5 | 36 |
| 36745230 | 3/8 | 1/4 | 25 | 40 | 6 | 36 | 144 | 4 | 6.5 | 72 |
| 36745240 | 3/8 | 1/4 | 25 | 40 | 6 | 36 | 180 | 5 | 6.5 | 108 |
| 36745410 | 1/2 | 1/4 | 30 | 40 | 6 | 36 | 80 | 2 | 6.5 | 28 |
| 36745420 | 1/2 | 1/4 | 30 | 40 | 6 | 36 | 116 | 3 | 6.5 | 36 |
| 36745430 | 1/2 | 1/4 | 30 | 40 | 6 | 36 | 152 | 4 | 6.5 | 72 |
| 36745440 | 1/2 | 1/4 | 30 | 40 | 6 | 36 | 188 | 5 | 6.5 | 108 |
| Temperatura -20°C +80°C | ||||||||||
| Pressione 12 Bar |
