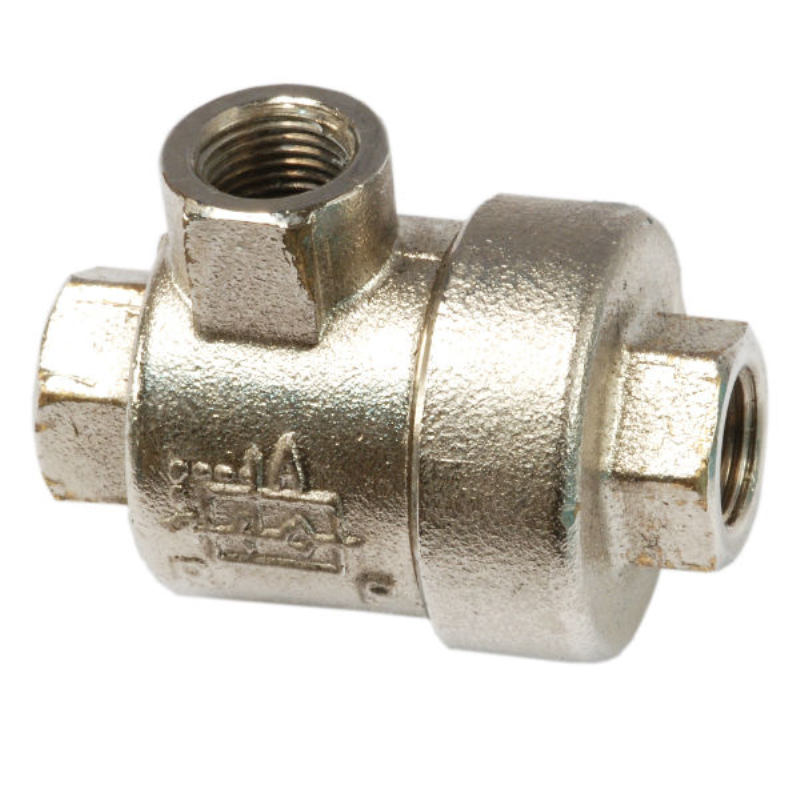

VALVOLA SCARICO RAPIDO CON PASTIGLIA VITON
Cod: 3800V

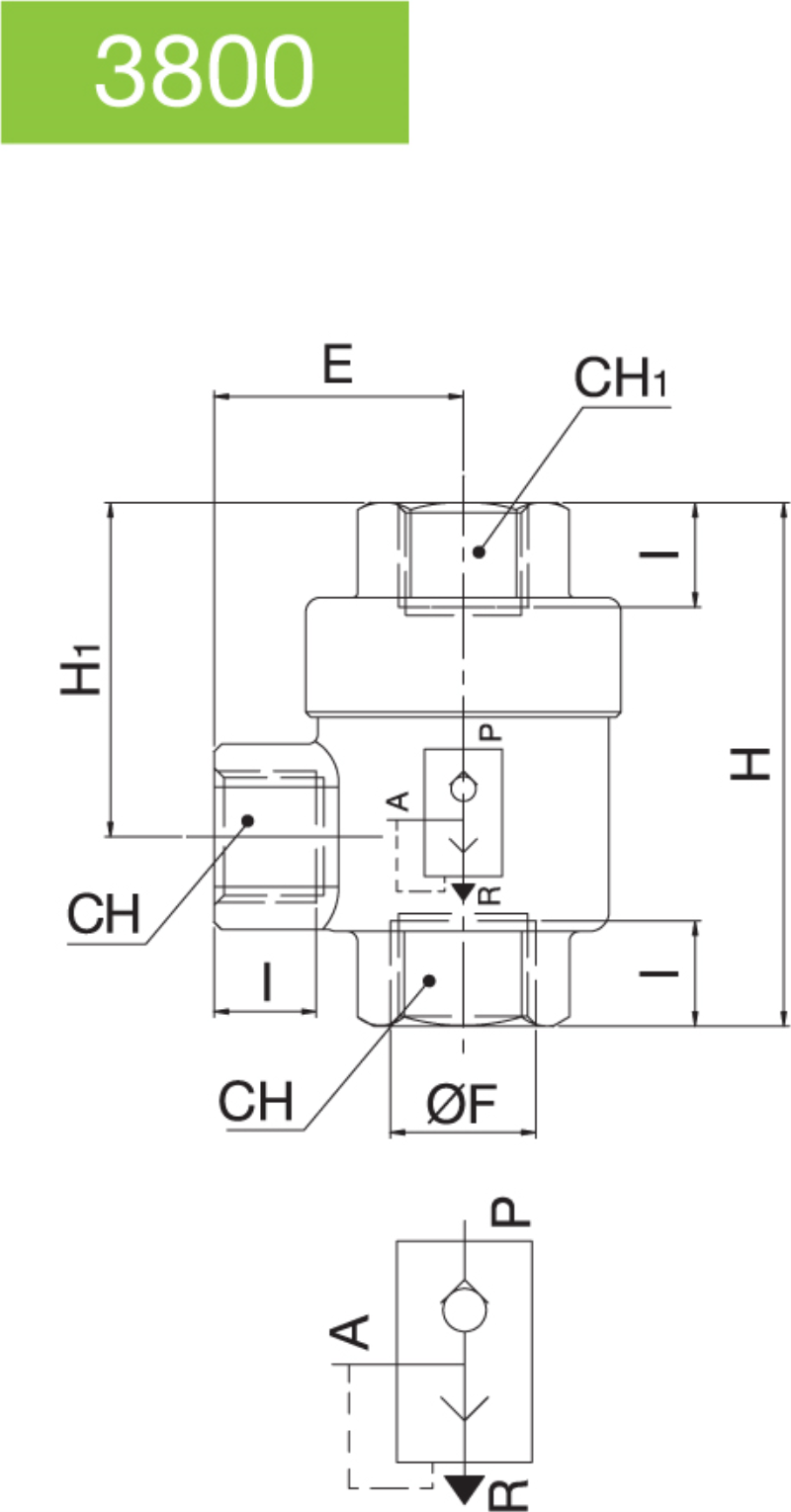

| Articolo | F | I | H | H1 | CH | CH1 | E | PASTIGLIA |
|---|---|---|---|---|---|---|---|---|
| 38000300V | M5 | 4.5 | 25 | 16.5 | 10 | 10 | 10.5 | VITON |
| 38000800V | 1/8 | 8 | 42.5 | 27 | 14 | 14 | 19.5 | VITON |
| 38001700V | 1/4 | 11 | 53 | 34.5 | 19 | 19 | 25 | VITON |
| 38002600V | 3/8 | 12 | 55 | 35.5 | 21 | 21 | 26.5 | VITON |
| 38003500V | 1/2 | 14 | 71.5 | 44.5 | 26 | 26 | 35 | VITON |
| 38004900V | 3/4 | 18 | 88.5 | 54.5 | 32 | 32 | 40 | VITON |
| 38005300V | 1" | 19 | 94 | 57 | 38 | 38 | 42 | VITON |
| Temperatura min./max. | -15°C | +80°C |
