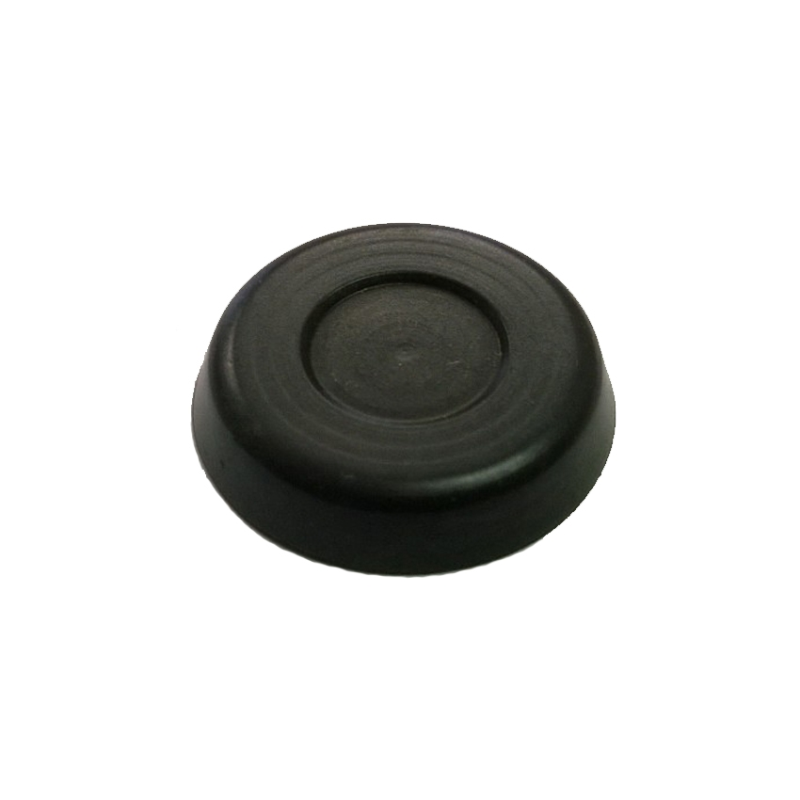

PASTIGLIA V.S.R. 'VITON'
Cod: UR-V

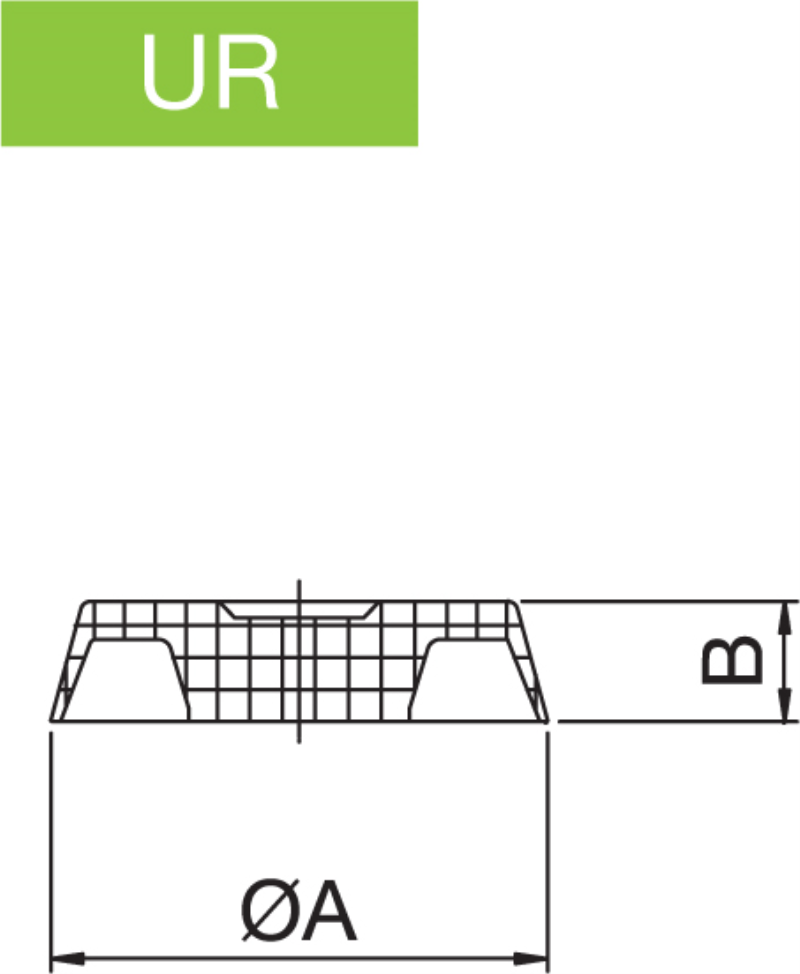

Articolo | - | A | B | MATERIALE |
---|---|---|---|---|
UR05V | M 5 | 13.5 | 4.5 | FKM |
UR08V | 1/8 | 20.5 | 5 | FKM |
UR17V | 1/4-3/8 | 25.5 | 5.8 | FKM |
UR35V | 1/2 | 35.5 | 8.2 | FKM |
UR44V | 3/4-1" | 40 | 9 | FKM |
Temperatura min./max. | -15°C | +200°C |
Cod: UR-V
Articolo | - | A | B | MATERIALE |
---|---|---|---|---|
UR05V | M 5 | 13.5 | 4.5 | FKM |
UR08V | 1/8 | 20.5 | 5 | FKM |
UR17V | 1/4-3/8 | 25.5 | 5.8 | FKM |
UR35V | 1/2 | 35.5 | 8.2 | FKM |
UR44V | 3/4-1" | 40 | 9 | FKM |
Temperatura min./max. | -15°C | +200°C |
