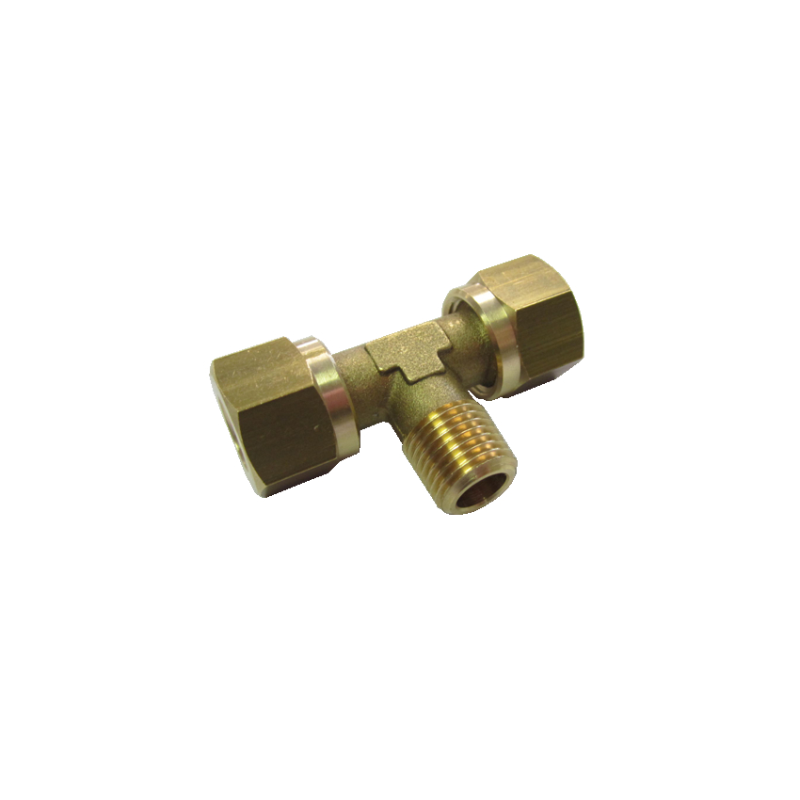

T MALE CONICAL CENTRAL UNIVERSAL
Cod: 2850

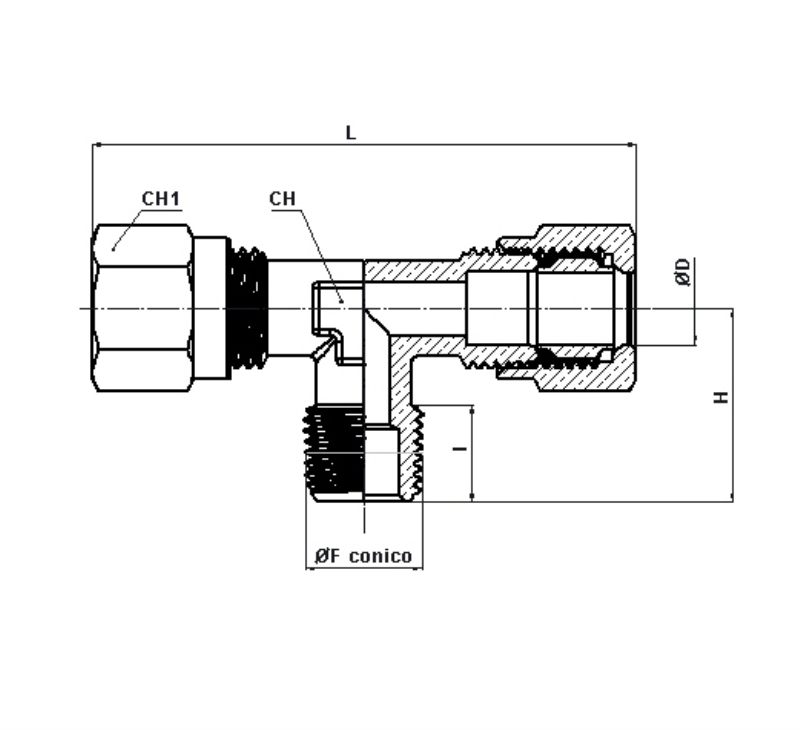

| Article | D | F | I | H | L | CH | CH1 |
|---|---|---|---|---|---|---|---|
| 28501090 | 4 | 1/8 | 8 | 16 | 42 | 9 | 10 |
| 28501220 | 6 | 1/8 | 8 | 16 | 46 | 9 | 12 |
| 28501230 | 6 | 1/4 | 11 | 20 | 48 | 11 | 12 |
| 28501280 | 8 | 1/8 | 8 | 17 | 48 | 11 | 14 |
| 28501290 | 8 | 1/4 | 11 | 20 | 48 | 11 | 14 |
| 28501300 | 8 | 3/8 | 11.5 | 24 | 54 | 13 | 14 |
| 28501350 | 10 | 1/4 | 11 | 23.5 | 64 | 13 | 19 |
| 28501360 | 10 | 3/8 | 11.5 | 24 | 64 | 13 | 19 |
| 28501400 | 12 | 3/8 | 11.5 | 25.5 | 69 | 15 | 22 |
| 28501410 | 12 | 1/2 | 14 | 28.5 | 69 | 15 | 22 |
| 28501420 | 14 | 1/2 | 14 | 30 | 76 | 17 | 24 |
| 28501430 | 15 | 1/2 | 14 | 30 | 76 | 17 | 24 |
| 28501450 | 16 | 1/2 | 14 | 31.5 | 79 | 19 | 27 |
| 28501470 | 18 | 1/2 | 14 | 34 | 88 | 22 | 30 |
